Connections

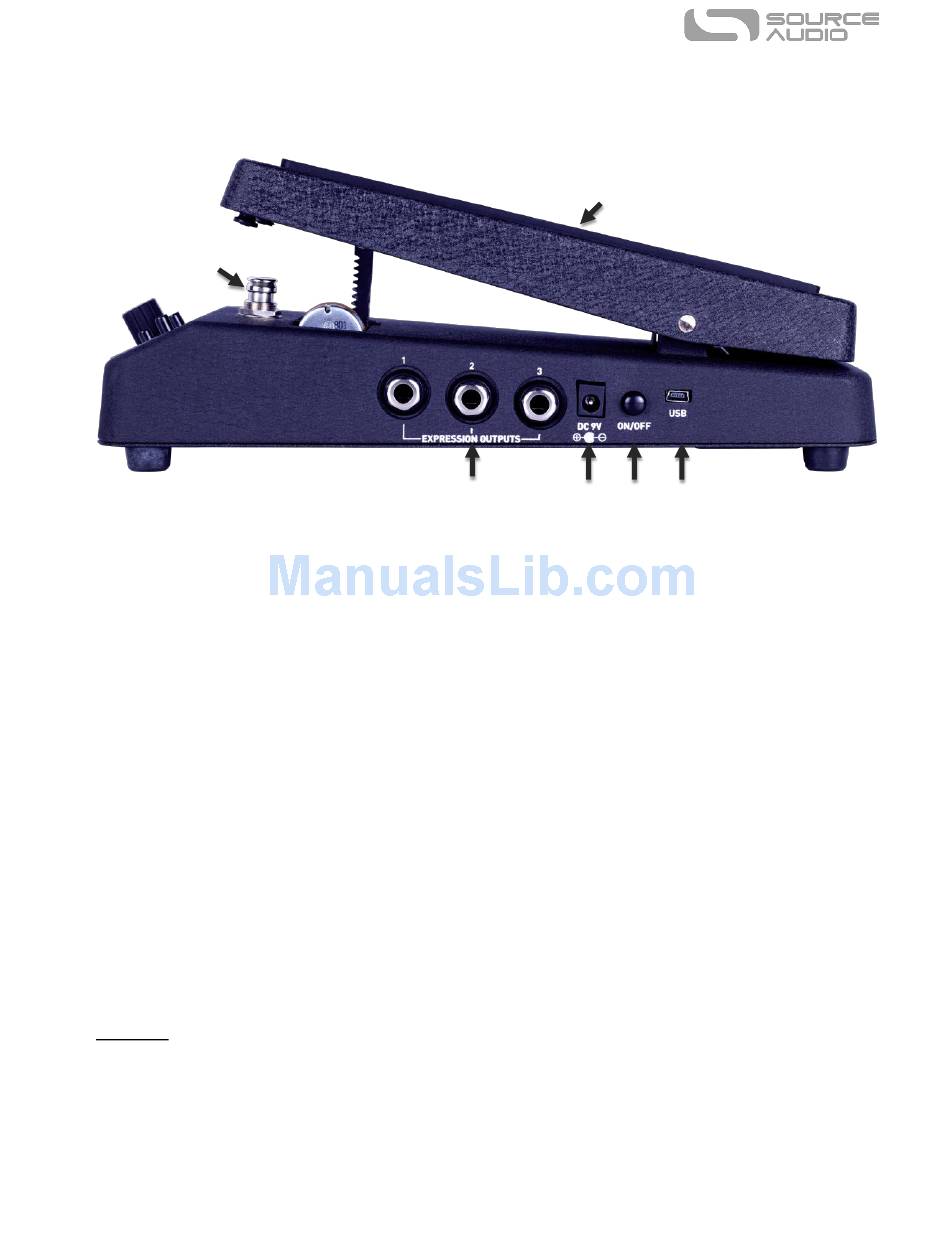

Left Side Connections
Footswitch
Expression Output 1
Passive 10 kΩ expression output. By default, the ring contact is power, the sleeve contact is ground,
and the tip contact is ground. Can also act as an active control voltage (CV) output ranging from 0V to
5V. The plug configuration can be modified using the dip switches on the bottom of the pedal.
Expression Output 2
Passive 10 kΩ expression output. By default, the ring contact is power, the sleeve contact is ground,
and the tip contact is ground. Can also act as an active control voltage (CV) output ranging from 0V to
5V. The plug configuration can be modified using the dip switches on the bottom of the pedal.
Expression Output 3
Passive 50 kΩ expression output. By default, the ring contact is power, the sleeve contact is ground,
and the tip contact is ground. Can also act as an active control voltage (CV) output ranging from 0V to
5V. The plug configuration can be modified using the dip switches on the bottom of the pedal.
DC 9V (Power)
Standard barrel connector designed to accept a regulated 9V DC power supply. The tip of the
connector is negative and the sleeve is positive. The power supply must be able to source at least 45
mA. The Reflex can be powered either by an external DC power supply, by a 9V battery, or directly by
the USB port.
Warning: Using a non-Source Audio supply, especially an unregulated supply, could damage the unit.
Please be very cautious when using 3
On/Off Switch
Turns the Reflex on or off. This is useful to conserve the battery when the Reflex is not in use.
SA163
Expression Outputs Power
rd
-party power supplies.
Reflex User's Guide
Treadle
On/Off USB Connector
Jack Button
