Normal Un-Mute Mode
In normal un-mute mode, when the outputs are muted and the footswitch is clicked a second time,
the expression outputs will become active and immediately jump to their expected values based on
the position of the treadle.
Mute Restart Mode
In Mute Restart Mode, when the outputs are muted and the footswitch is clicked a second time, the
LED display will change from
expression outputs have not yet been activated. The final step required to un-mute the outputs is to
return the treadle to its minimum position. Once this has been done, the LED display will show the
value of the currently selected parameter, expression outputs will activate, and any expression
outputs with an LFO shape will restart.
Calibrating the Range of Motion
In order to get proper operation over the desired range of motion of the treadle, it may be necessary
to perform a calibration. The calibration is a global setting that applies to all outputs for all presets.
To perform a calibration, follow these steps:
1. Reach in with your finger and press and hold the footswitch for about 2 or 3 seconds until
the LED display shows
2. Move the treadle over the desired range of motion you would like to use. Note that it is
possible to create "dead zones" if desired, by only using a limited range of motion. This is
shown in the image below.
3. Reach in with your finger and press the footswitch again to complete the calibration.
NOTE: Using your foot to activate the footswitch during calibration may lead to incorrect results.
Therefore, we recommend that you use your finger to activate the footswitch during calibration.

Preset Storage and Recall

The Reflex can store 128 presets. These presets contain all of the data related to the shapes and
parameter settings of all 7 expression outputs.
Saving a Preset
To save the Reflex's current configuration to a preset, follow these steps:
1. Press the Save button once. The LED display will begin to blink and show a number between
1 and 128. This number represents the preset location where the configuration will be saved.
2. Use the Control Knob to scroll through the numbers and select a preset location.
SA163
to . This signifies that the Reflex is ready to un-mute, but the
.

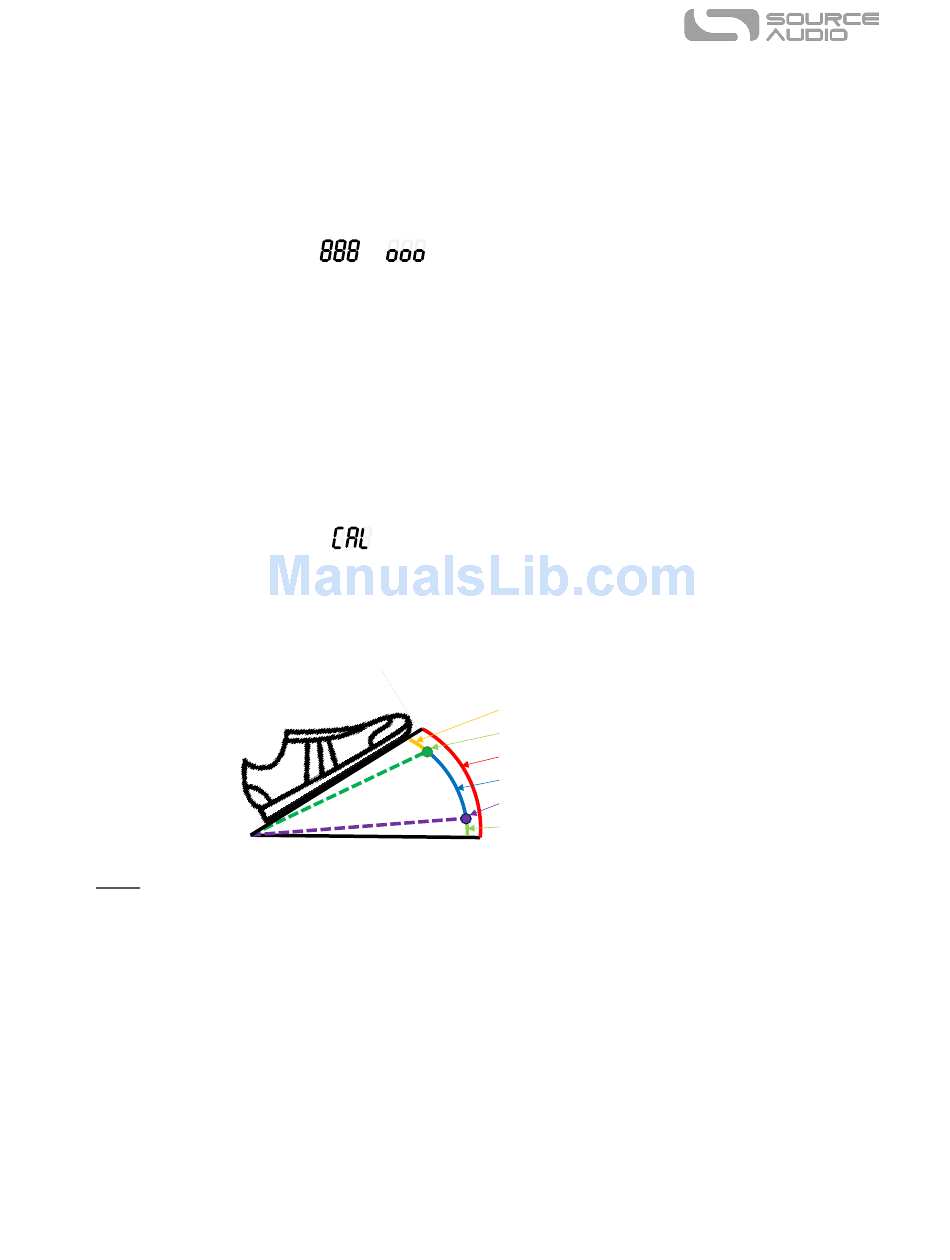

Upper dead zone
Maximum calibrated point
Full range of motion
Calibrated range of motion
Minimum calibrated point
Lower dead zone
Reflex User's Guide 20
