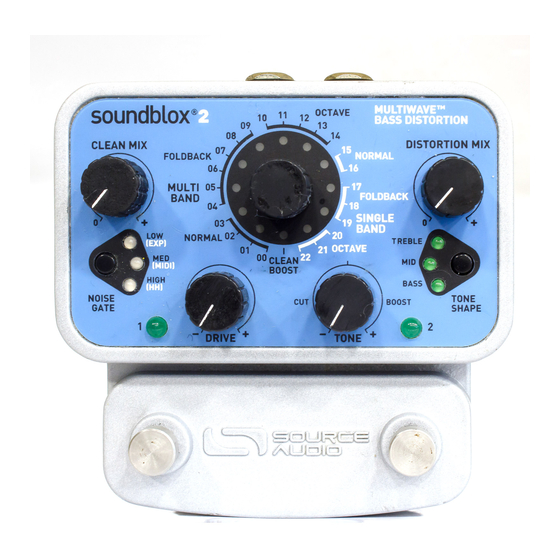

Source Audio Soundblox 2 User Manual

Multiwave bass distortion
Hide thumbs Also See for Soundblox 2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
MULTIWAVE BASS DISTORTION
USER'S GUIDE
SA221

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Soundblox 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Source Audio Soundblox 2

Summary of Contents for Source Audio Soundblox 2

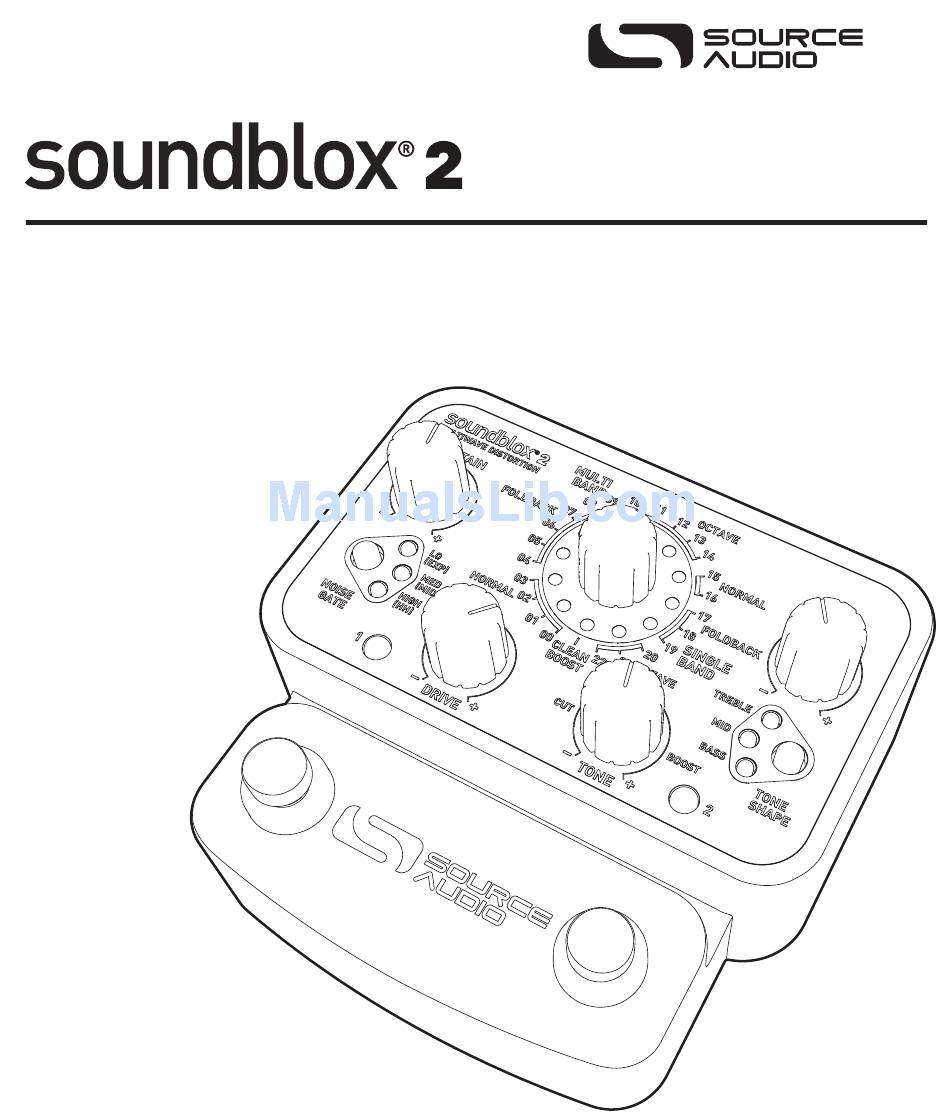

  • Page 1 MULTIWAVE BASS DISTORTION USER’S GUIDE SA221...
  • Page 2 The Soundblox 2 version of the Multiwave Bass Distortion brings a new compact physical format and many new and useful features designed for easy on-stage use. Like all Soundblox effects pedals, the Soundblox 2 Multiwave Bass Distortion is also “Hot Hand Ready”.

  • Page 3: User Presets

    OVERVIEW DIVERSE SOUND PALETTE Featuring 23 varieties of our unique distortion algorithms with an added CLEAN BOOST mode. MULTIBAND PROCESSING Signal is split into multiple bands and distorted individually for unprec- edented sound clarity. STATE-OF-THE-ART DSP Our proprietary 56-bit Digital Signal Processor, the SA601, and crystal clear 24-bit converters.

  • Page 4: Quick Start

    To power the unit, connect the included DC adapter power supply to the 9V DC jack on the back panel. Note: Using a non-Source Audio power supply could damage the unit. Please be very cautious when using a 3rd party supply.
  • Page 5 3. BRIEF KNOB, FOOTSWITCH, AND BUTTON DESCRIPTIONS (see Controls section for more details) CLEAN MIX: adjusts the amount of clean signal in the final output mix. • DISTORTION MIX: adjusts the amount of distorted signal in the final • output mix. DRIVE: the amount of distortion gain applied to the signal.

  • Page 6: Theory Of Operation

    THEORY OF OPERATION The Soundblox 2 Multiwave Bass Distortion provides some unique distortion sounds. In creating this effects pedal, we didn’t intend to duplicate, model, or emulate any existing types of distortion. The types of algorithms we use to create the distortion are quite different from the standard set although with certain settings the results can sound similar.
  • Page 7 The shapes of the distortion curves are also different from standard distortions. Normally, as the input signal voltage rises, the output voltage also rises, but begins to level off and finally pins (or clips) at a maximum value. With a foldback curve, for large enough values of the input, the out- put will begin to decrease.
  • Page 8 MULTI-FUNCTION IN (optional): The multi-function input is a flexible control input for use with external controllers. It can accept digital or analog signals which allows the Soundblox 2 Multiwave Bass to interface with the following accessories: SA110/SA115 Hot Hand Wireless Adapter •...
  • Page 9 CONTROLS: KNOBS EFFECT (not labeled) The effect knob selects which distortion type will be used. There are 23 effect positions (0 through 22) around the knob as well as a setting for CLEAN BOOST. In the CLEAN BOOST mode, the distortion effect is bypassed but the output knob and tone controls still apply.
  • Page 10 CLEAN MIX The CLEAN MIX knob controls the amount of dry, unaffected signal going to the output. The clean signal used in this control does NOT have any TONE control applied. This control is especially useful for get- ting back some of the low end frequencies that can be lost in the pure distorted signal.
  • Page 11 BOOST TONE Note: Since the Soundblox 2 Multiwave Bass preset values can differ from the physical knob positions, it can be useful to determine the positions of the preset knob values. To do this, start with the pedal in bypass and set all of the knobs to the full counter-clockwise position.

  • Page 12: Controls: Buttons

    Since distortion effects can have very high signal gain, the background noise and hum are also gained up and can become undesirably loud. Enabling the noise gate on the Soundblox 2 Multiwave Bass will help si- lence the background noise when the bass is not being played. There are 4 levels for the noise gate threshold: OFF (all LEDs off), LOW, MED, HIGH.
  • Page 13 CONTROLS: FOOTSWITCHES There are two footswitches on the Soundblox 2 Multiwave Bass Distortion. The left footswitch corresponds to preset 1 and the right footswitch cor- responds to preset 2. Pressing either of the footswitches will engage the respective preset. Pressing the same footswitch again will put the effect back into bypass mode.

  • Page 14: Effect Types

    EFFECT TYPES Here are some brief descriptions of the effects included in the Soundblox 2 Multiwave Bass Distortion. The EFFECT knob settings are split into two major categories: MULTI BAND and SINGLE BAND. The MULTI BAND settings use the band splitting discussed in the features section and the SINGLE BAND settings do not.
  • Page 15 MULTI BAND: FOLDBACK 4–9 The use of foldback in these settings creates more extreme distortion sounds. The higher numbered effects have more foldback creating even more distortion. MULTI BAND: OCTAVE 10–14 Settings 10 and 11 give the purest octave effect. Settings 12 through 14 also have foldback and can get pretty strange.

  • Page 16: External Control

    EXTERNAL CONTROL One of the new Core Features of the Soundblox 2 line of effects pedals is the addition of the Multi-Function Input. The Multi-Function input is an intelligent control input that can accept both digital and analog control signals. The Multi-Function input replaces the Sensor Input on previous Soundblox pedals.

  • Page 17: Control Assign

    Press the NOISE GATE button again while holding the TONE SHAPE button to resume normal Noise Gate adjustments CONTROL ASSIGN Both the expression pedal and hot hand inputs are by default mapped to control the morph parameter. This effectively allows the control of any parameter since the morph is between two distinct preset effect settings.
  • Page 18 MORPHING The Multi-Function control input can be used to morph between the two presets. For example, let’s say preset 1 is saved as a Multiband normal setting and preset 2 is a Multiband octave setting. By connecting an SA161 Expression Pedal, you can fade from the preset 1 Multiband normal sound into the octave effect saved in Preset 2 by rocking the expression pedal from heel to toe.

  • Page 19: Midi Control

    MIDI program change messages. The Hub also receives MIDI clock or continuous controller (CC) messages. For more information on using your Soundblox 2 pedals with MIDI, and for MIDI mappings, please visit our website at www.sourceaudio.net External Control | 19...
  • Page 20 Hot Hand unit and use them to control either the Morph or whichever parameter has been assigned. The Soundblox 2 Multiwave Bass Distortion can also be calibrated to change the midpoint of the Hot Hand control range. To do this, follow the calibration procedure below.

  • Page 21: Universal Bypass

    By default, the Soundblox 2 Multiwave is set to use the relay-based true bypass. To switch to buffered bypass press and hold the right footswitch when powering up the pedal. Continue to hold the footswitch until the footswitch LED blink slowly 3 times.

  • Page 22: Specifications

    SPECIFICATIONS Dimensions Audio Performance • L: 4.5 inches • Maximum input level: 2.0 Vrms (+6 dBV) • W: 4.5 inches • Input impedance: 1 MOhm • H: 2.25 inches (including knobs) • Output impedance: 1 kOhm • 115dB DNR audio path Weight •...

  • Page 23: Limited Warranty

    Source Audio. Source Audio reserves the right to update any unit returned for repair and to change or to improve the design of the product at any time without notice. Source Audio reserves the right to use reconditioned parts and assemblies as warranty replace- ments for authorized repairs.
  • Page 24 WARRANTY INFORMATION Source Audio may, at its option, require proof of the original purchase date in the form of a dated copy of original authorized dealer’s invoice or sales receipt. Service and repairs of Source Audio products are to be performed only at the Source Audio factory or a Source Audio authorized service center.
