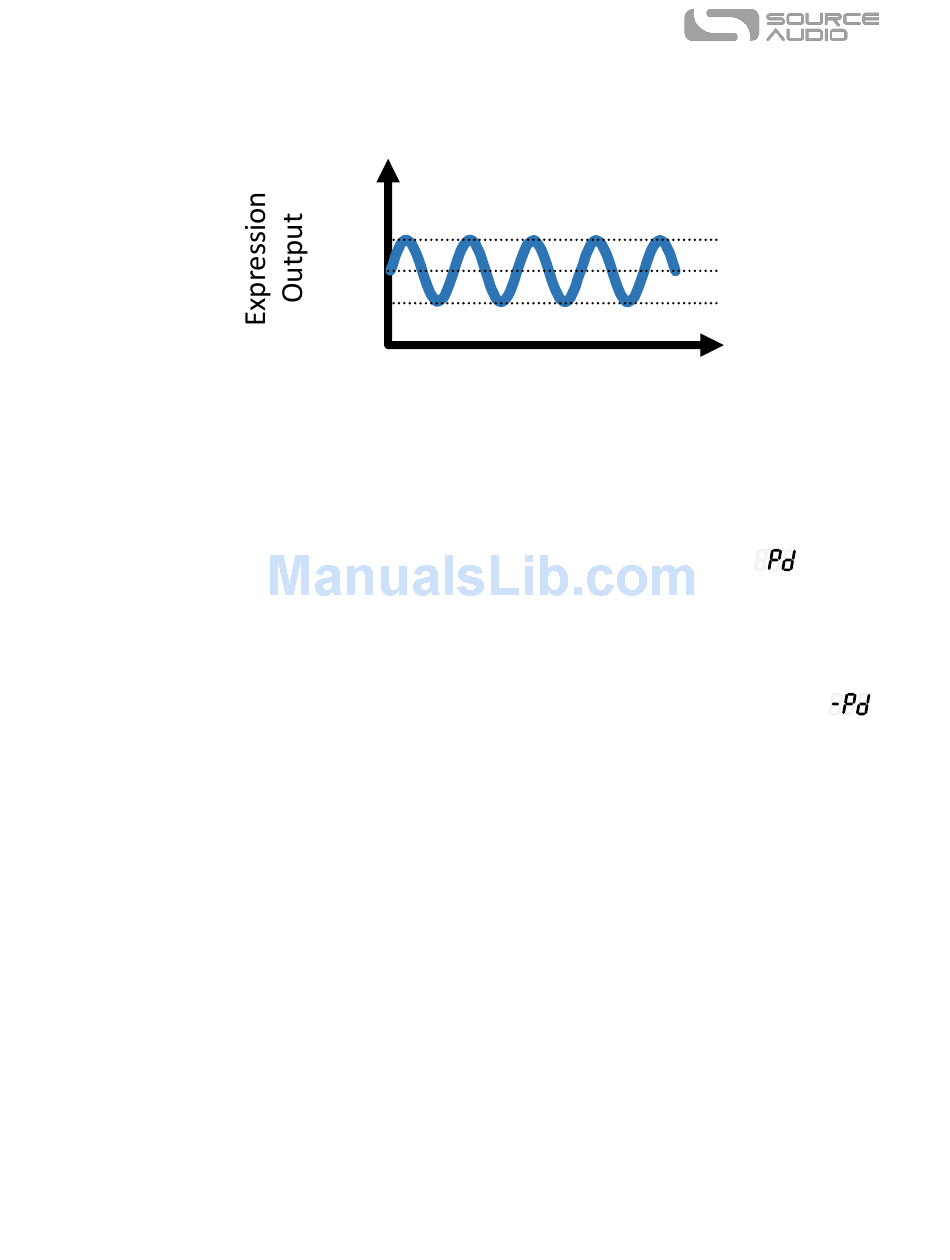

If the depth is set to an intermediate value, then the LFO range is reduced. For example, at a depth of
30, the output will be centered at 64 and range from 34 to 94.
Controlling LFO Depth with the Treadle
The LFO depth can be controlled directly by the treadle position in LFO Pedal Depth Mode or
Inverted LFO Pedal Depth mode.
LFO Pedal Depth Mode
To use LFO Pedal Depth Mode, increase the Depth parameter until the display shows
mode, the LFO depth will be zero when the treadle is in the heel down position, and the depth will
increase linearly with the treadle position until it reaches maximum depth (64) when the treadle is in
the toe down position.
Inverted LFO Pedal Depth Mode
To use Inverted LFO Pedal Depth Mode, decrease the Depth parameter until the display shows
In this mode, the LFO depth will be zero when the treadle is in the heel down position, and the depth
will increase linearly with the treadle position until it reaches maximum depth (-64) when the treadle
is in the toe down position. Since the depth is inverted in this mode, LFO wave shapes will be
inverted. For example, the sawtooth LFO will be a falling sawtooth instead of a rising sawtooth
shape.
User Shape
The User Shape is reserved for future use.
