Sensor Output Plug Configuration
The Sensor Output was designed to work directly with Source Audio's One Series products as well as
Soundblox 2 products. It accepts a 3.5mm (1/8") jack with 4 conductors (TRRS). The plug
configuration, shown in the following figure, is standard across Source Audio products and cannot be
changed.
Battery Compartment
The bottom panel of the Reflex contains a battery compartment that accepts a standard 9V battery.
Adjusting Treadle Resistance

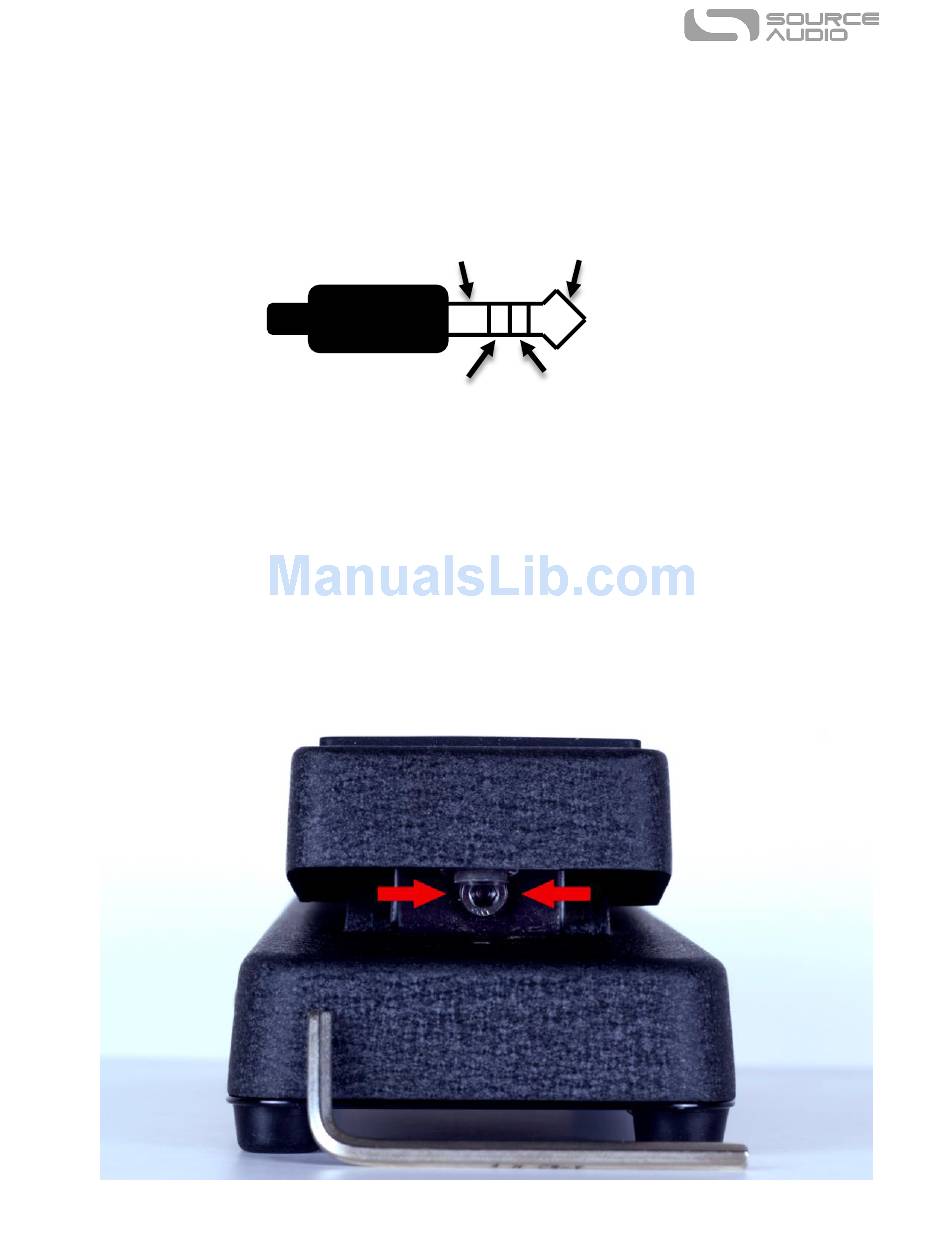

The friction, or resistance to motion, of the treadle can be adjusted. There is a small screw under the
heel of the treadle that accepts a hex wrench. Insert the hex wrench and tighten clockwise to
increase the resistance, or loosen counterclockwise to reduce the resistance. The screw is indicated
by red arrows in the image below.
SA163
Ground
No
Expression
Signal
Out
Reflex User's Guide
Power
