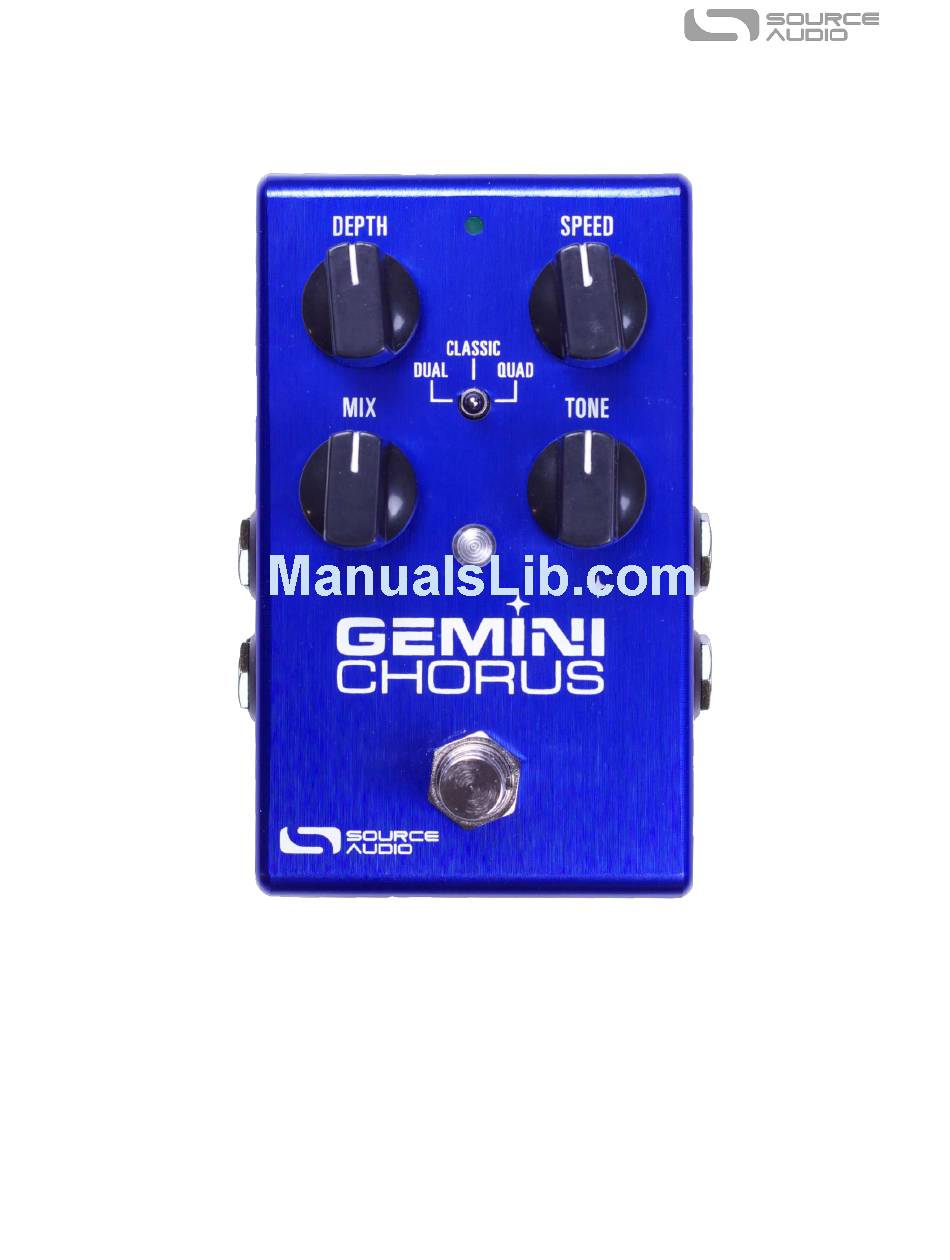

Gemini Chorus User's Guide

Welcome

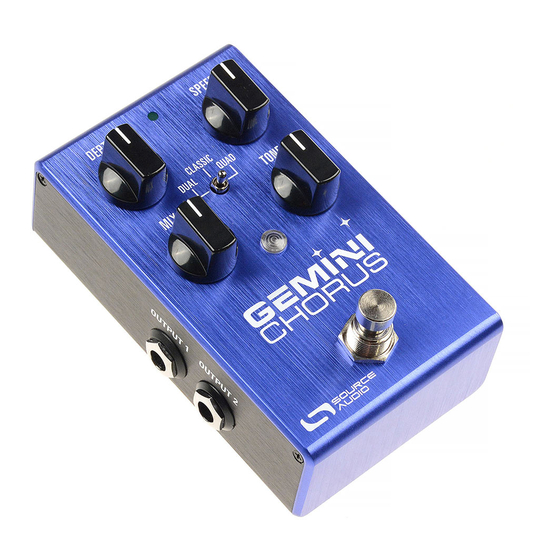

Thank you for purchasing the Gemini Chorus. This powerful stereo effects pedal features a collection
of meticulously crafted chorus sounds ranging from classic dual-voice sounds to lush quad-voice
ensembles. With a simple control set, the Gemini can work in a wide variety of musical settings, and
the powerful MIDI and Neuro control options under the hood provide access to a vast array of
additional tonal possibilities.
The Gemini is housed in a durable, lightweight aluminum housing, packing rack mount power and
flexibility into a compact, easy-to-use stompbox.
SA242
Gemini Chorus User's Guide
1
