QUICK START

1. POWER
To power the unit, connect the included DC adapter power supply to
the 9V DC jack on the back panel.
Note: Using a non-Source Audio power supply could damage the unit.
Please be very cautious when using a 3rd party supply.

2. GUITAR/AUDIO CONNECTIONS

Next, plug your bass (or other instrument) into the jack labeled GUITAR
IN via a standard ¼" cable. Connect your amp (or other audio device) to
the GUITAR OUT jack, again with a standard ¼" cable. Both input and
output are mono signals.
FUNCTION
4 | Quick Start

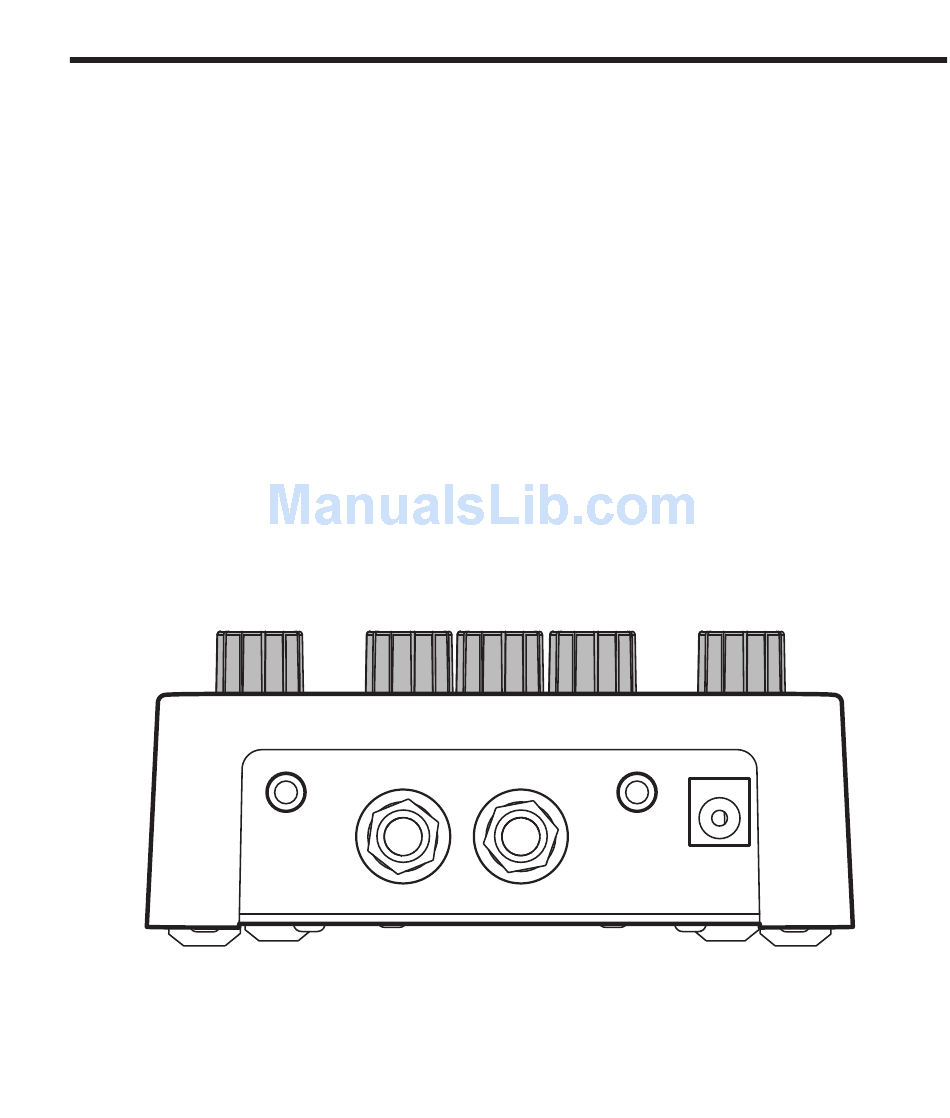

GUITAR IN
MULTI-
IN
GUITAR OUT
MULTI-
FUNCTION
OUT
9V DC
