Quick Start

Power
To power the unit, connect the included 9V DC power supply to the jack labeled DC 9V on the back
panel.
Warning: Using a non-Source Audio supply, especially an unregulated supply, could damage the unit.
Please be very cautious when using 3

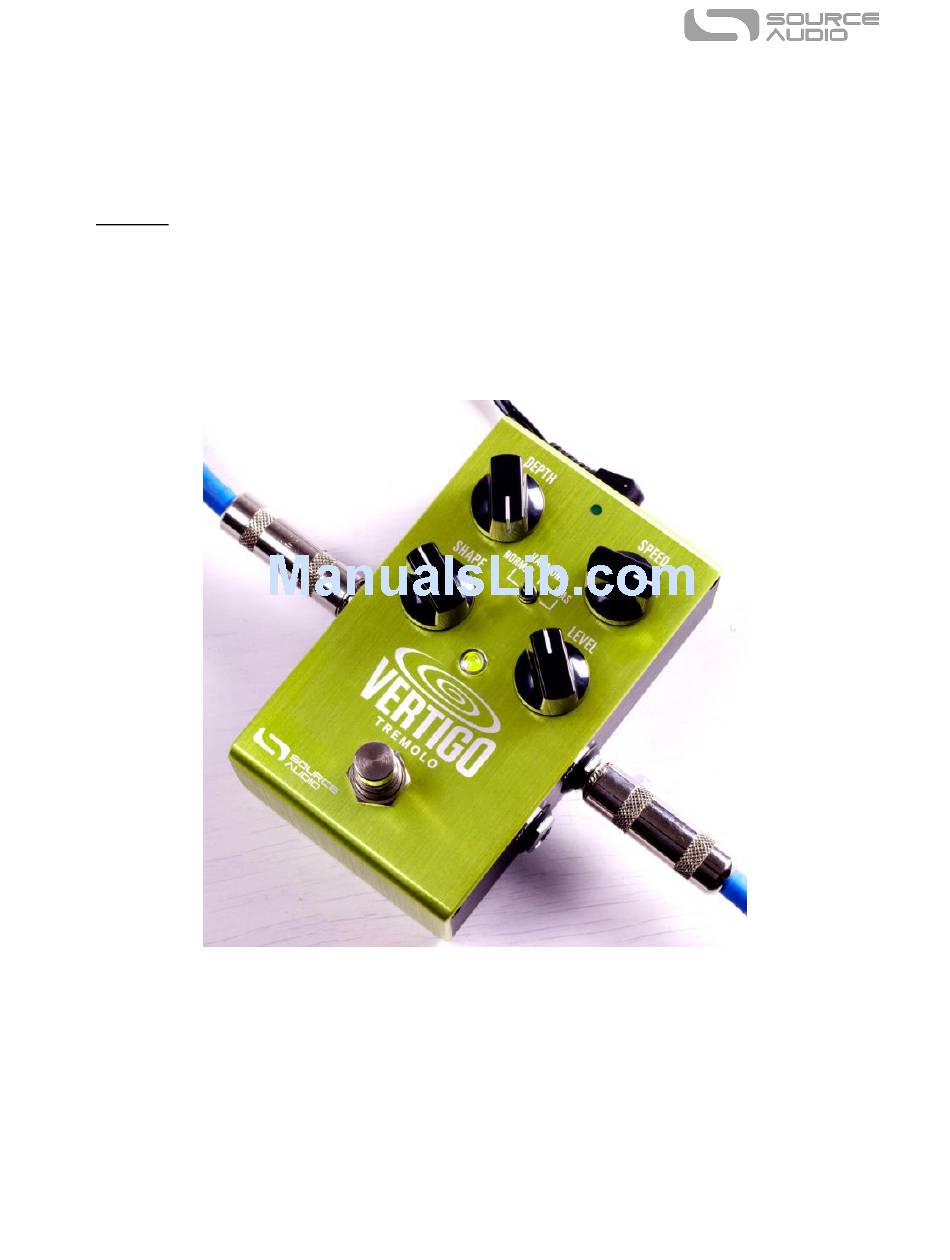

Guitar/Audio Connections
Using standard ¼" mono cables, connect your guitar, bass, or other instrument to the INPUT 1 jack
and your amp (or the next audio device in the signal chain) to the OUTPUT 1 jack.
When the power and audio connections have been made, the Vertigo is ready to play.
Brief Knob, Footswitch, and Button Descriptions
Depth Knob: Controls the depth of the Low Frequency Oscillator (LFO), which determines the
strength or prominence of the tremolo effect.
Speed Knob: Controls the frequency of the LFO, which determines the speed of the tremolo effect.
Shape Knob: Sets the shape of the LFO – choose between Sine, Square, Sawtooth, and more.
Level Knob: Controls the overall output level of the tremolo effect.
SA243
rd
-party power supplies.
Vertigo Tremolo User's Guide 3
