SECTION 4
SLAVE STATE
SLAVE causes the machine to act as a slave in a multi cabinet system. The
machine is a SLAVE if the FREQUENCY SELECT switch is rotated to SLAVE,
and a MASTER if in any other position. The SLAVE lamp and either EMER OFF,
OFF, STANDBY or ON lamps shall be lit. The control mode shall be determined
by the following table:
SLAVE
(Mode
Switch
Position)

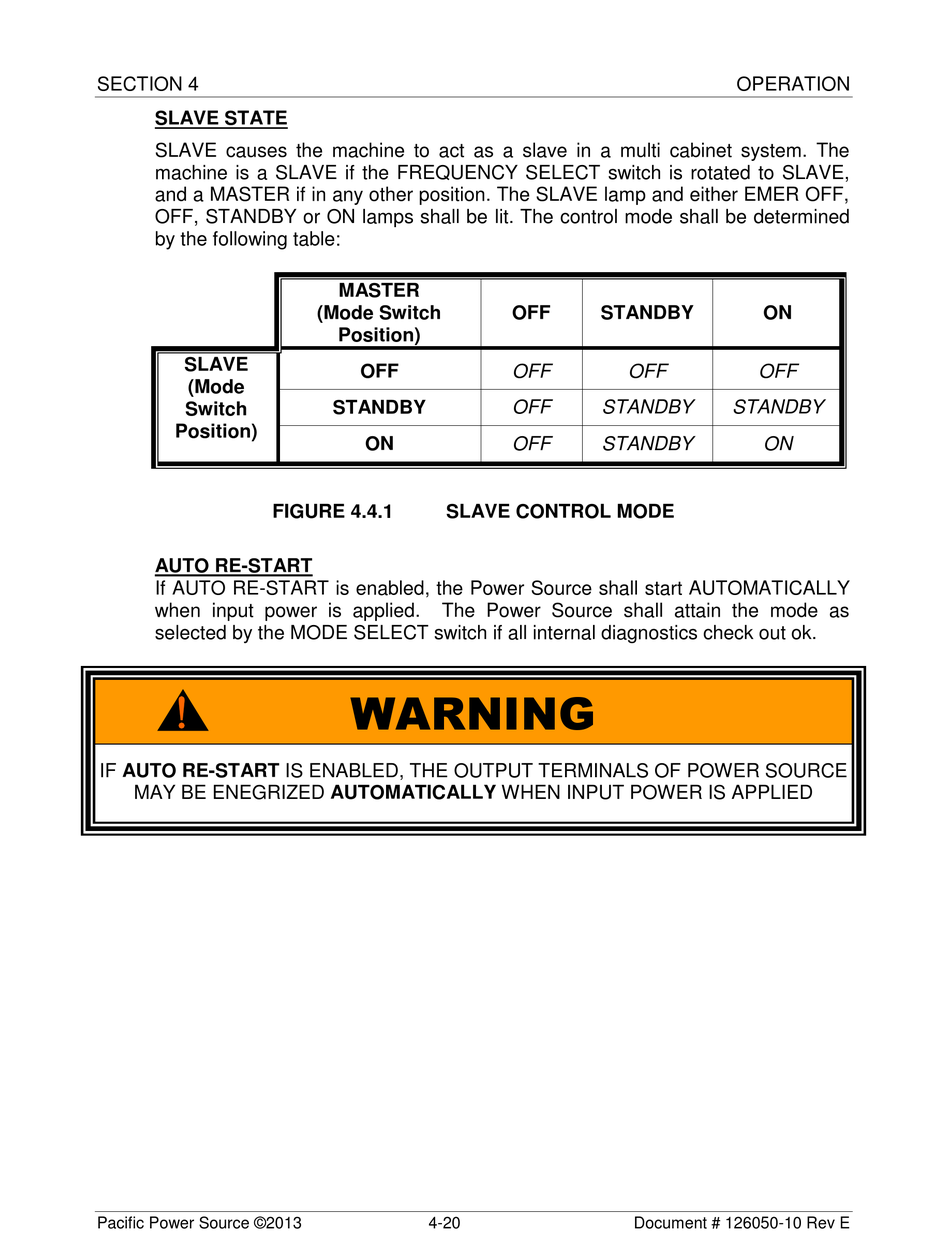

FIGURE 4.4.1
AUTO RE-START
If AUTO RE-START is enabled, the Power Source shall start AUTOMATICALLY
when input power is applied.
selected by the MODE SELECT switch if all internal diagnostics check out ok.

IF AUTO RE-START IS ENABLED, THE OUTPUT TERMINALS OF POWER SOURCE
MAY BE ENEGRIZED AUTOMATICALLY WHEN INPUT POWER IS APPLIED
