Figure 3.1 Installation Detail – (Mechanical Clearances) - Pacific Power Source MS SERIES Operation Manual

SECTION 3
After a particular model has been selected, location of the Power Source, input
and output wiring and environmental conditions must be considered. Table 3.1,
Environmental Survey Checklist, is provided to verify environmental conditions.
Be sure to refer to the clearances required for ventilation in Figure 3.1 for
planning the mechanical installation.
The cabinet should be placed as close as possible to the load to minimize output
wiring lengths. This is done to reduce distribution losses between the load and
power source. Shorter output wiring will provide higher quality power to the load.
If there is a choice between shorter power source input or output wiring, choose
shorter output wiring.
physical clearances as shown in Figure 3.1 Installation Detail.

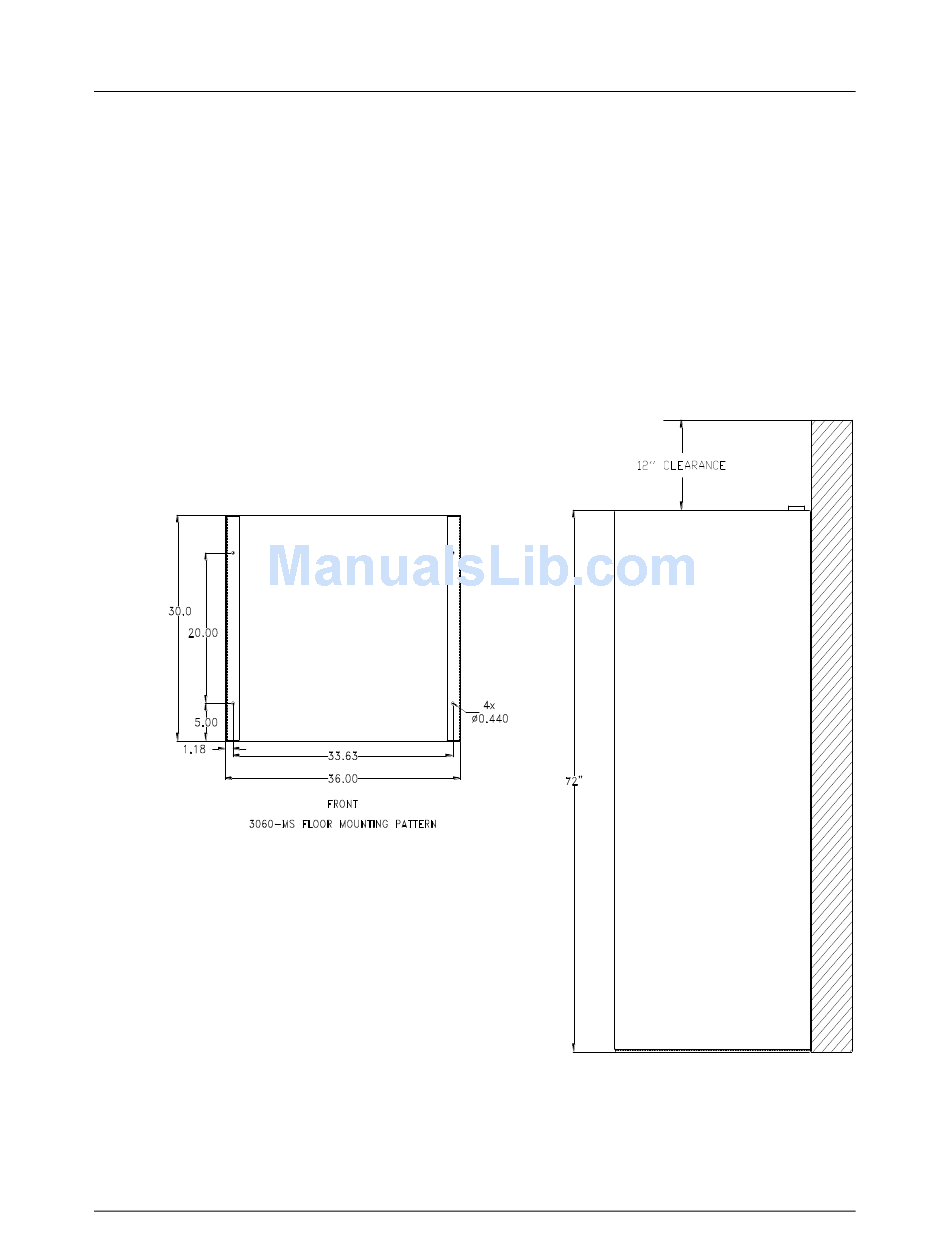

FIGURE 3.1 INSTALLATION DETAIL – (MECHANICAL CLEARANCES)
