SECTION 3
3.2

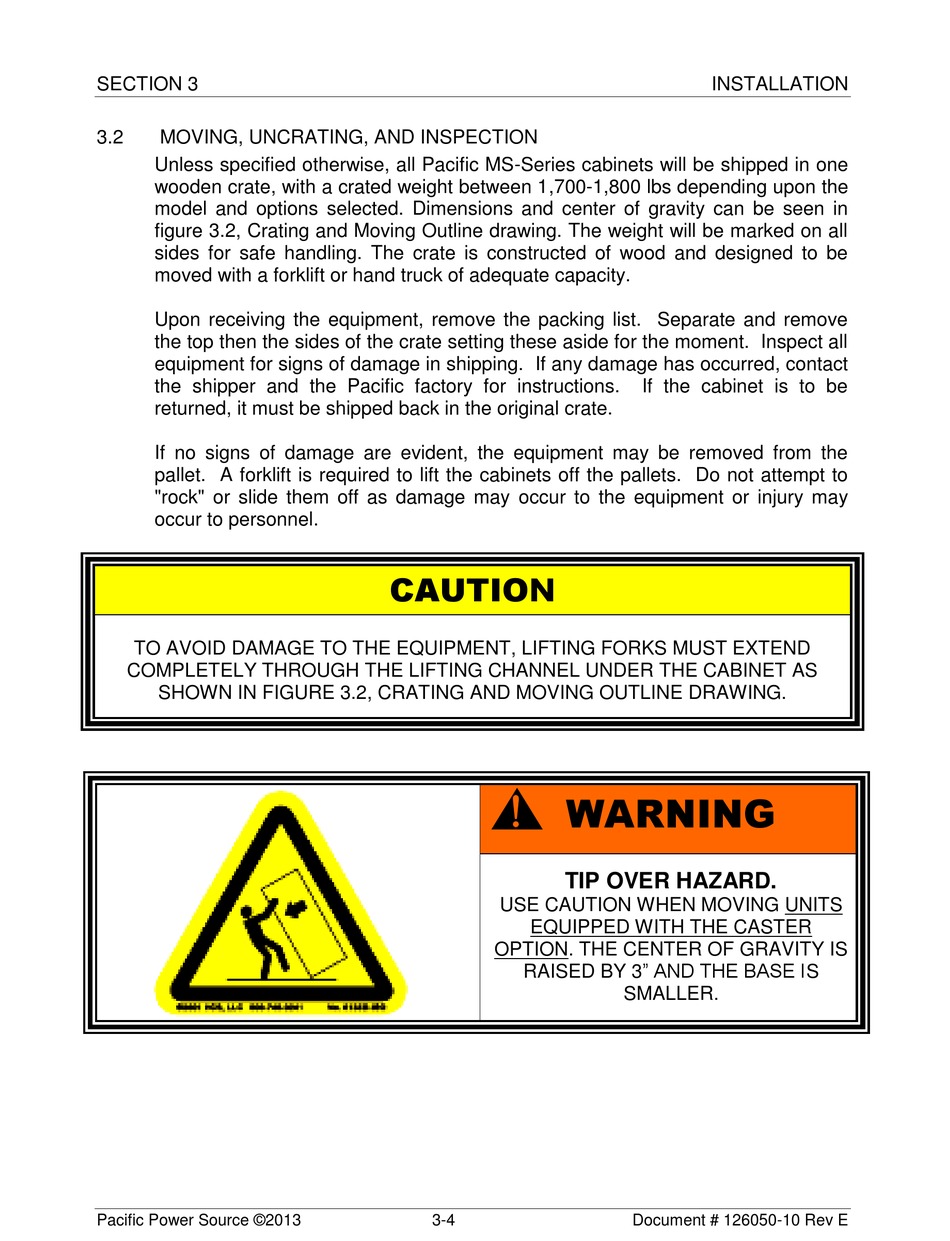

MOVING, UNCRATING, AND INSPECTION

Unless specified otherwise, all Pacific MS-Series cabinets will be shipped in one
wooden crate, with a crated weight between 1,700-1,800 lbs depending upon the
model and options selected. Dimensions and center of gravity can be seen in
figure 3.2, Crating and Moving Outline drawing. The weight will be marked on all
sides for safe handling. The crate is constructed of wood and designed to be
moved with a forklift or hand truck of adequate capacity.
Upon receiving the equipment, remove the packing list. Separate and remove
the top then the sides of the crate setting these aside for the moment. Inspect all
equipment for signs of damage in shipping. If any damage has occurred, contact
the shipper and the Pacific factory for instructions.
returned, it must be shipped back in the original crate.
If no signs of damage are evident, the equipment may be removed from the
pallet. A forklift is required to lift the cabinets off the pallets. Do not attempt to
"rock" or slide them off as damage may occur to the equipment or injury may
occur to personnel.
TO AVOID DAMAGE TO THE EQUIPMENT, LIFTING FORKS MUST EXTEND
COMPLETELY THROUGH THE LIFTING CHANNEL UNDER THE CABINET AS
SHOWN IN FIGURE 3.2, CRATING AND MOVING OUTLINE DRAWING.
Pacific Power Source ©2013
CAUTION

WARNING
TIP OVER HAZARD.
USE CAUTION WHEN MOVING UNITS
EQUIPPED WITH THE CASTER
OPTION. THE CENTER OF GRAVITY IS
RAISED BY 3" AND THE BASE IS
3-4
INSTALLATION
If the cabinet is to be
SMALLER.
Document # 126050-10 Rev E
