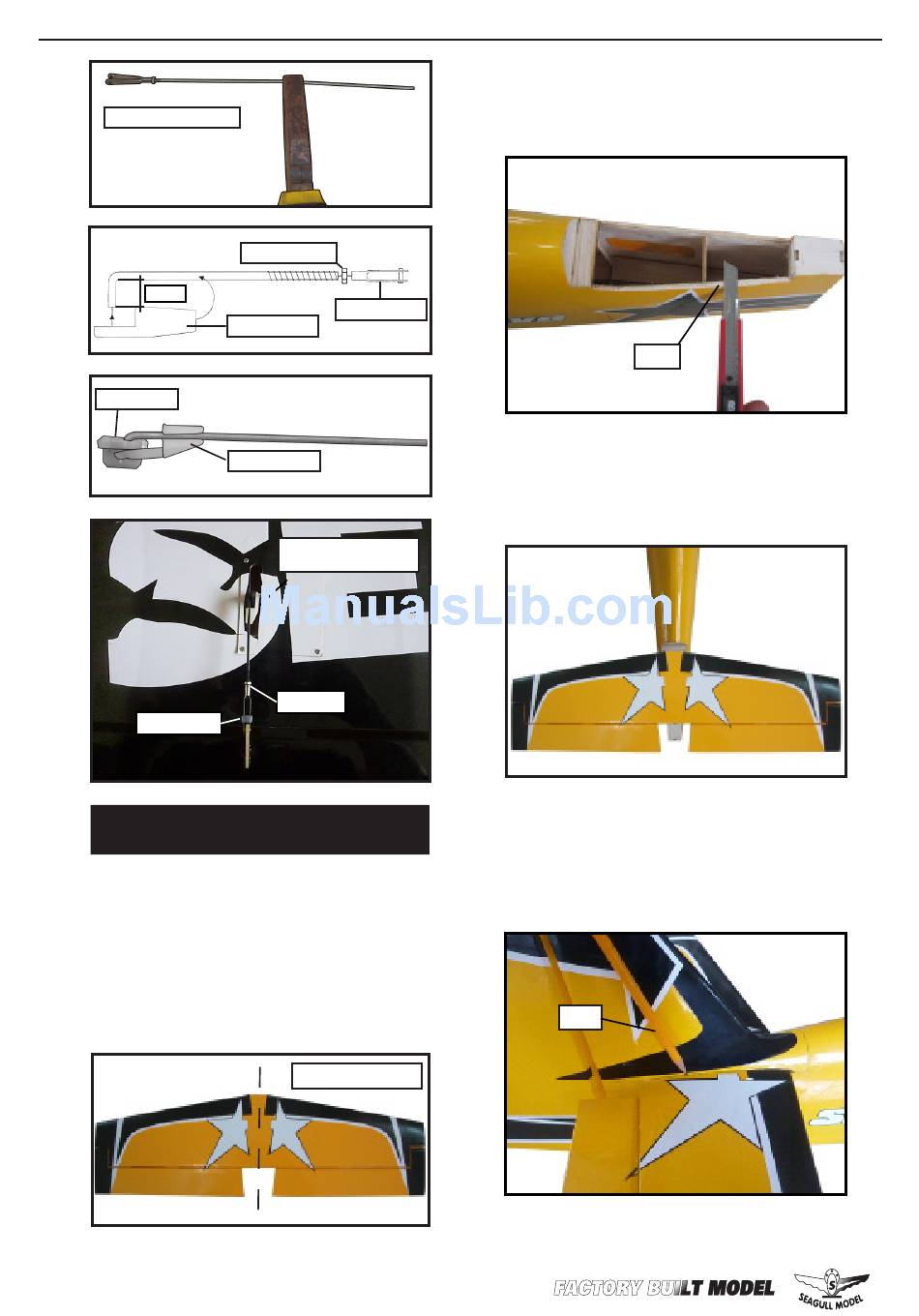

SUPER DAVE MX2
Bend at the mark
8mm
Servo arm.
Fuel tubing.
INSTALLING THE HORIZONTAL
STABILIZER.
1) Using a ruler and a pen, locate the center-
line of the horizontal stabilizer, at the trailing
edge, and place a mark. Use a triangle and
extend this mark, from back to front, across
the top of the stabilizer. Also extend this
mark down the back of the trailing edge of
the stabilizer.
18
M2 lock nut.
Metal clevis.
Snap keeper.
Snap keeper.
Nylon Snap keeper.
Hex Nut.
Draw center line.
Instruction Manual.
2) Using a modeling knife, carefully remove
the covering at mounting slot of horizontal
stabilizer ( both side of fuselage).
Cut.
3) Slide the stabilizer into place in the precut
slot in the rear of the fuselage. The stabilizer
should be pushed firmly against the front of
the slot.
4) With the stabilizer held firmly in place,
use a pen and draw lines onto the stabilizer
where it and the fuselage sides meet. Do this
on both the right and left sides and top and
bottom of the stabilizer.
Pen.
