SUPER DAVE MX2
Rudder Control Horn.
Epoxy
Rudder Control Horn.

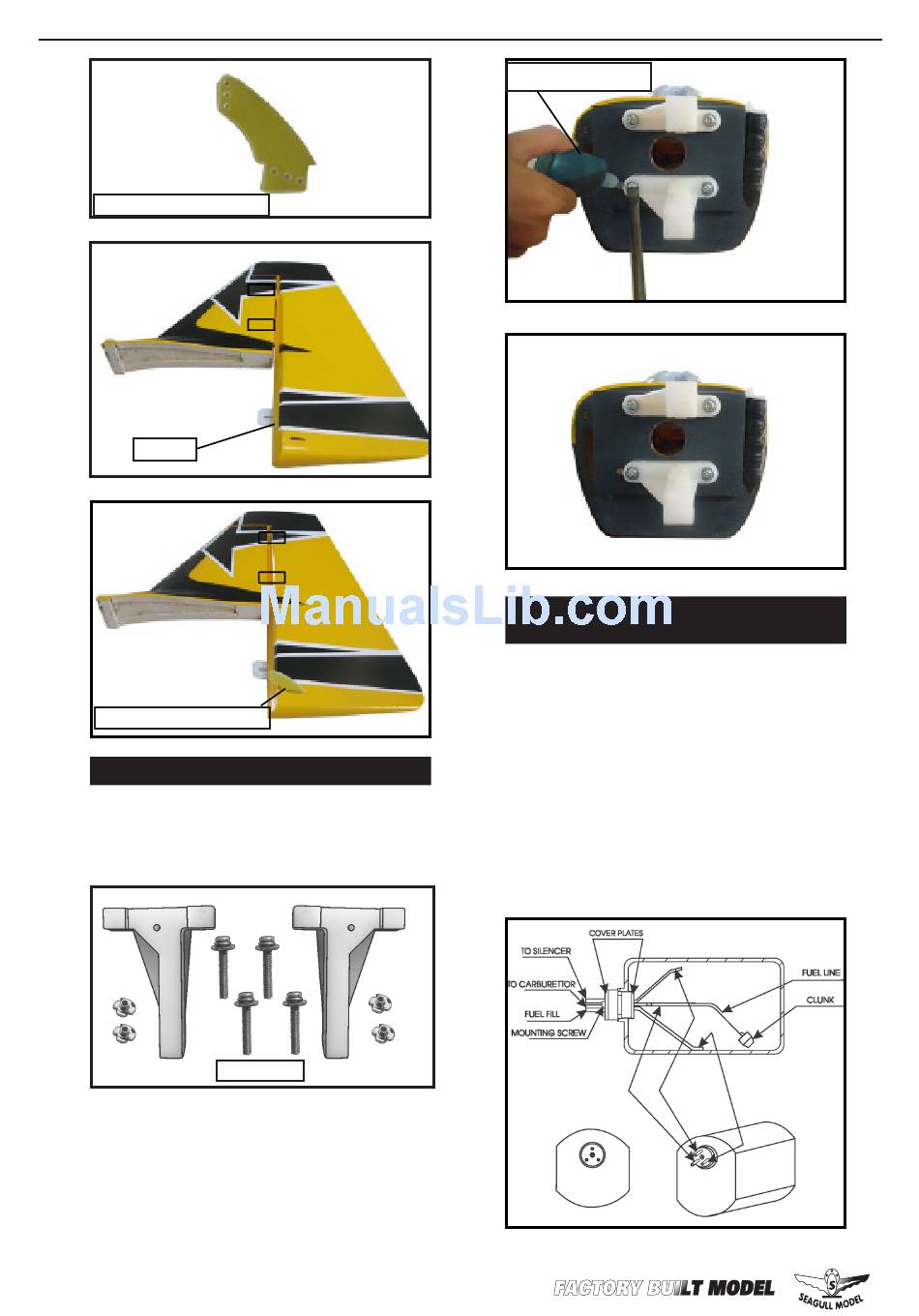

ENGINE MOUNT INSTALLATION.

1) Locate the items necessary to install the
engine mount included with your model.
2) Use four M4x30mm head bolts and four
4mm washers to attach the engine mount
rails to the firewall. Tighten the screws .
Make sure to use threadlock on the screws
to help prevent them from vibrating loose.
6 6
M4x30mm
Instruction Manual.
Thread locker glue
INSTALLING THE STOPPER
ASSEMBLY.
1) Using a modeling knife, carefully cut off
the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Using a modeling knife, cut one length of
silicon fuel line. Connect one end of the line
to the weighted fuel pick up and the other
end to the nylon pick up tube.
