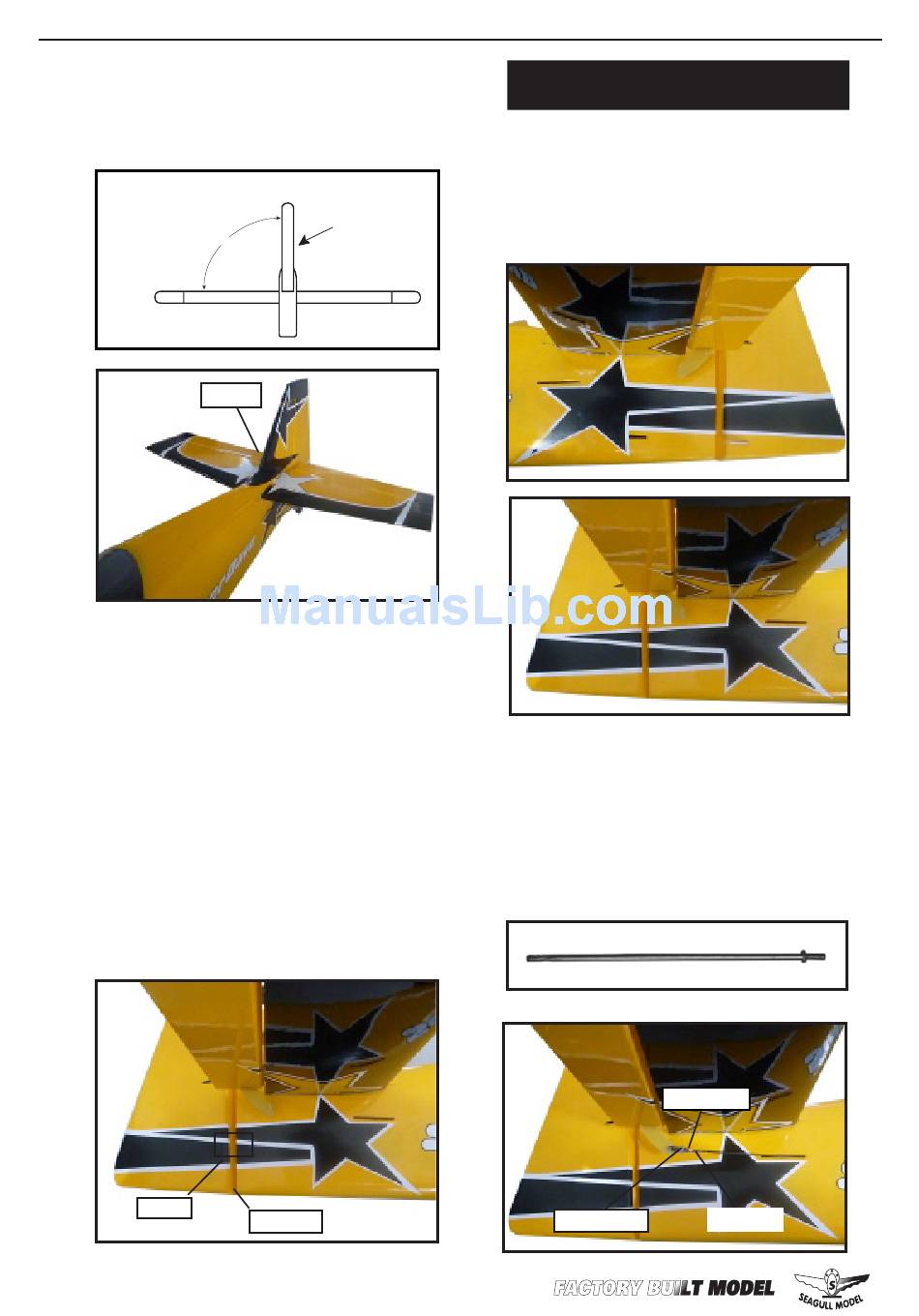

3) Slide the vertical stabilizer back in place.
Using a triangle, check to ensure that the ver-
tical stabilizer is aligned 90º to the horizontal
stabilizer.
Horizontal
Stabilizer.
Epoxy.
4) When you are sure that everything is
aligned correctly, mix up a generous amount
of Flash 30 Minute Epoxy. Apply a thin lay-
er to the mounting slot and to bottom of
the vertical stabilizer mounting area. Ap-
ply epoxy to the bottom and top edges of
the filler block and to the lower hinge also.
Set the stabilizer in place and realign. Dou-
ble check all of your measurements once
more before the epoxy cures. Hold the sta-
bilizer in place with T-pins or masking
tape and remove any excess epoxy using
a paper towel and rubbing alcohol. Allow
the epoxy to fully cure before proceeding.
Hinge
20
Vertical
Stabilizer.
.
90º
C/A glue
Instruction Manual.
ELEVATOR PUSHROD HORN
INSTALLATION.
1) Install the elevator control horn using
the same method as with the aileron control
horns.
2) Position the elevator control horn on the
both side of elevator.
3) Thread one clevis and M2 lock nut on to
each elevator control rod. Thread the horns
on until they are flush with the ends of the
control rods.
4) Elevator and rudder pushrods assemble as
pictures below.
M2 Clevis
Fuel Tubing
Hex Nut
