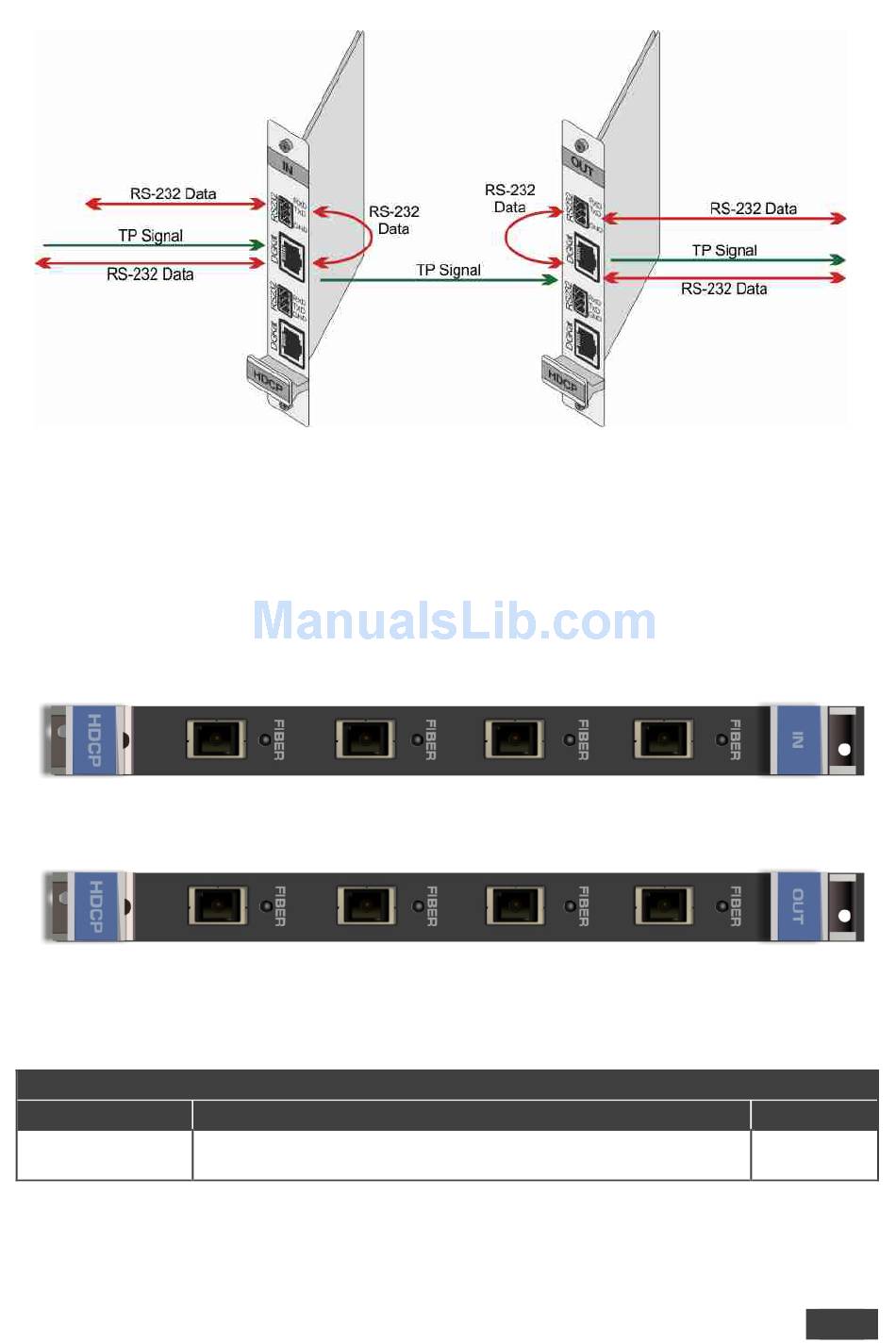

Figure 15: DGKat Card Serial Data Transmission

10.7 Defining the F670-IN4-F32 / F670-OUT4-F32
F670 cards are fully compatible with the Kramer 670T/670R and 671T/671R
HDMI/DVI transmitters and receivers for non-HDCP content.
The F670-IN4-F32 is a 4-Input HDMI over OM3 Fiber Card (F-32):
The F670-OUT4-F32 is a 4-Output HDMI over OM3 Fiber Card (F-32):
10.7.1 F670-IN4-F32 / F670-OUT4-F32 Configuration
The F670-IN4-F32 configuration table appears as follows:
F670-IN4-F32 Input Card
Parameter
HDCP
VS-3232DN - Using the Input / Output Cards
Description
Turn HDCP on and off.
*0=EN, 1=DIS.
Default
0
61
