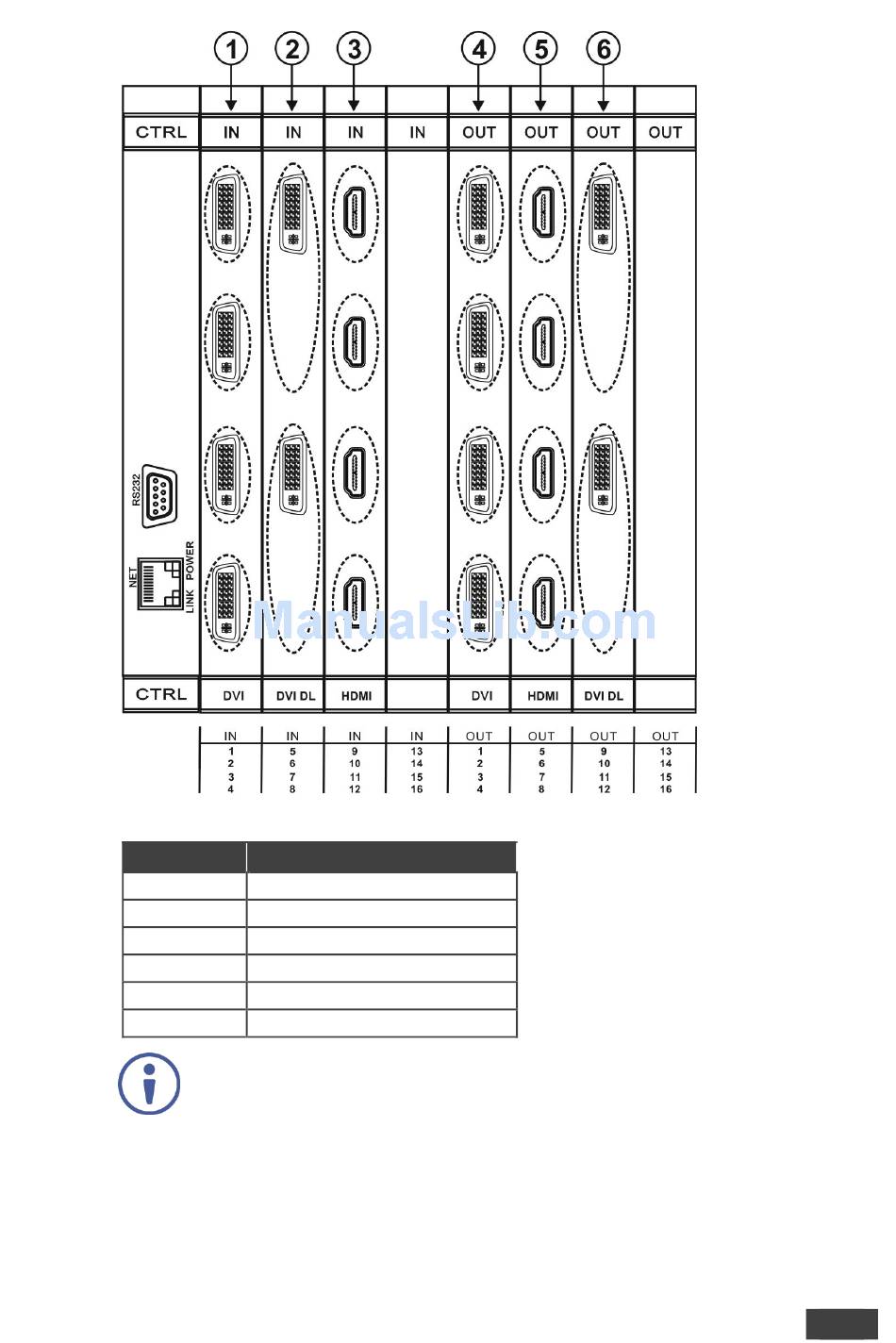

Figure 5: Sample Port Numbering

Diagram #
1
2
3
4
5
6
VS-3232DN - Connecting the VS-3232DN
Actual Port Number
IN 1, IN 2, IN 3, IN 4
IN 5, IN 6
IN 9, IN 10, IN 11, IN 12
OUT 1, OUT 2, OUT 3, OUT 4
OUT 5, OUT 6, OUT 7, OUT 8
OUT 9, OUT 10
There is no IN 7, IN 8, OUT 11, or OUT 12 because these slots
contain DVI dual link cards.
15
