Setting The Resolution Of The Generated Video; Setting The Pattern Of The Generated Video; Figure 13: Resolution Dip-Switch - Kramer VS-3232DN User Manual

9.2

Setting the Resolution of the Generated Video

The test module generates a range of both PC and HD resolutions which are
selected by a combination of DIP-switches and an on-board jumper (labeled B3).
Install the jumper to select HD resolutions or remove the jumper to select PC
resolutions.
The Resolution DIP-switch is used to set the resolution of the generated video:
Available PC Resolutions for Generated Video (Jumper Off)
DIP-switch Position
1
OFF
ON
OFF
ON
Available HD Resolutions for Generated Video (Jumper On, Default)
DIP-switch Position
1
OFF
ON
OFF
ON
Figure 13
480p).

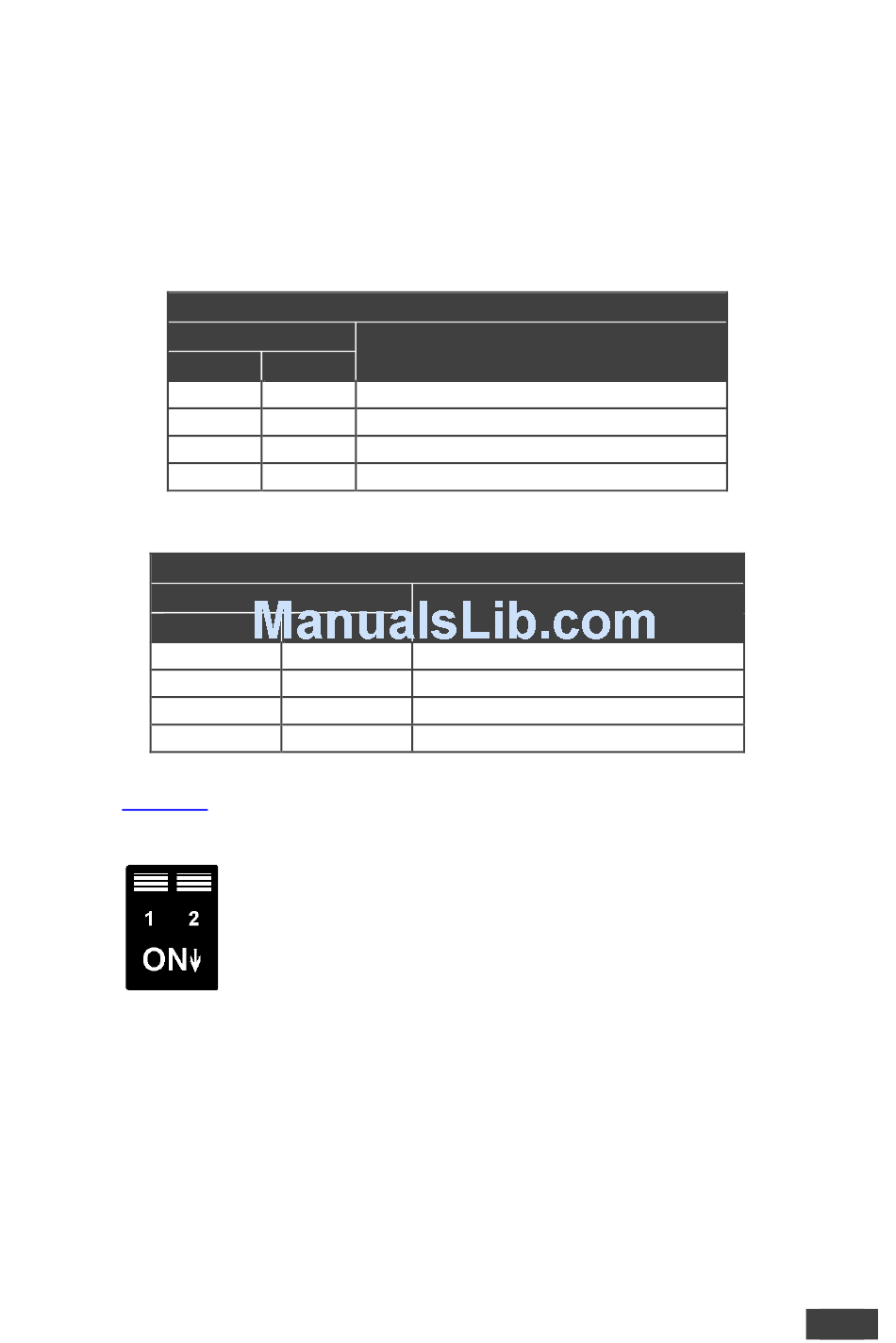

Figure 13: Resolution DIP-switch

9.3

Setting the Pattern of the Generated Video

The Pattern button is used to set the pattern of generated video. There are 32
available patterns. Press the button repeatedly to cycle through the patterns.
VS-3232DN - Using the Test Video Card
Resolution
2
OFF 1024 x 768 @60Hz (default)
OFF 1280 x 1024 @60Hz
ON 1600 x 1200 @60Hz
ON 1920 x 1200 @60Hz
2
OFF
OFF
ON
ON
shows the Resolution DIP-switch with both switches off (up, default,
Resolution
480p (default)
720p
1080i
1080p
47
