Defining MV-4X 4 Window
Multi-viewer/4x2 Seamless Matrix
Switcher
This section defines MV-4X.

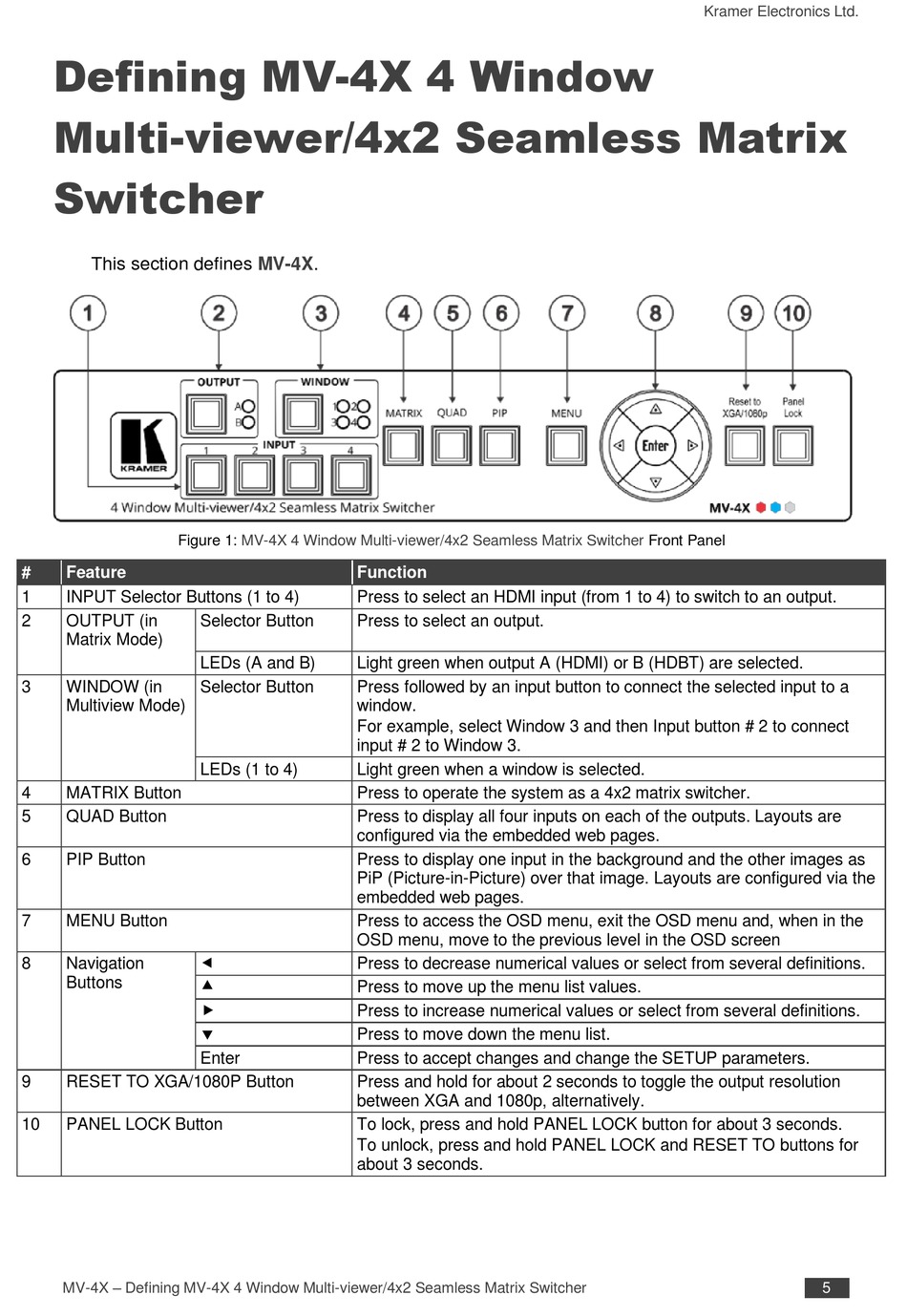

Figure 1:
# Feature
1 INPUT Selector Buttons (1 to 4)
2 OUTPUT (in
Matrix Mode)
3 WINDOW (in
Multiview Mode)
4 MATRIX Button
5 QUAD Button
6 PIP Button
7 MENU Button
8 Navigation
Buttons
9 RESET TO XGA/1080P Button
10 PANEL LOCK Button
MV-4X – Defining MV-4X 4 Window Multi-viewer/4x2 Seamless Matrix Switcher
MV-4X 4 Window Multi-viewer/4x2 Seamless Matrix Switcher
Function
Press to select an HDMI input (from 1 to 4) to switch to an output.
Selector Button Press to select an output.
LEDs (A and B) Light green when output A (HDMI) or B (HDBT) are selected.
Selector Button Press followed by an input button to connect the selected input to a
window.
For example, select Window 3 and then Input button # 2 to connect
input # 2 to Window 3.
LEDs (1 to 4) Light green when a window is selected.
Press to operate the system as a 4x2 matrix switcher.
Press to display all four inputs on each of the outputs. Layouts are
configured via the embedded web pages.
Press to display one input in the background and the other images as
PiP (Picture-in-Picture) over that image. Layouts are configured via the
embedded web pages.
Press to access the OSD menu, exit the OSD menu and, when in the
OSD menu, move to the previous level in the OSD screen

Press to decrease numerical values or select from several definitions.

Press to move up the menu list values.

Press to increase numerical values or select from several definitions.

Press to move down the menu list.
Enter Press to accept changes and change the SETUP parameters.
Press and hold for about 2 seconds to toggle the output resolution
between XGA and 1080p, alternatively.
To lock, press and hold PANEL LOCK button for about 3 seconds.
To unlock, press and hold PANEL LOCK and RESET TO buttons for
about 3 seconds.
Kramer Electronics Ltd.
Front Panel
