170625-1CD
ES200RD II
5
Basic Specifications
5.6 Alterable Operating Range

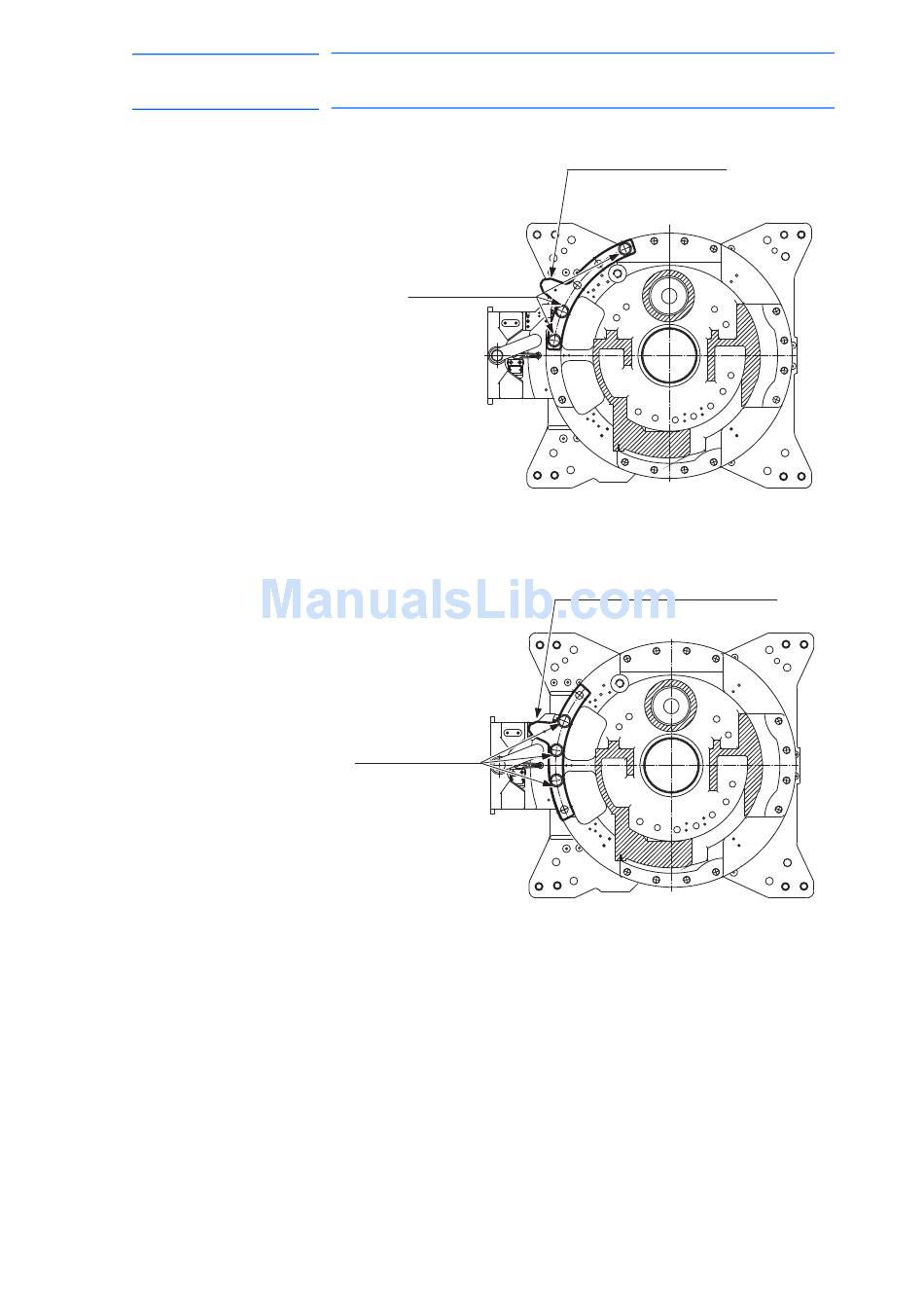

Fig. 5-10(f): Properly-Mounted Models for S-Axis Stopper
Hexagon head screws
Hexagon head screws
5-18
The stopper is irreversible.
Only this side of the stopper
can be used at this angle.
Installation at + 30°
The stopper is reversible.
Either side of the stopper can be used.
Installation at + 15°
HW1482737
43 of 100
