GP Monitor
Rear Cover
Clamp Screw
5. Secure the monitor to the panel by tightening both fixing clamp
screws until the flanges are snug against the back surface of the
panel.
6. Connect the terminal cable as described in the following section.
7. After you complete the electrical installation, secure the rear
cover to the back of the monitor.
Do not operate with rear cover removed because of
electrical shock hazard!

3.2.1 Mounting Bracket Accessory

A mounting bracket is available as an accessory. To mount a GP
Monitor to a wall, post, column, or other flat surface, complete the
following steps:
1. Insert the rear of the monitor through the bracket's opening so
the bottom of the monitor rests on the bracket surface. Make sure
the gasket is in place Figure 3.
8
Gasket

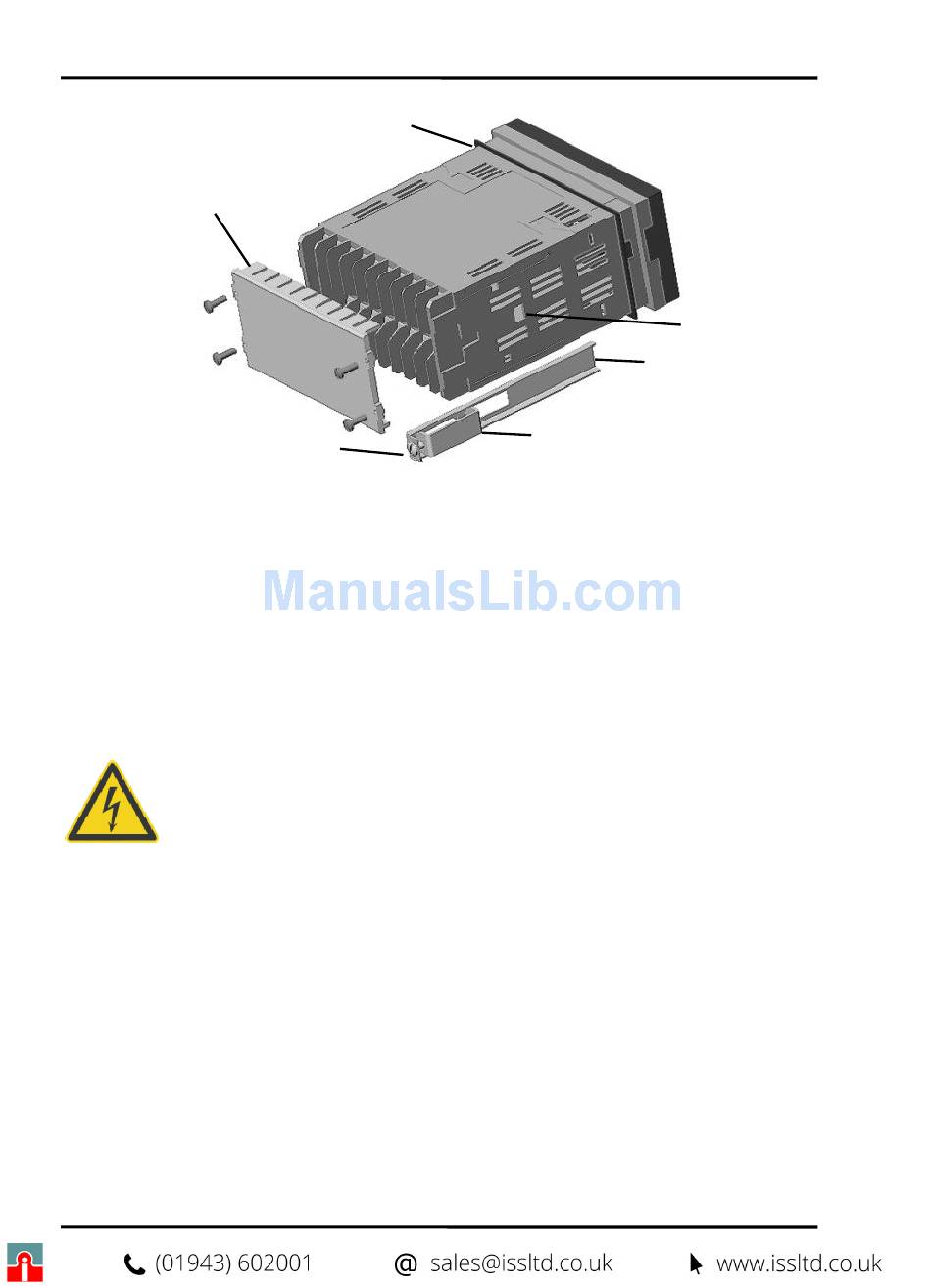

Figure 2: Mounting the Monitor
Rev. F 10/2011
Hole
Fixing Clamp
Tab
GP Series
