GP Monitor
Press
and
to go to head/input
setup functions
Turn decimal
on (1) or off (2)
To temperature display
Turn decimal
on (1) or off (2)
Detektor Calibration: „D" Value
Ambient Calibration: „R" Value
To temperature display
To temperature display
= Cycle through displays
= Cycle through head and input displays
= Adjust values
36
Startup display
GPR/GPS Head
GPM Head (3 displays)
CI3 Head

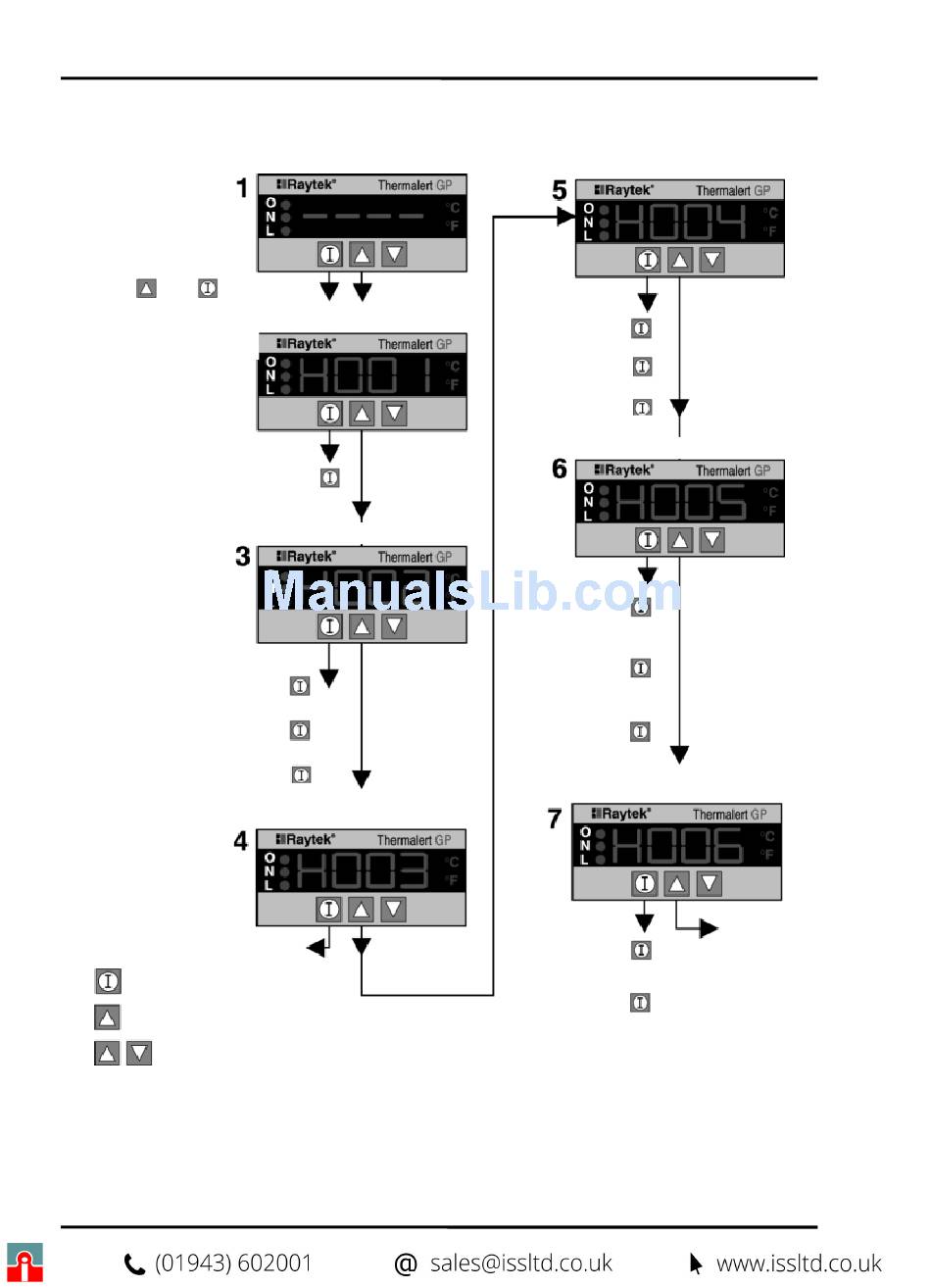

Figure 26: Head and Input Setup
Rev. F 10/2011
0 - 5 V Input (3 displays)
Adjust decimal
position (or off)
Adjust 0 V equivalent value
Adjust 5 V equivalent value
To temperature display
4-20 mA Input (3 displays)
Adjust decimal
position (or off)
Adjust 4 mA equivalent
Adjust 20 mA equivalent
To temperature display
Thermocouple Input (2 displays)
Turn decimal
on (1) or off (2)
Select thermocouple type
To temperature display
Back to
display 2
GP Series
