GP Monitor
GPC: Setpoints 1 and 2
Pin Function
11 Setpoint 1 (R
12 Digital ground
13 Setpoint 2 (R
14 Digital ground

3.3.8 External Relay (Accessory)

A solid state relay accessory is available as a switching output for
setpoint use as a control for an alarm or triggering mechanism. The
setpoint output can supply 15 mA @ 5 V for SSR control. A wiring
diagram for the relay accessory is shown in the following figure. Two
relays are necessary to take advantage of both setpoints.
To alarm or
controlling device
The following relay is available:
DC activated / electrically isolated solid state relay for AC
voltages from 24 – 330 VAC / 10 A (XXXGPSSRAC)

3.4 Operation

3.4.1 Control Panel

The GP Monitor consists of a control panel with 4 LED's, 3 buttons,
and 5 indicating lights. Besides displaying the current temperature or
user-defined value, the LED's also display parameter settings. By
18
> 100 Ω)
Last
> 100 Ω)
Last
Table 8: Output Connections

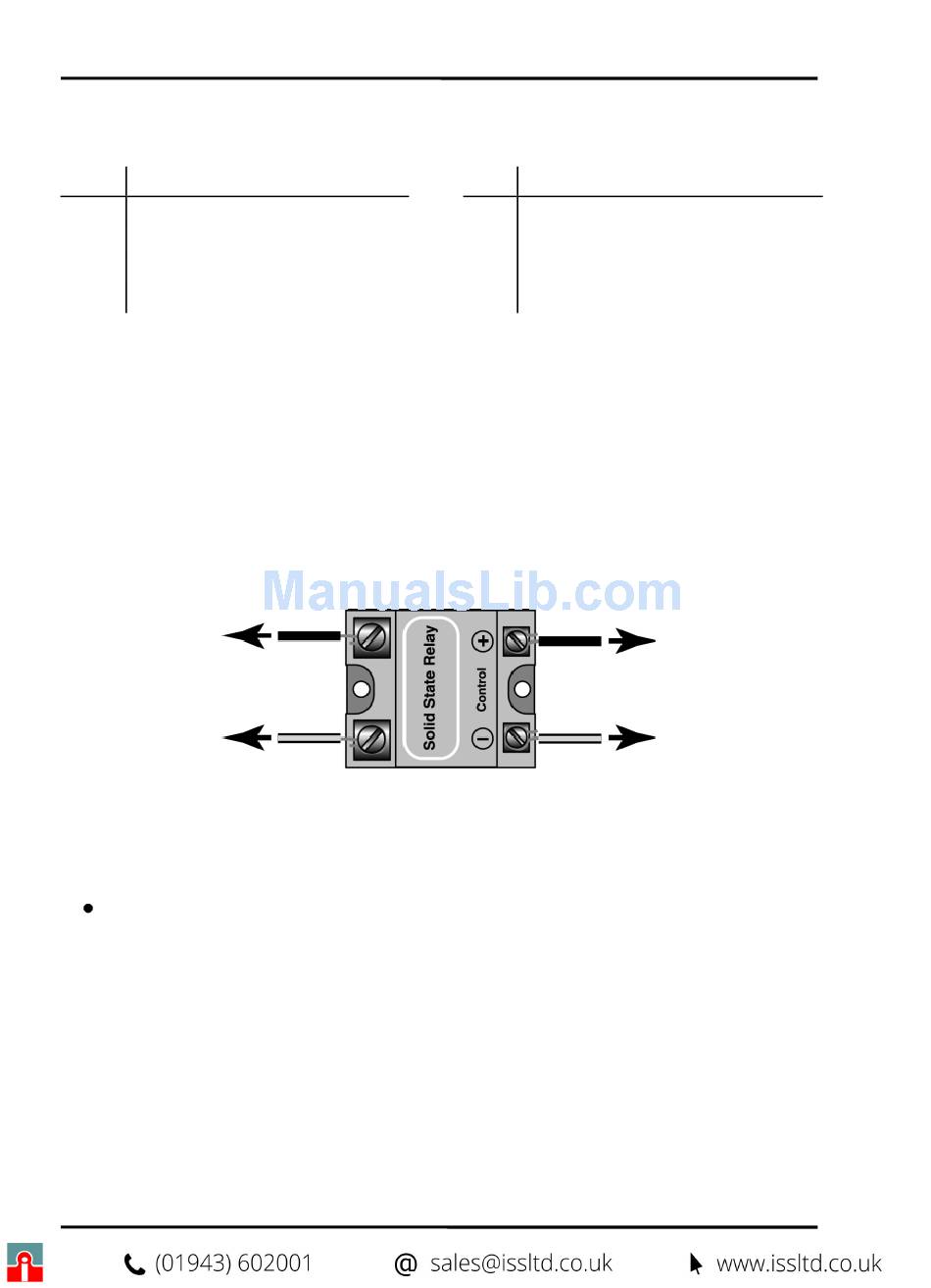

Figure 9: Relay Accessory Wiring
Rev. F 10/2011
GPCM: Relay (optional)
Pin Function
11 Opener 1 / Closer 1
12 Changer 1
13 Opener 2 / Closer 2
14 Changer 2
to
GP Monitor
Pin 11 or 13
(Setpoints)
Pin 12 or 14
(Digital ground)
GP Series
