2 Description
The GP monitor consists of printed circuit boards, A/D converters,
microprocessor, control switches, and power conditioners, all
mounted in a 1/8 DIN panel-mount NEMA-12 (IP 54) enclosure. The
GP monitor accepts inputs from any 0-5V and 4-20mA devices, which
allows it to be used as a panel meter for many applications. Other
settings allow the GP to act as a temperature monitor for Raytek fixed
infrared sensors like GPR, GPS, CI3, CM, TX and XR and for other
temperature gathering devices. The GP Monitor also accepts various
types of thermocouple inputs. It provides two programmable
setpoint alarm signals (open collector or relay) and one of two types
of analog output: 4-20 mA output or thermocouple output. (Factory
default is 4-20 mA output.)

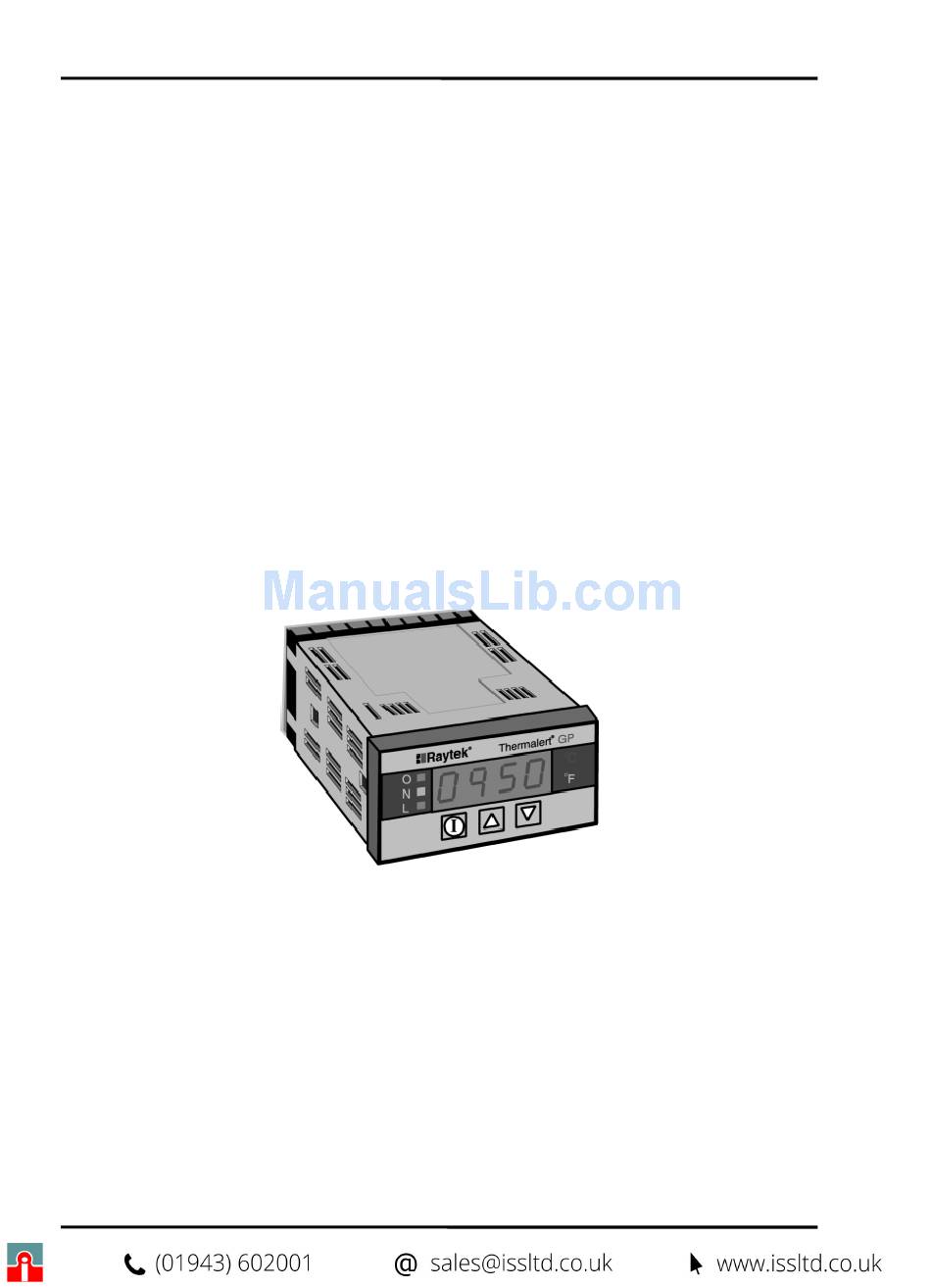

Figure 1: GP Monitor
Rev. F 10/2011
