3.4.2 Device Selection

Several device types can be connected to the electronics enclosure.
Complete the following procedure to set the electronics to the
appropriate device.
From the temperature/value display, press and hold , press , then
release them both. A display similar to the following figure appears.

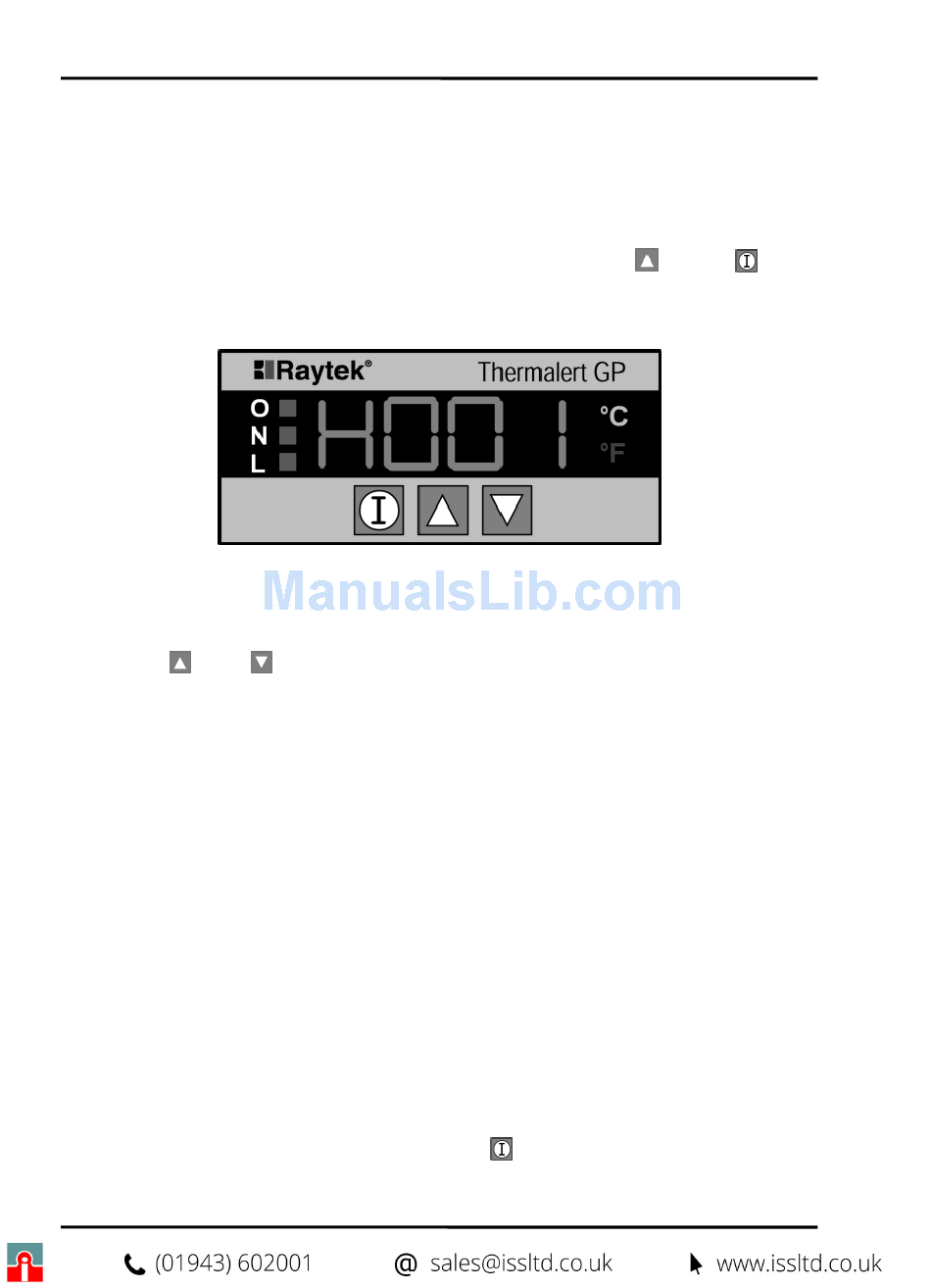

Figure 11: Device Selection Display
The "H" will be followed by numbers designating the device type.
Press the and buttons to change the number on the display to
the appropriate head type.
Head types are as follows:
H001 = Raytek GPR Standard Head
H001 = Raytek GPS Head with laser sighting
H003 = Raytek CI3 Head
H004 = Raytek CM Head, 0 – 5 V input
H005 = 4 – 20 mA input, e.g. Raytek TX Head
H006 = Thermocouple input
H007 = 4 – 20 mA input, e.g. Raytek XR Head with emissivity setting
Note that all head types except H003 have additional display
settings.
H001
If H001 is displayed, press the button once to be able to turn the
decimal Off ("0") or On ("1"). A "d" is displayed on the monitor.
