Power Connections - RayTek GP Series Operating Instructions Manual

GP Monitor
0 - 5 V
Pin Function
6 Power (-)
6 Signal (-)
7 Signal (+)
8 Shield
9 Power (+)
Table 6: Wiring Devices that Use Power from Monitor
External Device

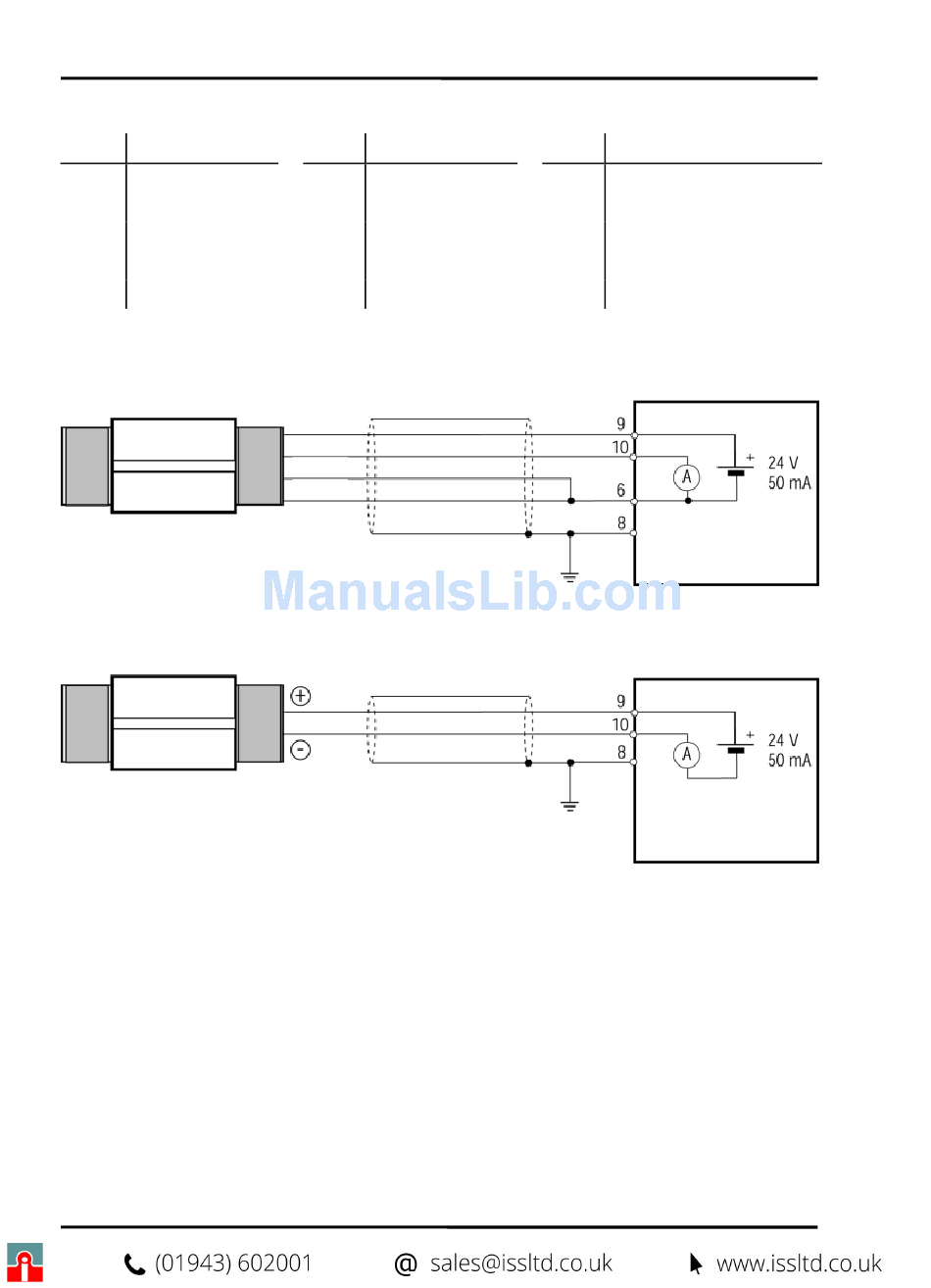

Figure 7: Installation 4 – 20 mA (4 Wires)
External Device
Figure 8: Installation 4 – 20 mA (2 Wires)
For further information see section 3.4.2

3.3.6 Power Connections

You can connect 110-220VAC, 50-60Hz, to the monitor. It can
automatically sense whether you connect 110 or 220 VAC. Use Table
7 as a guide.
16
4 - 20 mA 4 Wire
Pin Function
6 Power (-)
6 4 - 20 mA (-)
8 Shield
9 Power (+)
10 4 - 20 mA (+)
V +
cc
I +
meas
I –
meas
V –
cc
Shield
Shield
Rev. F 10/2011
4 - 20 mA 2 Wire
Pin Function
8 Shield
9 4 - 20 mA (+)
10 4 - 20 mA (-)
Device Selection, Seite 20.
GP Monitor
GP Monitor
GP Series
