HTML Operation, cont'd
Configuration Pages
The Configuration pages allow System settings (such as IP address, date/time, etc.),
scaler settings ( ), and passwords (admin and user), to be configured as desired.
Additionally by selecting the Firmware Upgrade link the current firmware can be
upgraded.
System Settings page
The Annotator displays the System Settings page (figure 7-3) when you click the
Configuration tab. The screen consists of fields in which you can view and edit
IP administration and system date and time settings. See Appendix B for basic
information about IP addresses and subnetting.

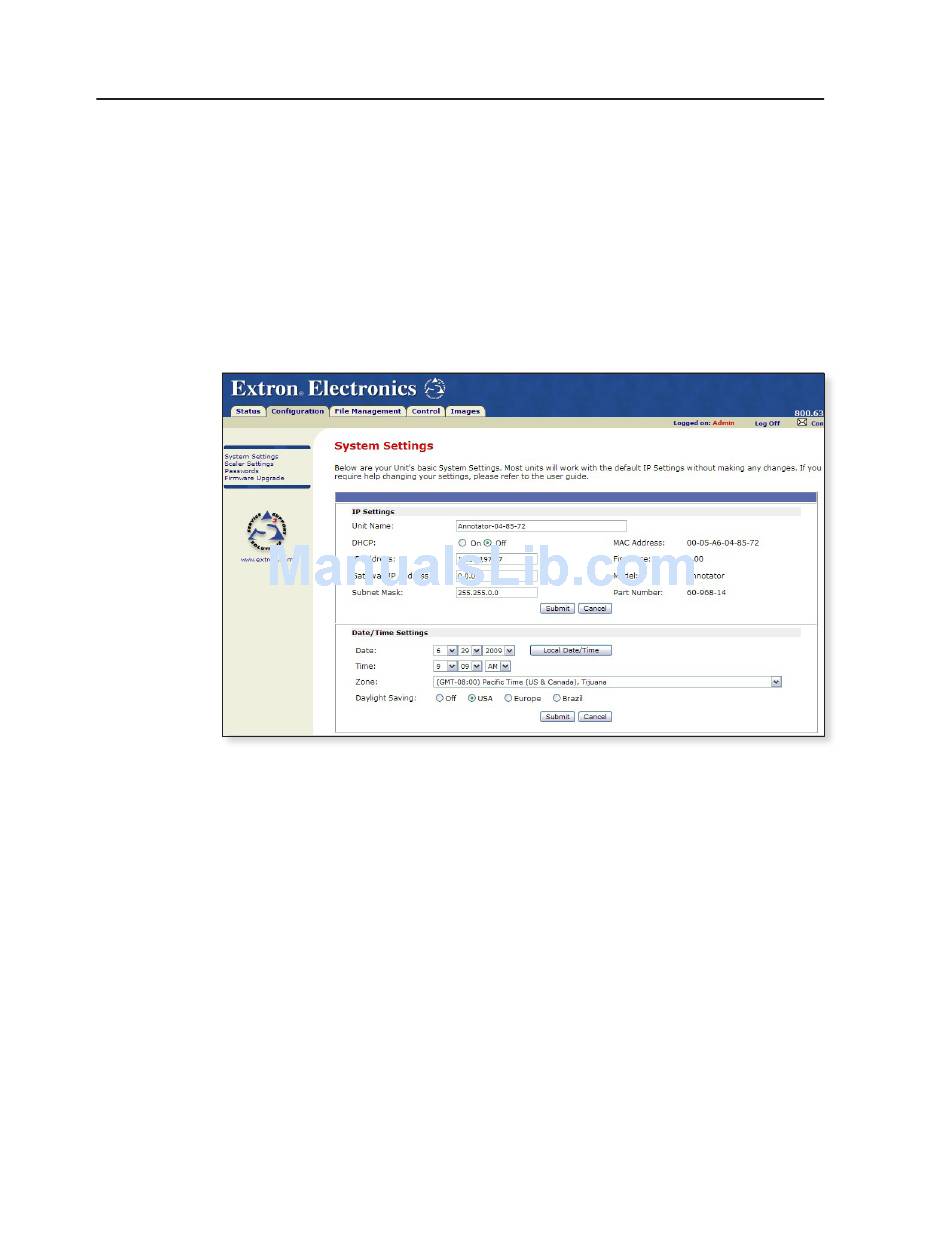

Figure 7–3 — System Configuration page
On password-protected connections, there are two levels of protection:
administrator and user.
Administrators have full access to all unit capabilities and editing functions. Users
can change inputs, create and recall presets, change images, and view all settings
with the exception of passwords.
•
•
IP Settings fields
The IP Settings fields provide a location for viewing and editing settings unique to
the Ethernet interface. After editing any of the settings on this page, click Submit at
the bottom of the IP Settings section.
7-4
Annotator • HTML Operation
Ethernet connection to the unit, either entering SIS commands (see chapter
5, "SIS Programmer's Guide") or using the Extron Signal Processing
Products Control Program (see chapter 6, "Annotator Software") is password
protected.
Connection via the RS-232/RS-422 port is not password protected.
