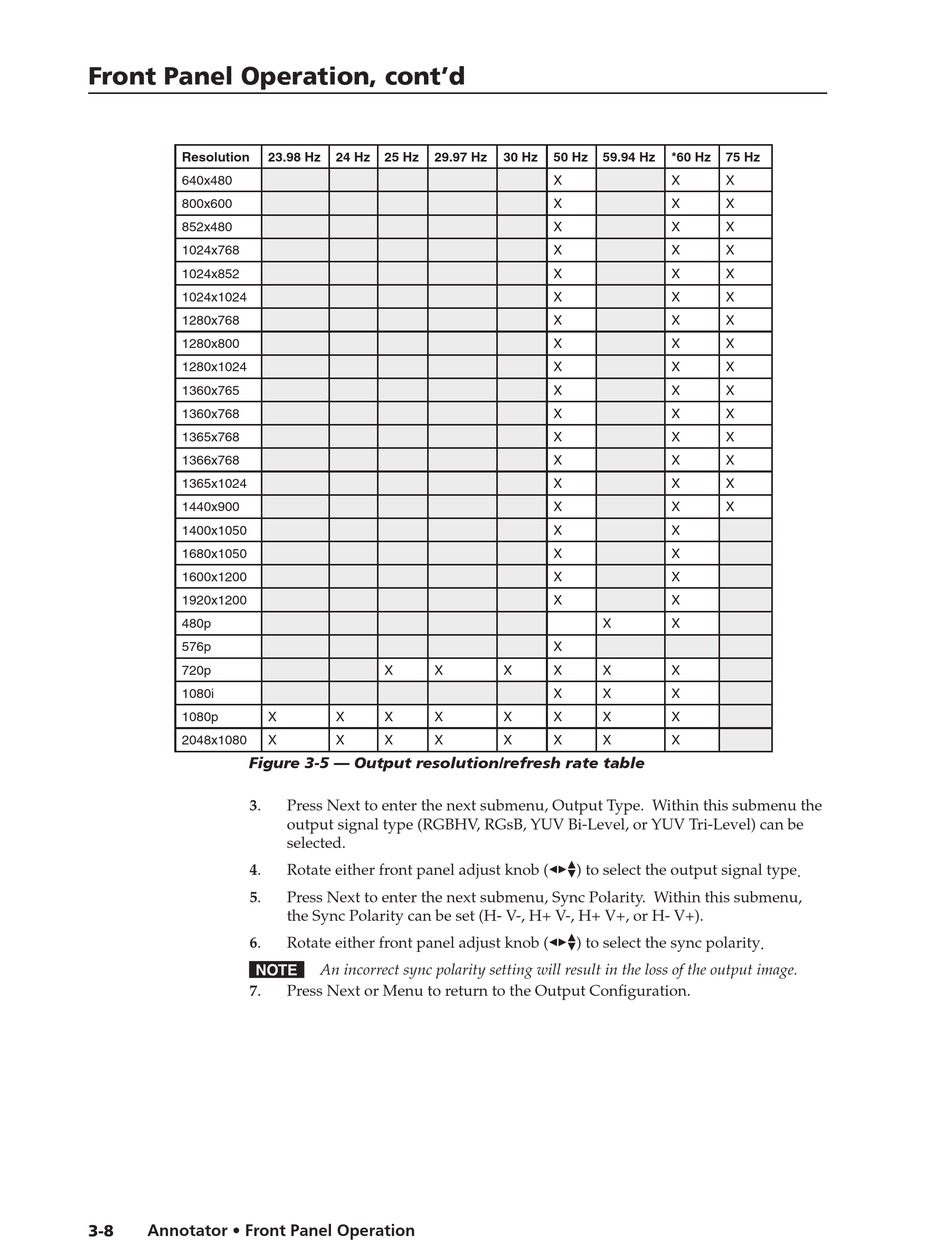

Front Panel Operation, cont'd
Resolution
640x480
800x600
852x480
1024x768
1024x852
1024x1024
1280x768
1280x800
1280x1024
1360x765
1360x768
1365x768
1366x768
1365x1024
1440x900
1400x1050
1680x1050
1600x1200
1920x1200
480p
576p
720p
1080i
1080p
2048x1080
Figure 3-5 — Output resolution/refresh rate table
3.
4.
5.
6.
N An incorrect sync polarity setting will result in the loss of the output image.
7.
3-8
Annotator • Front Panel Operation
23.98 Hz
24 Hz
25 Hz
29.97 Hz
X
X
X
X
X
X
X
X
X
X
Press Next to enter the next submenu, Output Type. Within this submenu the
output signal type (RGBHV, RGsB, YUV Bi-Level, or YUV Tri-Level) can be
selected.
Rotate either front panel adjust knob ([{) to select the output signal type .
Press Next to enter the next submenu, Sync Polarity. Within this submenu,
the Sync Polarity can be set (H- V-, H+ V-, H+ V+, or H- V+).
Rotate either front panel adjust knob ([{) to select the sync polarity .
Press Next or Menu to return to the Output Configuration.
30 Hz
50 Hz
59.94 Hz
*60 Hz
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
75 Hz
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
