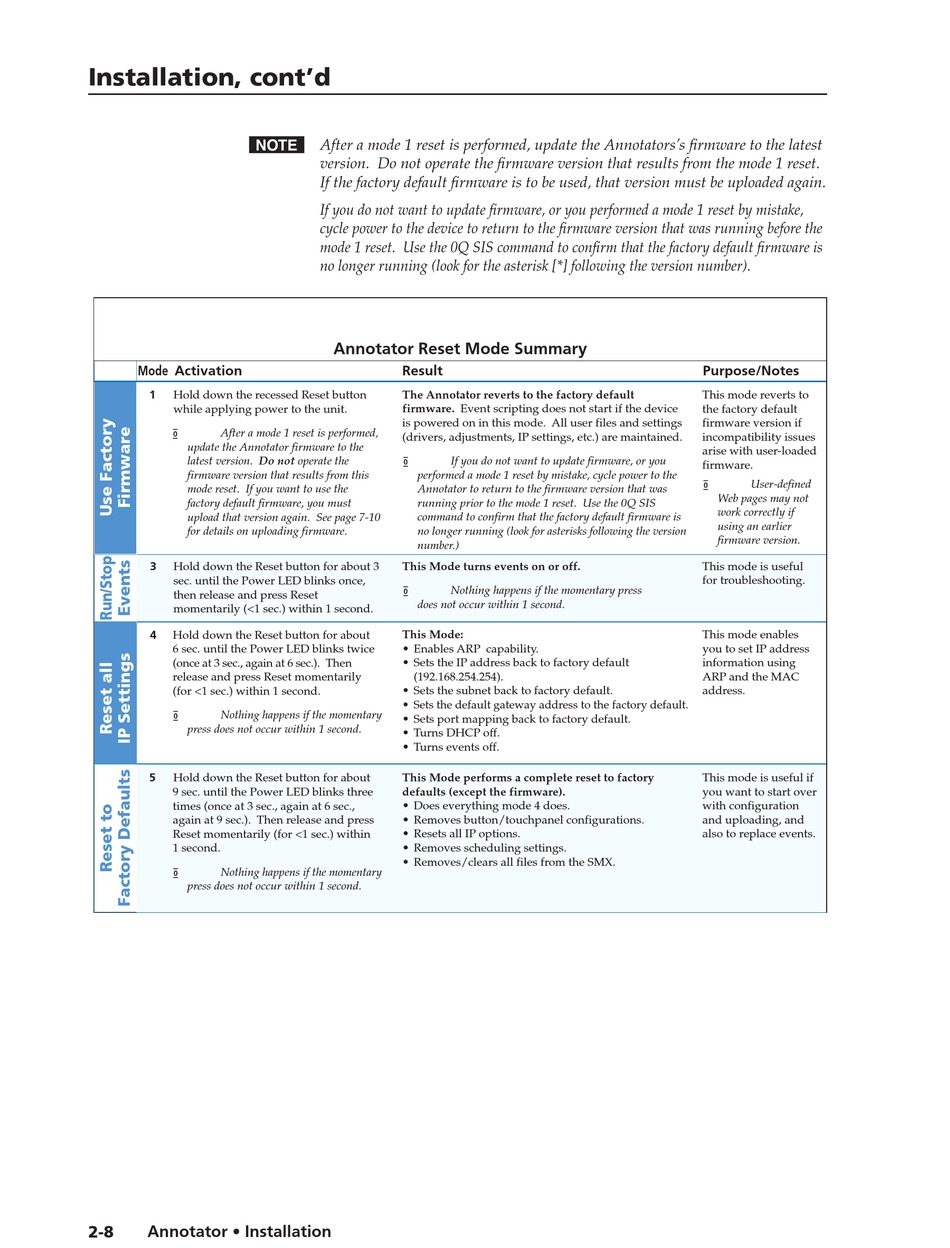

Installation, cont'd
N After a mode 1 reset is performed, update the Annotators's firmware to the latest
Mode Activation
1 Hold down the recessed Reset button
while applying power to the unit.
0 After a mode 1 reset is performed,
update the Annotator firmware to the
latest version. Do not operate the
firmware version that results from this
mode reset. If you want to use the
factory default firmware, you must
upload that version again. See page 7-10
for details on uploading firmware.
3 Hold down the Reset button for about 3
sec. until the Power LED blinks once,
then release and press Reset
momentarily (<1 sec.) within 1 second.
4 Hold down the Reset button for about
6 sec. until the Power LED blinks twice
(once at 3 sec., again at 6 sec.). Then
release and press Reset momentarily
(for <1 sec.) within 1 second.
0 Nothing happens if the momentary
press does not occur within 1 second.
5 Hold down the Reset button for about
9 sec. until the Power LED blinks three
times (once at 3 sec., again at 6 sec.,
again at 9 sec.). Then release and press
Reset momentarily (for <1 sec.) within
1 second.
Nothing happens if the momentary
0
press does not occur within 1 second.
2-8 Annotator • Installation
version. Do not operate the firmware version that results from the mode 1 reset.
If the factory default firmware is to be used, that version must be uploaded again.
If you do not want to update firmware, or you performed a mode 1 reset by mistake,
cycle power to the device to return to the firmware version that was running before the
mode 1 reset. Use the 0Q SIS command to confirm that the factory default firmware is
no longer running (look for the asterisk [*] following the version number).
Annotator Reset Mode Summary
Result
The Annotator reverts to the factory default
firmware. Event scripting does not start if the device
is powered on in this mode. All user files and settings
(drivers, adjustments, IP settings, etc.) are maintained.
0 If you do not want to update firmware, or you
performed a mode 1 reset by mistake, cycle power to the
Annotator to return to the firmware version that was
running prior to the mode 1 reset. Use the 0Q SIS
command to confirm that the factory default firmware is
no longer running (look for asterisks following the version
number.)
This Mode turns events on or off.
0 Nothing happens if the momentary press
does not occur within 1 second.
This Mode:
• Enables ARP capability.
• Sets the IP address back to factory default
(192.168.254.254).
• Sets the subnet back to factory default.
• Sets the default gateway address to the factory default.
• Sets port mapping back to factory default.
• Turns DHCP off.
• Turns events off.
This Mode performs a complete reset to factory
defaults (except the firmware).
• Does everything mode 4 does.
• Removes button/touchpanel configurations.
• Resets all IP options.
• Removes scheduling settings.
• Removes/clears all files from the SMX.
Purpose/Notes
This mode reverts to
the factory default
firmware version if
incompatibility issues
arise with user-loaded
firmware.
User-defined
0
Web pages may not
work correctly if
using an earlier
firmware version.
This mode is useful
for troubleshooting.
This mode enables
you to set IP address
information using
ARP and the MAC
address.
This mode is useful if
you want to start over
with configuration
and uploading, and
also to replace events.
