Extron electronics Annotator User Manual page 99

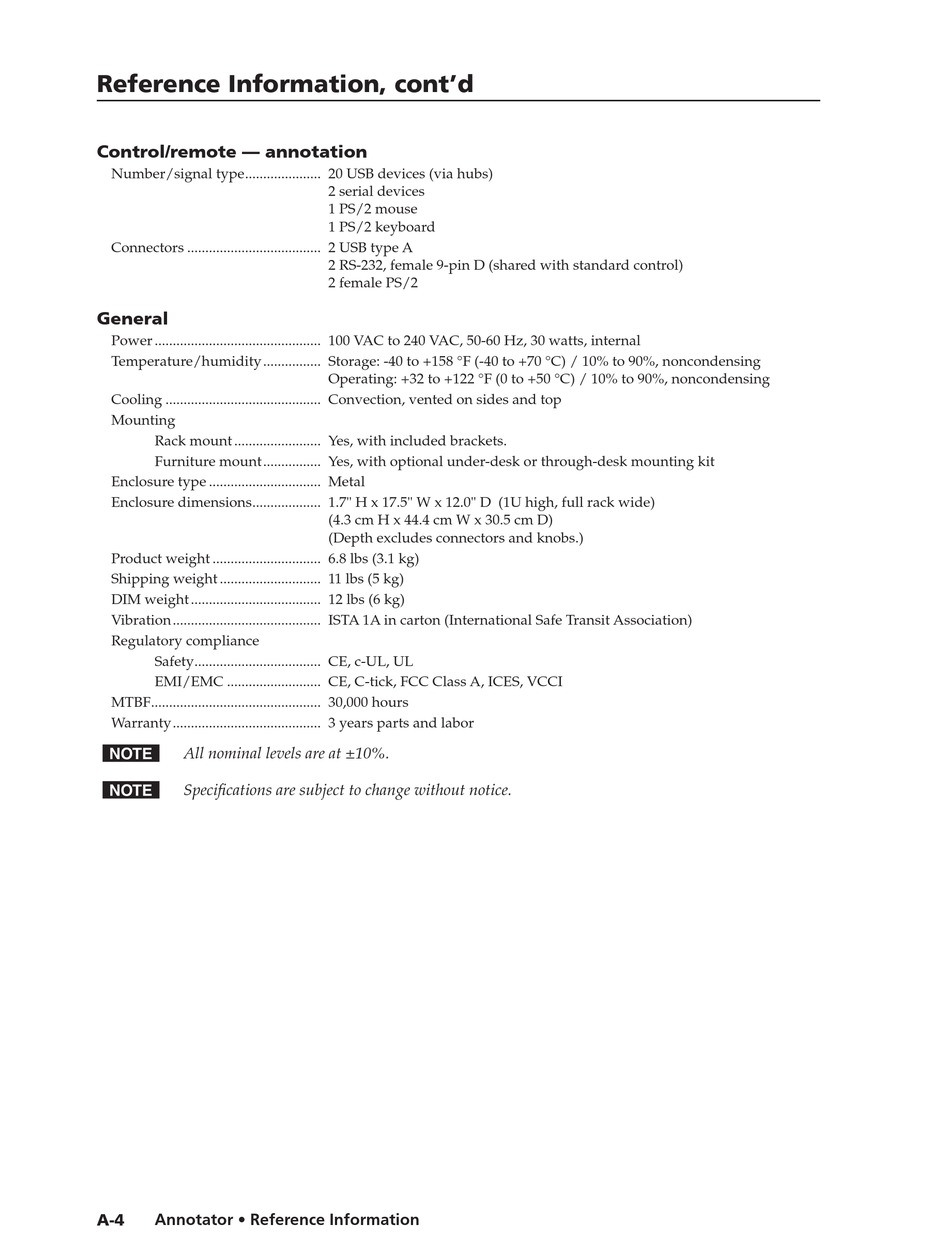

Reference Information, cont'd
Control/remote — annotation
Number/signal type ..................... 20 USB devices (via hubs)
Connectors ..................................... 2 USB type A
General
Power .............................................. 100 VAC to 240 VAC, 50-60 Hz, 30 watts, internal
Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Cooling ........................................... Convection, vented on sides and top
Mounting
Rack mount ........................ Yes, with included brackets.
Furniture mount ................ Yes, with optional under-desk or through-desk mounting kit
Enclosure type ............................... Metal
Enclosure dimensions ................... 1.7" H x 17.5" W x 12.0" D (1U high, full rack wide)
Product weight .............................. 6.8 lbs (3.1 kg)
Shipping weight ............................ 11 lbs (5 kg)
DIM weight .................................... 12 lbs (6 kg)
Vibration ......................................... ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety ................................... CE, c-UL, UL
EMI/EMC .......................... CE, C-tick, FCC Class A, ICES, VCCI
MTBF ............................................... 30,000 hours
Warranty ......................................... 3 years parts and labor
All nominal levels are at ±10%.
N
N Specifications are subject to change without notice.
A-4 Annotator • Reference Information
2 serial devices
1 PS/2 mouse
1 PS/2 keyboard
2 RS-232, female 9-pin D (shared with standard control)
2 female PS/2
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
(4.3 cm H x 44.4 cm W x 30.5 cm D)
(Depth excludes connectors and knobs.)
