Presets page

From this page up to 16 Memory or 128 Input presets can be saved and recalled.

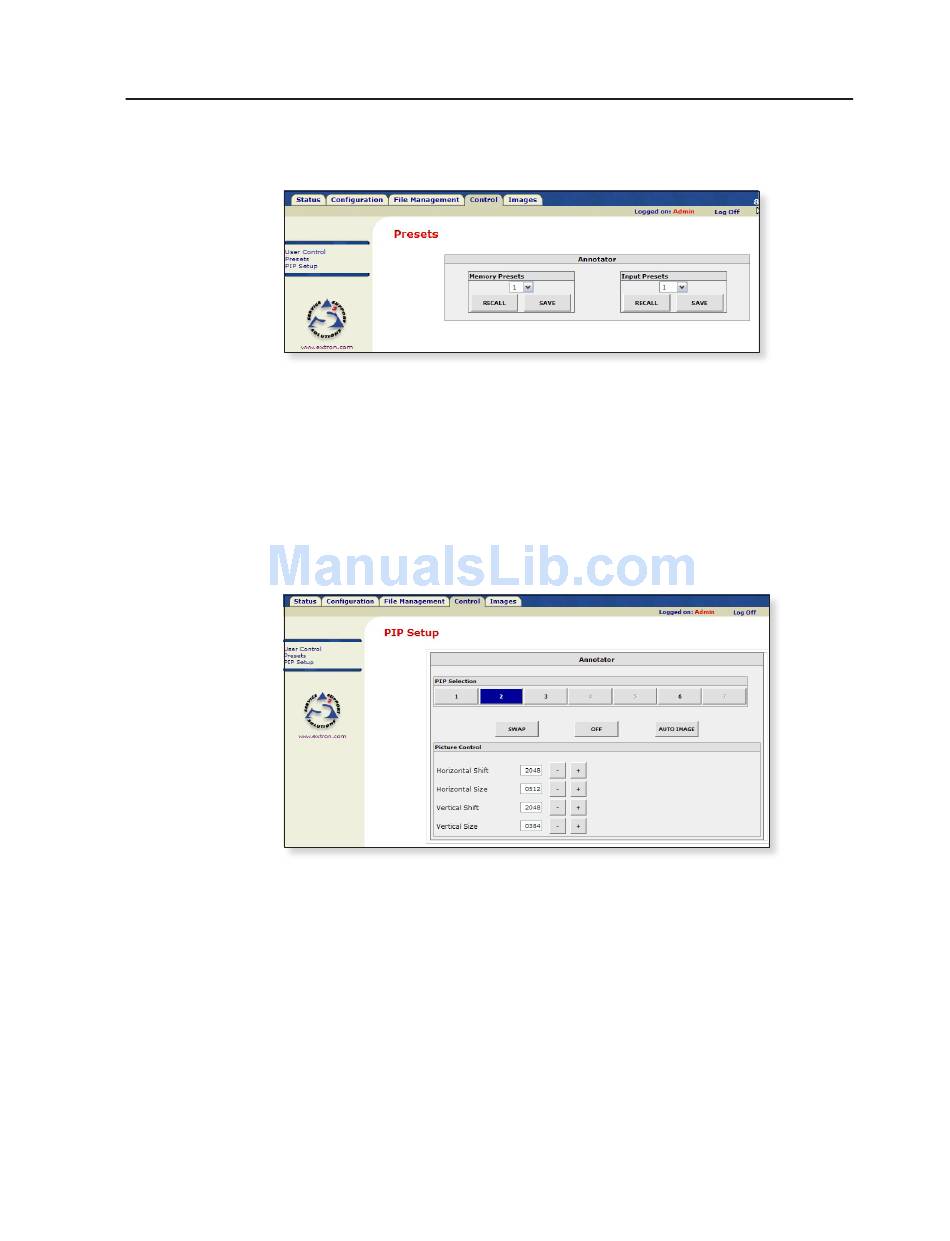

Figure 7–12 — Presets page
To save the current configuration to a memory or input preset, click on the
applicable drop-down box, scroll to the desired preset number and click Save.
To recall a memory or input preset as the current configuration, click on the
applicable drop-down box, scroll to the desired preset number and click Recall.
The current configuration is then replaced by the recalled configuration.

PIP page

With this page, Picture-in-Picture setup is possible by selecting the main image and
the secondary PIP image inputs.
Figure 7–13 — PIP page
To toggle between two inputs click Swap.
To turn off the PIP format click Off.
Auto image is applied to any selected input when Auto Image is clicked on.
