Extron electronics Annotator User Manual page 38

On Screen Annotation
The Extron Annotator is a high performance, hardware-based annotation processor
for video and computer-video sources. Annotating over motion video or still
images is possible using common touchscreen panels, as well as any standard
keyboard and/or mouse. The touchscreen panels can be connected by RS-232 or
USB. An RS-232 touchscreen device driver can be uploaded to ensure compatibility
with the Annotator. A number of touchscreen panels are supported.
For a full list of compatible panels visit
HelpLine if the device you wish to use is not listed.
RS-232 driver configuration
RS-232 driver configuration is possible using the Signal Processing Products
Control Program. The Touch Screen Panel Configuration option allows you to
configure a touchpanel so that it can be used with the Annotator.
Using a NULL RS-232 cable only, connect the touchscreen to the Annotator via
either of the two rear panel RS-232 comm ports.
To configure a touchpanel for use with the Annotator:
1.
2.
3.

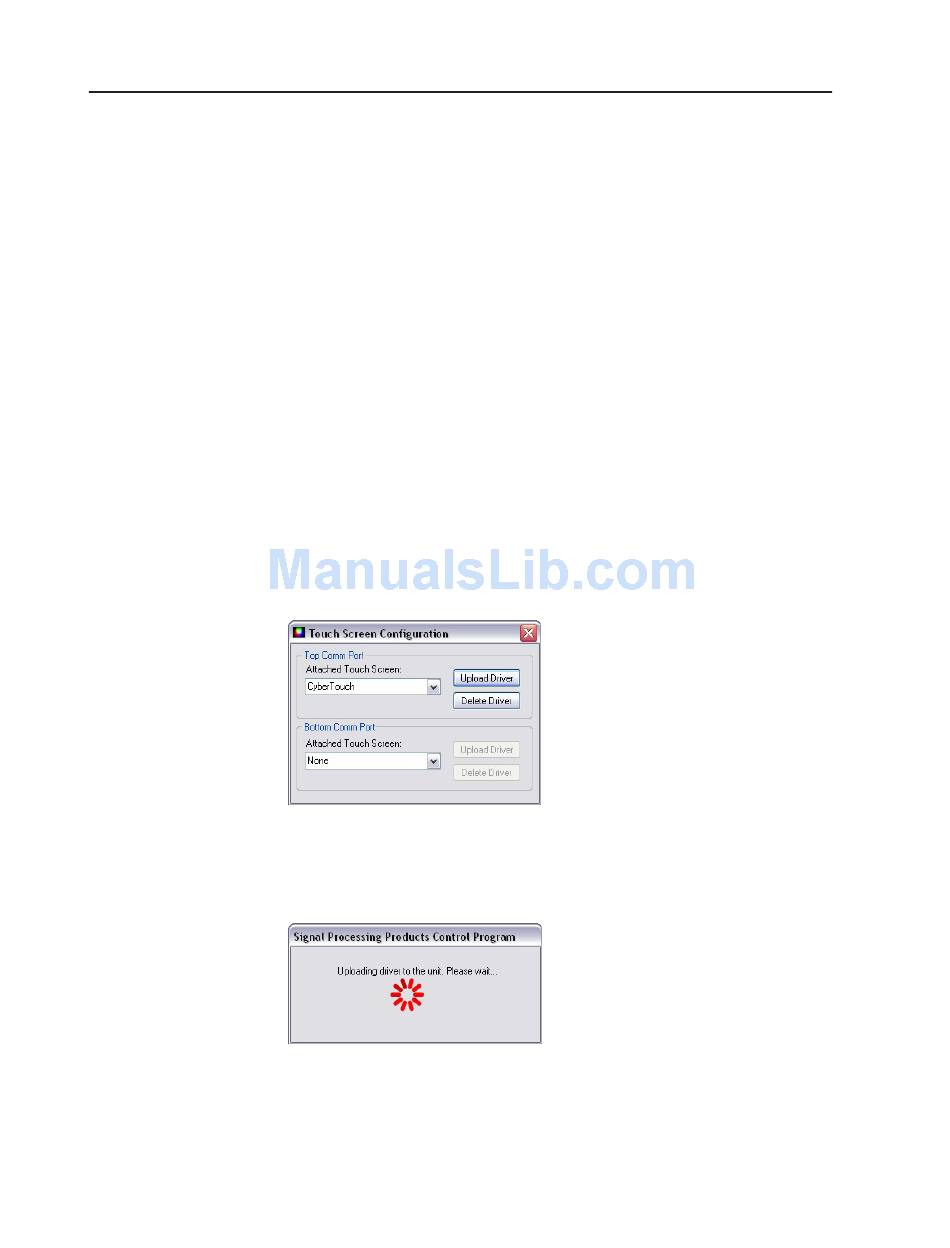

Figure 4-1 — Touch Screen Configuration screen
4.
To delete a driver from an attached touchpanel:
Follow steps 1 and 2 above if necessary.
In the appropriate section, depending on which COM port has the touchpanel
connected, click Delete Driver. This deletes the driver associated with the
touchpanel.
4-2 Annotator • On Screen Annotation
Open the SPPCP program on a PC connected to the Annotator by an IP
connection.
From the Tools menu, select RS-232 Touch Screen Panel Configuration. This
opens the Touch Screen Configuration window.
In the appropriate section, depending on which COM port has a touchpanel
connected, select the type of touchpanel from the drop-down list. This
enables the Upload Driver button.
Click Upload Driver. This uploads the appropriate touchpanel driver
A dialog box indicates progress. The box closes when the driver has been
uploaded.
www.extron.com. Contact the Extron
