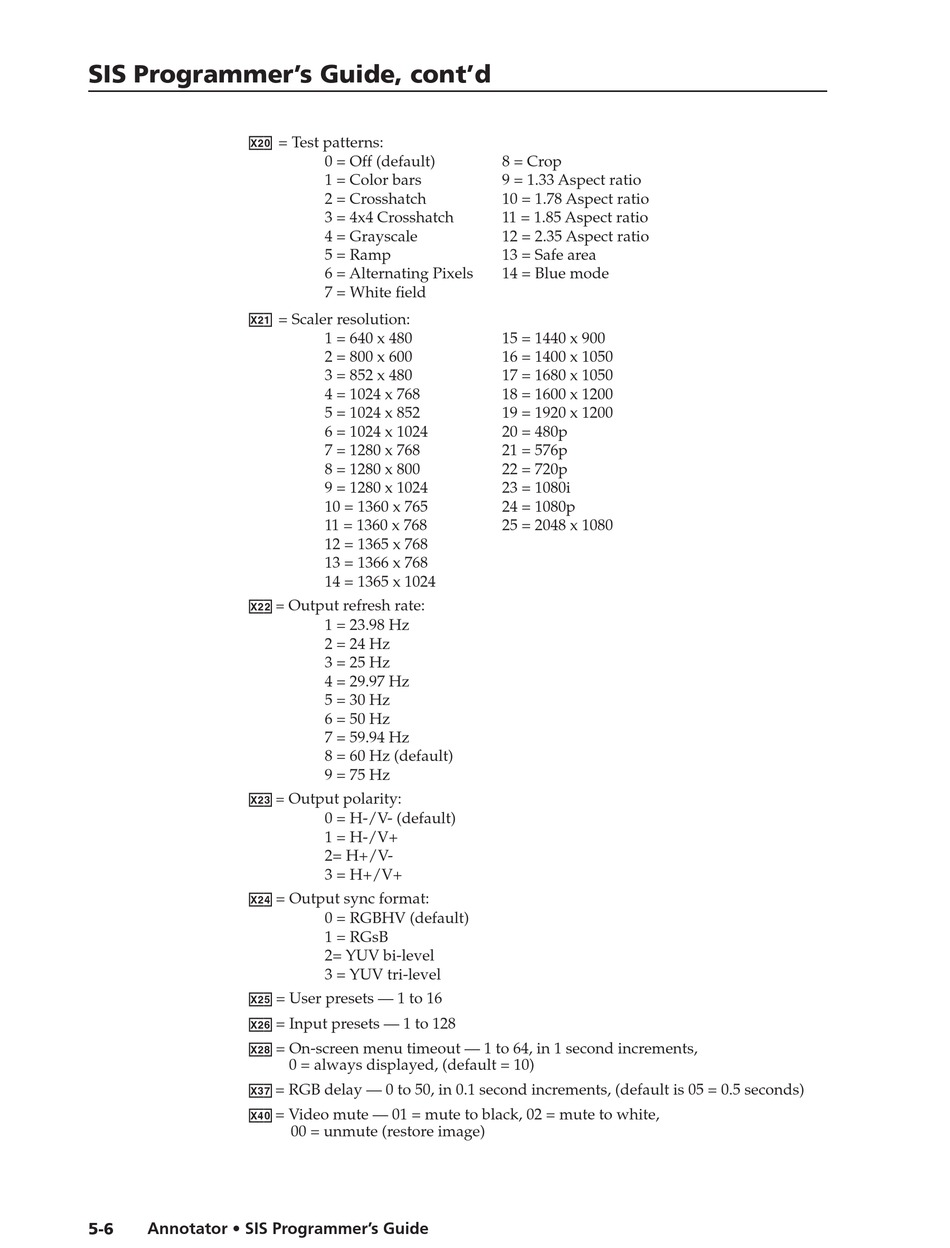

SIS Programmer's Guide, cont'd
X2)
X2!
X2@
X2#
X2$
X2%
X2^
X2*
X3&
X4)
5-6 Annotator • SIS Programmer's Guide
= Test patterns:
0 = Off (default)
1 = Color bars
2 = Crosshatch
3 = 4x4 Crosshatch
4 = Grayscale
5 = Ramp
6 = Alternating Pixels
7 = White field
= Scaler resolution:
1 = 640 x 480
2 = 800 x 600
3 = 852 x 480
4 = 1024 x 768
5 = 1024 x 852
6 = 1024 x 1024
7 = 1280 x 768
8 = 1280 x 800
9 = 1280 x 1024
10 = 1360 x 765
11 = 1360 x 768
12 = 1365 x 768
13 = 1366 x 768
14 = 1365 x 1024
Output refresh rate:
=
1 = 23.98 Hz
2 = 24 Hz
3 = 25 Hz
4 = 29.97 Hz
5 = 30 Hz
6 = 50 Hz
7 = 59.94 Hz
8 = 60 Hz (default)
9 = 75 Hz
= Output polarity:
0 = H-/V- (default)
1 = H-/V+
2= H+/V-
3 = H+/V+
= Output sync format:
0 = RGBHV (default)
1 = RGsB
2= YUV bi-level
3 = YUV tri-level
= User presets — 1 to 16
= Input presets — 1 to 128
= On-screen menu timeout — 1 to 64, in 1 second increments,
0 = always displayed, (default = 10)
= RGB delay — 0 to 50, in 0.1 second increments, (default is 05 = 0.5 seconds)
= Video mute — 01 = mute to black, 02 = mute to white,
00 = unmute (restore image)
8 = Crop
9 = 1.33 Aspect ratio
10 = 1.78 Aspect ratio
11 = 1.85 Aspect ratio
12 = 2.35 Aspect ratio
13 = Safe area
14 = Blue mode
15 = 1440 x 900
16 = 1400 x 1050
17 = 1680 x 1050
18 = 1600 x 1200
19 = 1920 x 1200
20 = 480p
21 = 576p
22 = 720p
23 = 1080i
24 = 1080p
25 = 2048 x 1080
