Introduction
About this Manual
This manual contains installation, configuration, and operating information for the
Extron Annotator. It covers configuring and operating the device using the front
panel controls and Simple Instruction Set (SIS
the displayed image. It also describes how to load and start up the Windows
based Signal Processing Products Control Program (SPPCP) and how to connect to
the built-in HTML pages, for operating the processor.
About the Annotator
The Extron Annotator is a high performance, hardware-based annotation processor
for video and computer-video sources. It allows the presenter to draw, point, or
add text to electronic presentation materials using a touchscreen and/or a keyboard
and mouse. The Annotator supports all common analog and digital video and data
formats, from composite video to high resolution DVI, RGBHV and optional
SDI/HD-SDI. Input video is scaled and made available in a variety of output
formats, including analog RGBHV and Extron MTP Twisted Pair, as well as optional
DVI, HD-SDI, or scan-converted video. The Annotator is ideal for applications
that require the overlay of graphics and text within A/V presentations, including
schools, law enforcement, medicine, telepresence, and live events.
Extron
Annotator
Annotation Graphics
Processor

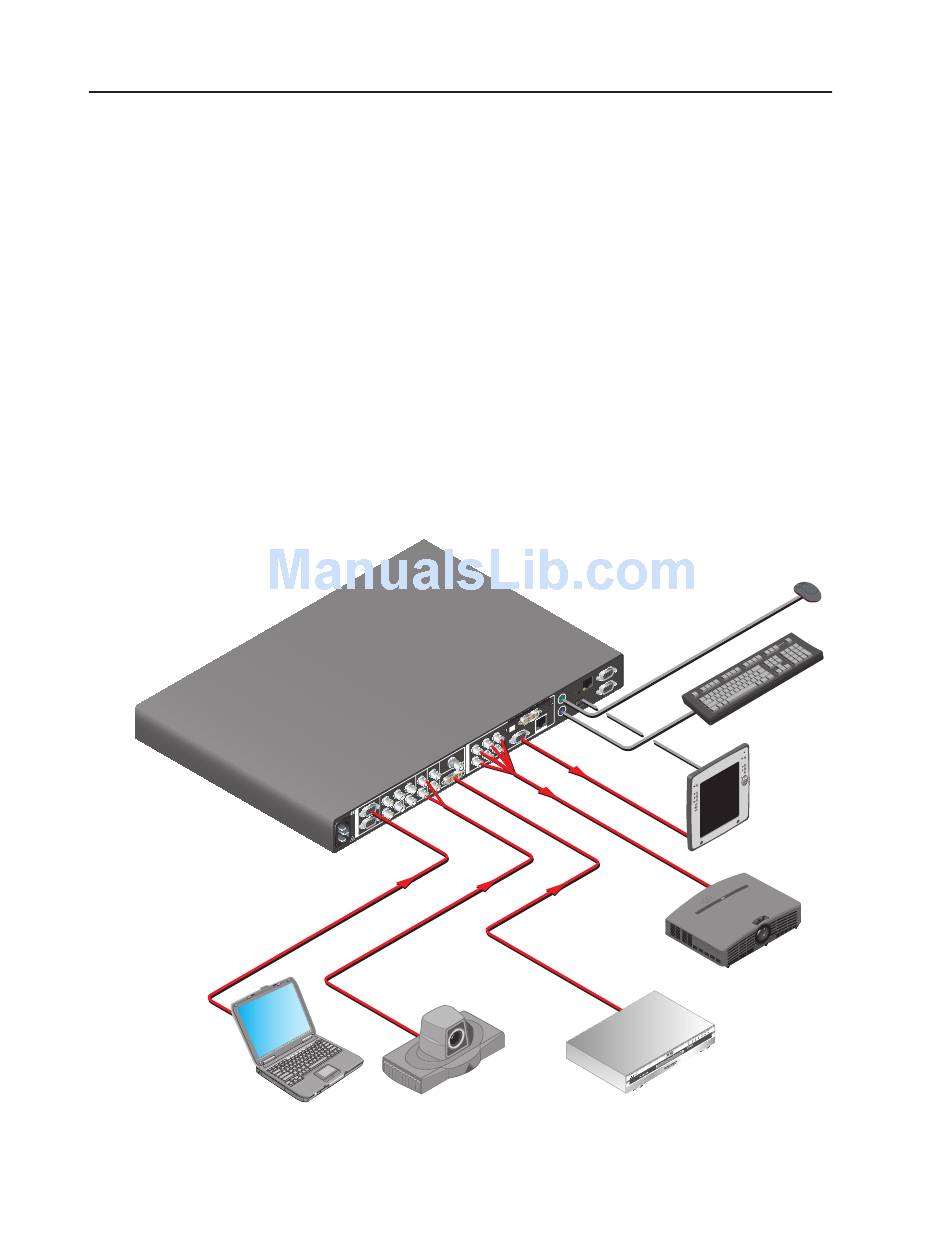

Figure 1-1 — Typical Annotator application
