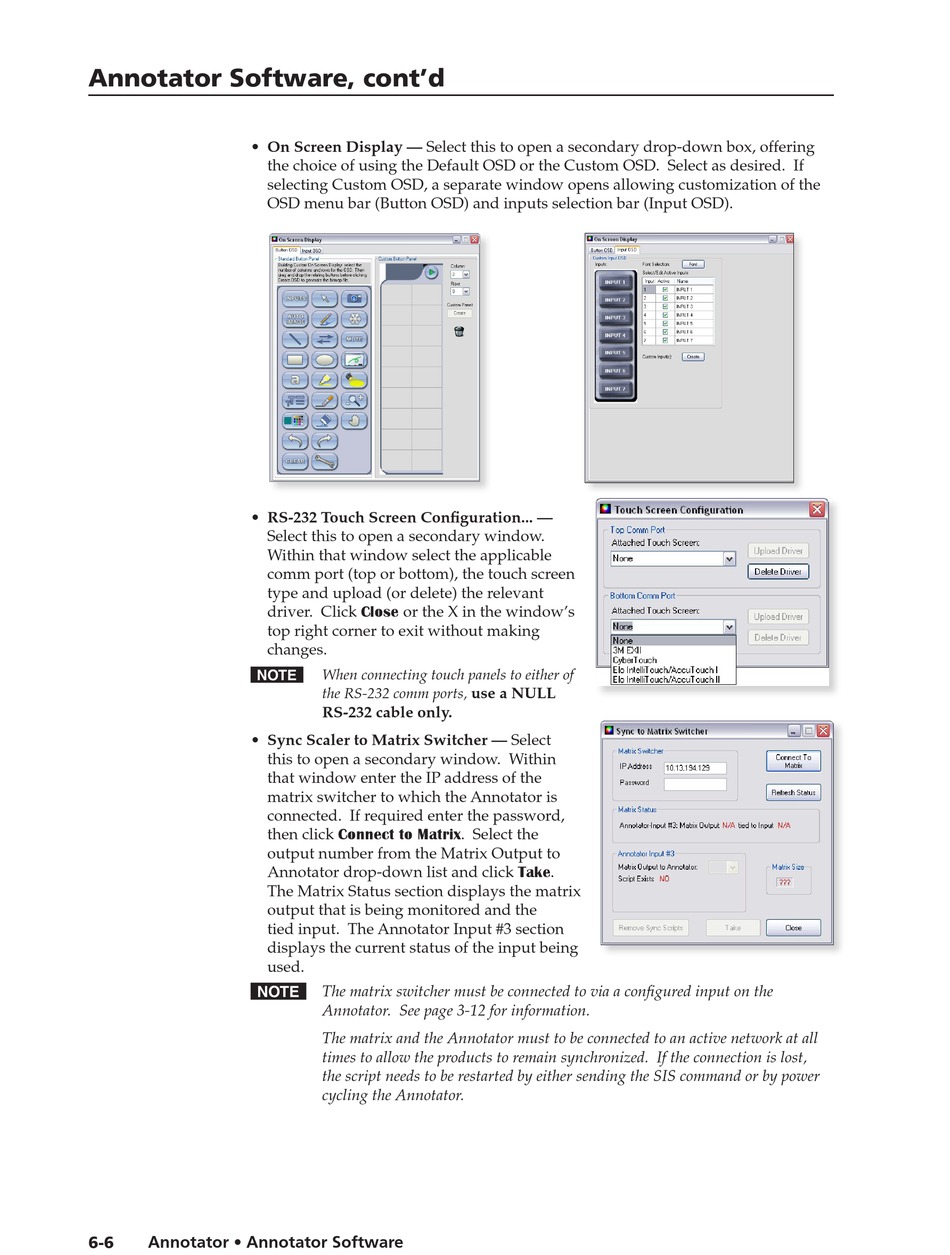

Annotator Software, cont'd
• On Screen Display — Select this to open a secondary drop-down box, offering
the choice of using the Default OSD or the Custom OSD. Select as desired. If
selecting Custom OSD, a separate window opens allowing customization of the
OSD menu bar (Button OSD) and inputs selection bar (Input OSD).
• RS-232 Touch Screen Configuration... —
Select this to open a secondary window.
Within that window select the applicable
comm port (top or bottom), the touch screen
type and upload (or delete) the relevant
driver. Click Close or the X in the window's
top right corner to exit without making
changes.
N
• Sync Scaler to Matrix Switcher — Select
this to open a secondary window. Within
that window enter the IP address of the
matrix switcher to which the Annotator is
connected. If required enter the password,
then click Connect to Matrix. Select the
output number from the Matrix Output to
Annotator drop-down list and click Take.
The Matrix Status section displays the matrix
output that is being monitored and the
tied input. The Annotator Input #3 section
displays the current status of the input being
used.
N The matrix switcher must be connected to via a configured input on the
6-6 Annotator • Annotator Software
When connecting touch panels to either of
use a NULL
the RS-232 comm ports,
RS-232 cable only.
Annotator. See page 3-12 for information.
The matrix and the Annotator must to be connected to an active network at all
times to allow the products to remain synchronized. If the connection is lost,
the script needs to be restarted by either sending the SIS command or by power
cycling the Annotator.
