To recall an image:
1. Press and release the Capture/Recall button. The LCD displays "IMAGE
RECALL".
2. Press Next to enter the recall menu. The LCD displays "Recall: <N/A>".
Use either Adjust knob to scroll through the saved images, to the desired
image.
Press Next to recall the image. The LCD displays "Recalling image Please
3.
wait" while the image is downloaded to the display. When the image is fully
downloaded, the LCD displays the name of the image and "Recalled", (for
example, "IMG05.bmp Recalled"). The recalled image is displayed on the
active display. Press Next to exit the Recall Image menu.

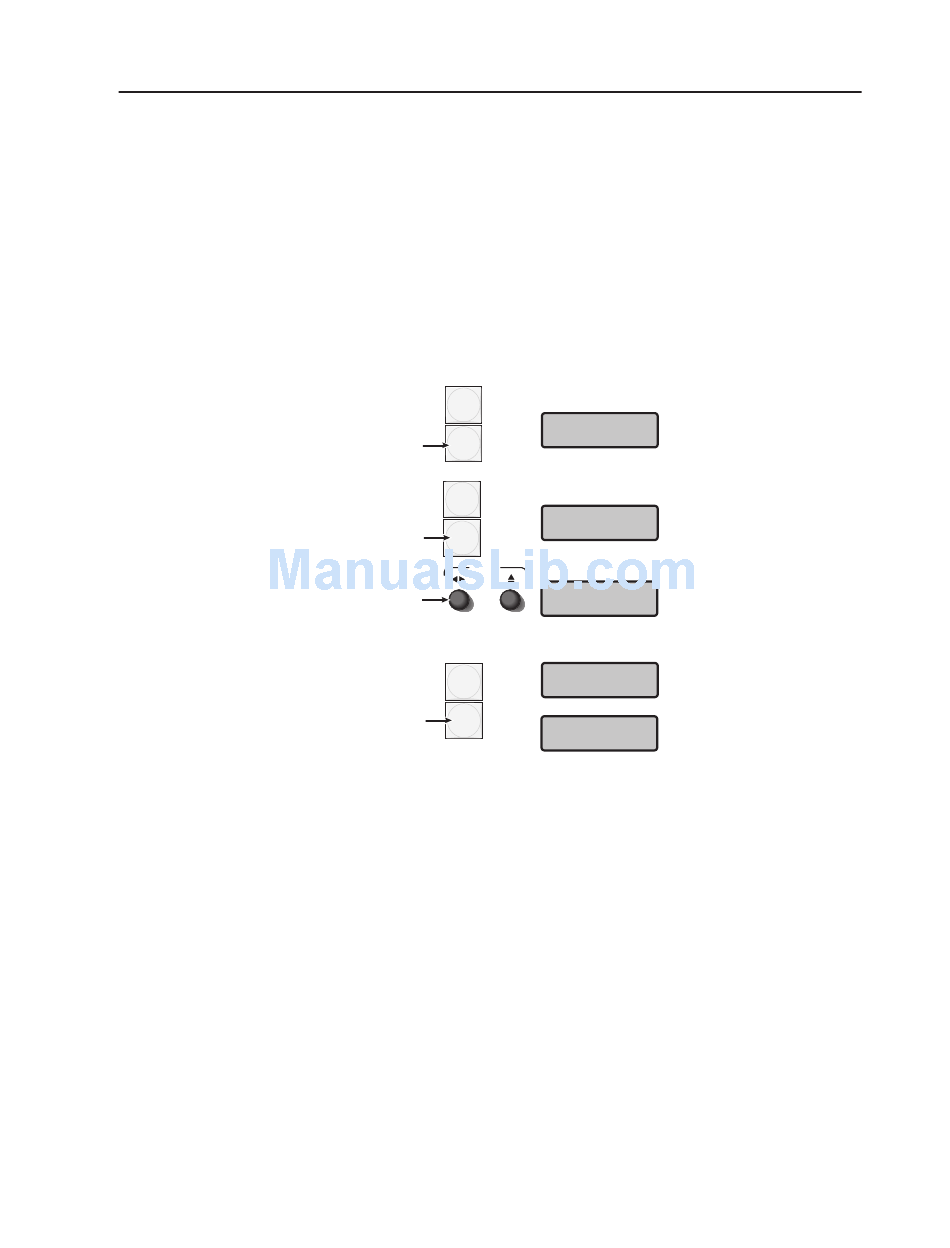

Step 1
Press and
release
Step 2
Press
Rotate either
Adjust knob.
Step 3
Press
To remove an image from the display:
Press and release the Capture/Recall button. The LCD displays "IMAGE
1.
RECALL".
Press Next. The LCD displays "Recall: <N/A>".
2.
3. With "Recall: <N/A>" displayed, press Next. The current image is removed
from the display, but not from the Annotator memory. To recall the image
follow the steps described in the "To recall an image" section, on this page.
LCD screen displays
UNDO/
CLEAR
RECALL
CAPTURE/
RECALL
LCD screen displays
MENU
Recall:
<N/A>
NEXT
LCD screen displays
ADJUST
Recall:
LCD screen displays
Recalling Image
MENU Please wait
then
NEXT
Recalled
