I/O Configuration tab

The I/O Configuration tab allows input and output configuration, as well as EDID

emulation settings to be adjusted.

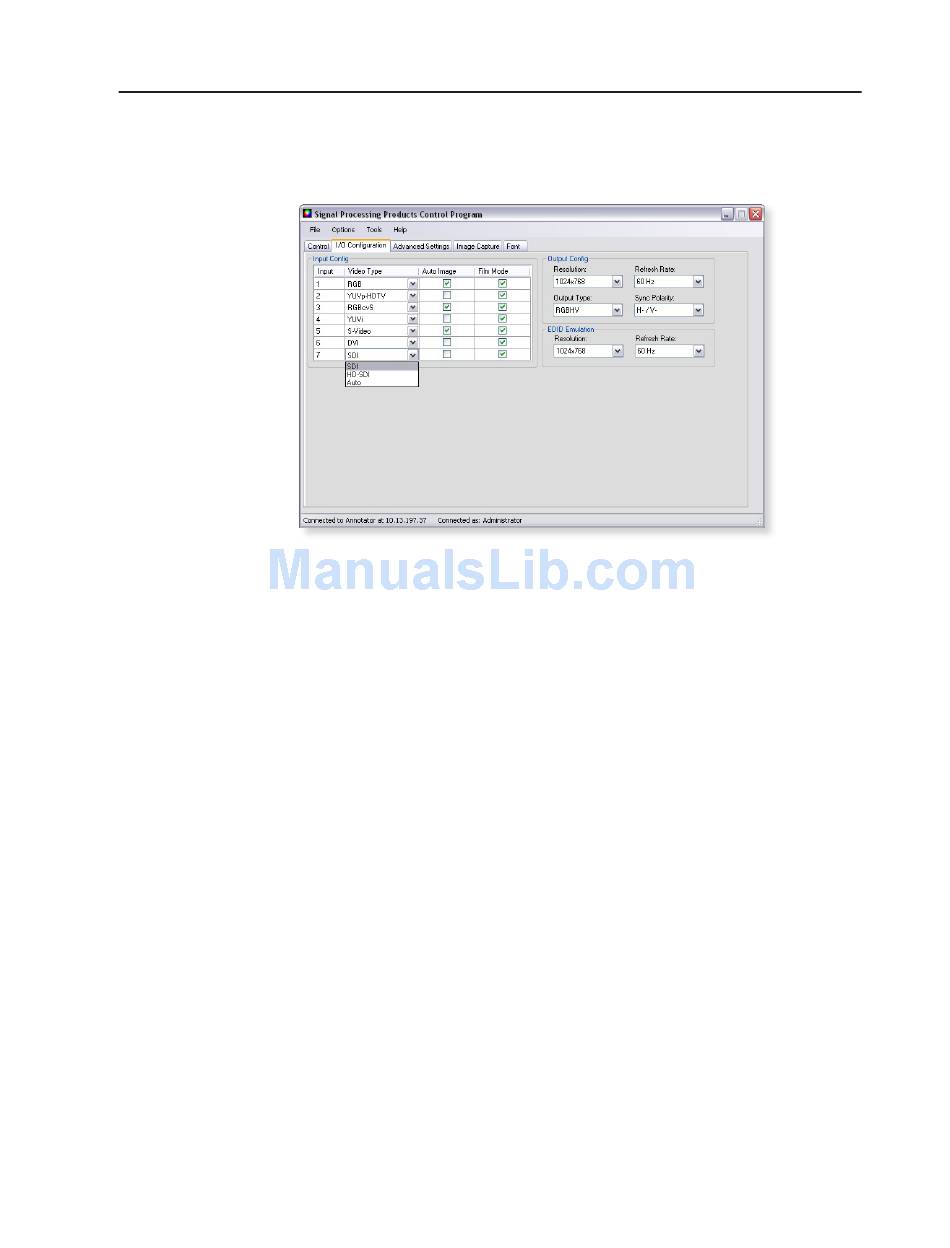

Figure 6-4 — The I/O Configuration tab screen

• Input Config — Set a suitable video type for an input by clicking on the drop-

down box (see input 7 above) and selecting a listed video type.

If Auto Image on an input is desired mark the check box.

Check Film Mode if 3:2 pull down detection for NTSC and 2:2 film detection for

PAL video sources is relevant.

• Output Config — To configure an output's resolution, refresh rate, output type,

or sync polarity, select the desired values from the respective drop-down list.

• EDID Emulation — To set resolution and refresh rates for EDID Emulation on

the VGA/DVI inputs, select the values from the drop-down list. Alternatively

select Match Output to automatically set the EDID to match the output resolution

and refresh rate.

Annotator • Annotator Software

6-11
