2. Installation

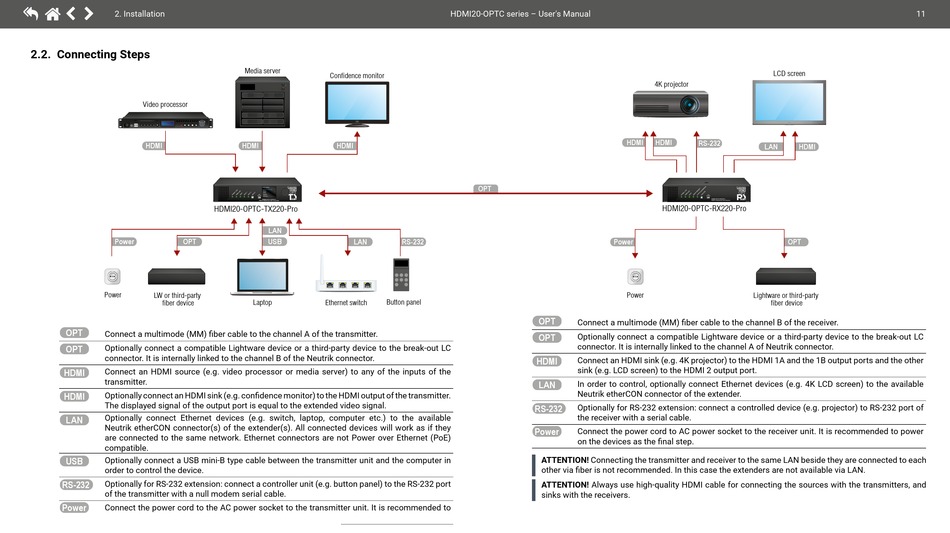

2.2. Connecting Steps
Video processor
HDMI
Power
Power
LW or third-party
fiber device
OPT
Connect a multimode (MM) fiber cable to the channel A of the transmitter.
OPT Optionally connect a compatible Lightware device or a third-party device to the break-out LC
connector. It is internally linked to the channel B of the Neutrik connector.
HDMI Connect an HDMI source (e.g. video processor or media server) to any of the inputs of the
transmitter.
HDMI Optionally connect an HDMI sink (e.g. confidence monitor) to the HDMI output of the transmitter.
The displayed signal of the output port is equal to the extended video signal.
Optionally connect Ethernet devices (e.g. switch, laptop, computer etc.) to the available
LAN
Neutrik etherCON connector(s) of the extender(s). All connected devices will work as if they
are connected to the same network. Ethernet connectors are not Power over Ethernet (PoE)
compatible.
USB Optionally connect a USB mini-B type cable between the transmitter unit and the computer in
order to control the device.
RS-232
Optionally for RS-232 extension: connect a controller unit (e.g. button panel) to the RS-232 port
of the transmitter with a null modem serial cable.
Power
Connect the power cord to the AC power socket to the transmitter unit. It is recommended to
power on the devices as the final step.
Media server
Confidence monitor
HDMI HDMI
MAIN MENU
> System Settings HDMI20
Ports OPTC
EDID
Health
USB
CONTROL Remote
220-PRO
HDMI20-OPTC-TX220-Pro
HDMI 2.0 Multimode Fiber Transmitter
HDMI20-OPTC-TX220-Pro
LAN
USB
OPT LAN
Laptop Ethernet switch
HDMI20-OPTC series – User's Manual
OPT
RS-232
Button panel
OPT
OPT
HDMI
LAN
RS-232
Power
ATTENTION! Connecting the transmitter and receiver to the same LAN beside they are connected to each
other via fiber is not recommended. In this case the extenders are not available via LAN.
ATTENTION! Always use high-quality HDMI cable for connecting the sources with the transmitters, and
sinks with the receivers.
4K projector
HDMI HDMI
RS-232
HDMI20
OPTC
USB
CONTROL
220-PRO
HDMI20-OPTC-RX220-Pro
HDMI 2.0 Multimode Fiber Receiver
HDMI20-OPTC-RX220-Pro
Power
Power Lightware or third-party
Connect a multimode (MM) fiber cable to the channel B of the receiver.
Optionally connect a compatible Lightware device or a third-party device to the break-out LC
connector. It is internally linked to the channel A of Neutrik connector.
Connect an HDMI sink (e.g. 4K projector) to the HDMI 1A and the 1B output ports and the other
sink (e.g. LCD screen) to the HDMI 2 output port.
In order to control, optionally connect Ethernet devices (e.g. 4K LCD screen) to the available
Neutrik etherCON connector of the extender.
Optionally for RS-232 extension: connect a controlled device (e.g. projector) to RS-232 port of
the receiver with a serial cable.
Connect the power cord to AC power socket to the receiver unit. It is recommended to power
on the devices as the final step.
