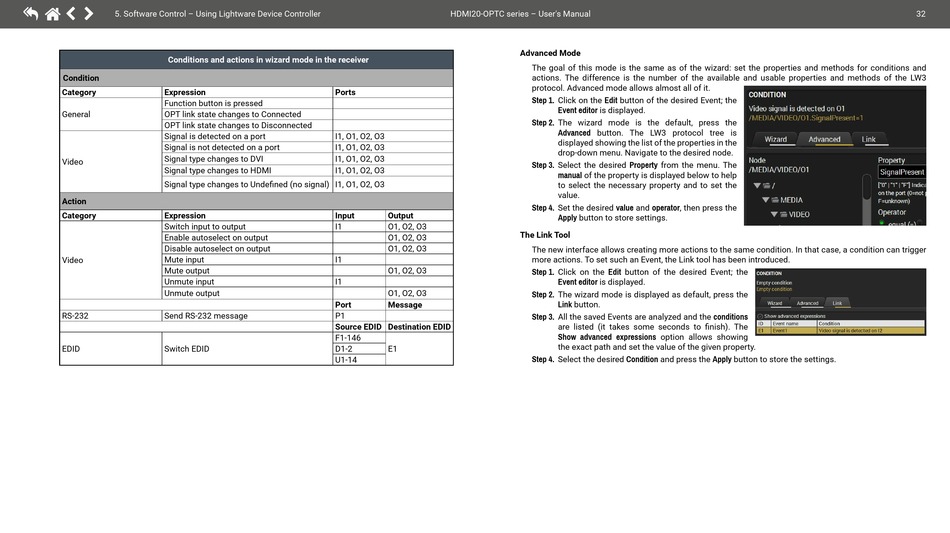

5. Software Control – Using Lightware Device Controller
Conditions and actions in wizard mode in the receiver
Condition
Category Expression
Function button is pressed
General OPT link state changes to Connected
OPT link state changes to Disconnected
Signal is detected on a port
Signal is not detected on a port
Signal type changes to DVI
Video
Signal type changes to HDMI
Signal type changes to Undefined (no signal) I1, O1, O2, O3
Action
Category Expression
Switch input to output
Enable autoselect on output
Disable autoselect on output
Mute input
Video
Mute output
Unmute input
Unmute output
RS-232 Send RS-232 message
EDID Switch EDID
HDMI20-OPTC series – User's Manual
Ports
I1, O1, O2, O3
I1, O1, O2, O3
I1, O1, O2, O3
I1, O1, O2, O3
Input Output
I1 O1, O2, O3
O1, O2, O3
O1, O2, O3
I1
O1, O2, O3
I1
O1, O2, O3
Port Message
P1
Source EDID Destination EDID
F1-146
D1-2 E1
U1-14
Advanced Mode
The goal of this mode is the same as of the wizard: set the properties and methods for conditions and
actions. The difference is the number of the available and usable properties and methods of the LW3
protocol. Advanced mode allows almost all of it.
Step 1. Click on the Edit button of the desired Event; the
Event editor is displayed.
Step 2. The wizard mode is the default, press the
Advanced button. The LW3 protocol tree is
displayed showing the list of the properties in the
drop-down menu. Navigate to the desired node.
Step 3. Select the desired Property from the menu. The
manual of the property is displayed below to help
to select the necessary property and to set the
value.
Step 4. Set the desired value and operator, then press the
Apply button to store settings.
The Link Tool
The new interface allows creating more actions to the same condition. In that case, a condition can trigger
more actions. To set such an Event, the Link tool has been introduced.
Step 1. Click on the Edit button of the desired Event; the
Event editor is displayed.
Step 2. The wizard mode is displayed as default, press the
Link button.
Step 3. All the saved Events are analyzed and the conditions
are listed (it takes some seconds to finish). The
Show advanced expressions option allows showing
the exact path and set the value of the given property.
Step 4. Select the desired Condition and press the Apply button to store the settings.
