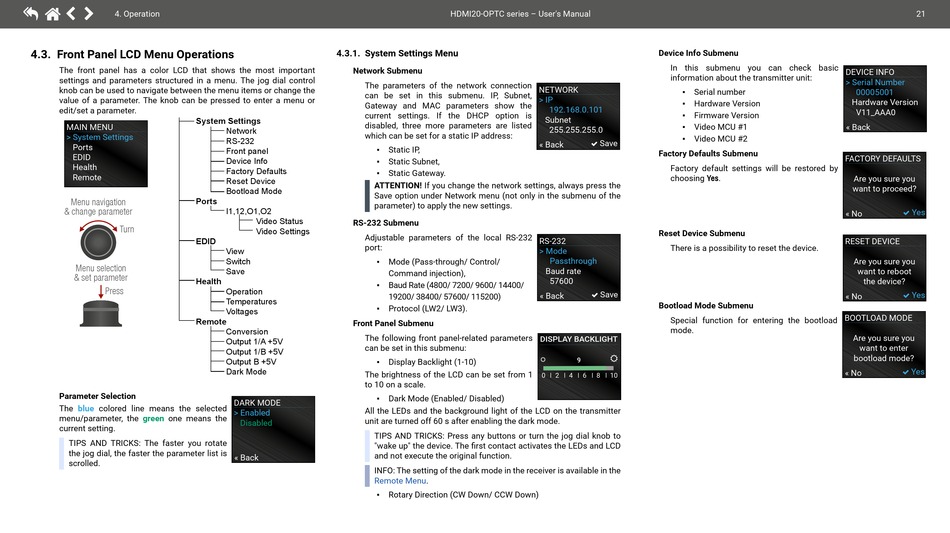

4.3. Front Panel LCD Menu Operations
The front panel has a color LCD that shows the most important
settings and parameters structured in a menu. The jog dial control
knob can be used to navigate between the menu items or change the
value of a parameter. The knob can be pressed to enter a menu or
edit/set a parameter.
MAIN MENU
> System Settings
Ports
EDID
Health
Remote
Menu navigation
& change parameter
Turn
Menu selection
& set parameter
Press
Parameter Selection
The blue colored line means the selected
menu/parameter, the green one means the
current setting.
TIPS AND TRICKS: The faster you rotate
the jog dial, the faster the parameter list is
scrolled.
4.3.1. System Settings Menu
Network Submenu
The parameters of the network connection
can be set in this submenu. IP, Subnet,
Gateway and MAC parameters show the
current settings. If the DHCP option is
System Settings
disabled, three more parameters are listed
Network
which can be set for a static IP address:
RS-232
Front panel
Device Info
Factory Defaults
Reset Device
ATTENTION! If you change the network settings, always press the
Bootload Mode
Save option under Network menu (not only in the submenu of the
Ports
parameter) to apply the new settings.
I1,12,O1,O2
Video Status
RS-232 Submenu
Video Settings
Adjustable parameters of the local RS-232
EDID
port:
View
Switch
Save
Health
Operation
Temperatures
Voltages
Remote
Front Panel Submenu
Conversion
The following front panel-related parameters
Output 1/A +5V
can be set in this submenu:
Output 1/B +5V
Output B +5V
Dark Mode
The brightness of the LCD can be set from 1
to 10 on a scale.
DARK MODE
All the LEDs and the background light of the LCD on the transmitter
> Enabled
unit are turned off 60 s after enabling the dark mode.
Disabled
TIPS AND TRICKS: Press any buttons or turn the jog dial knob to
"wake up" the device. The first contact activates the LEDs and LCD
and not execute the original function.
« Back
INFO: The setting of the dark mode in the receiver is available in the
Remote
HDMI20-OPTC series – User's Manual
NETWORK
> IP
192.168.0.101
Subnet
255.255.255.0
« Back
Static IP,
▪
Static Subnet,
▪
▪ Static Gateway.
RS-232
> Mode
Mode (Pass-through/ Control/ Passthrough
▪
Baud rate
Command injection),
57600
▪ Baud Rate (4800/ 7200/ 9600/ 14400/
19200/ 38400/ 57600/ 115200) « Back
Protocol (LW2/ LW3).
▪
DISPLAY BACKLIGHT
▪ Display Backlight (1-10)
☼
0 2
Dark Mode (Enabled/ Disabled)
▪
Menu.
Rotary Direction (CW Down/ CCW Down)
▪
Device Info Submenu
In this submenu you can check basic
information about the transmitter unit:
▪ Serial number
Hardware Version
▪
▪ Firmware Version
▪ Video MCU #1
Video MCU #2
▪
Save

Factory Defaults Submenu
Factory default settings will be restored by
choosing Yes.
Reset Device Submenu
There is a possibility to reset the device.
Save

Bootload Mode Submenu
Special function for entering the bootload
mode.
☼
9
4 6 8 10
21
DEVICE INFO
> Serial Number
00005001
Hardware Version
V11_AAA0
« Back
FACTORY DEFAULTS
Are you sure you
want to proceed?
Yes
« No

RESET DEVICE
Are you sure you
want to reboot
the device?
Yes
« No

BOOTLOAD MODE
Are you sure you
want to enter
bootload mode?
Yes
« No

