5. Software Control – Using Lightware Device Controller

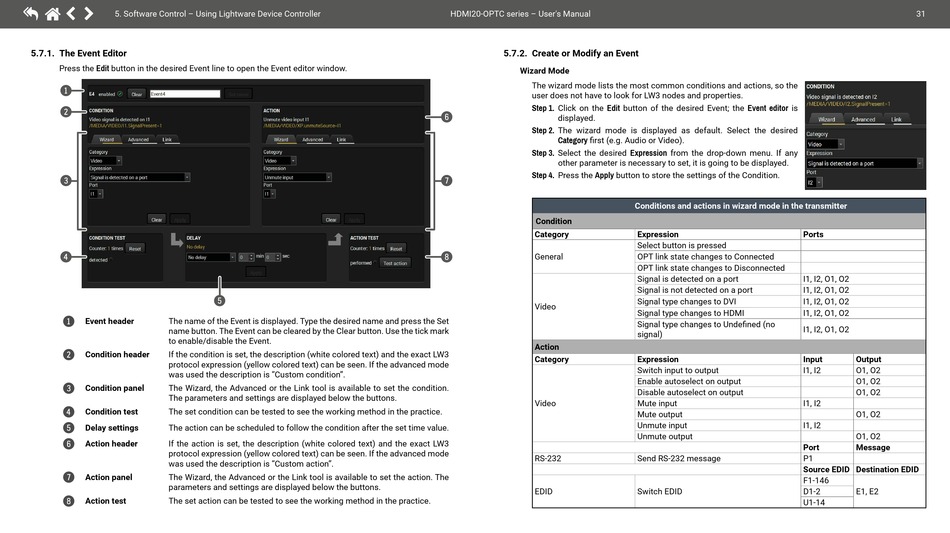

5.7.1. The Event Editor
Press the Edit button in the desired Event line to open the Event editor window.
1
2
3
4
1 Event header The name of the Event is displayed. Type the desired name and press the Set
name button. The Event can be cleared by the Clear button. Use the tick mark
to enable/disable the Event.
Condition header If the condition is set, the description (white colored text) and the exact LW3
2
protocol expression (yellow colored text) can be seen. If the advanced mode
was used the description is "Custom condition".
3 Condition panel The Wizard, the Advanced or the Link tool is available to set the condition.
The parameters and settings are displayed below the buttons.
Condition test The set condition can be tested to see the working method in the practice.
4
Delay settings The action can be scheduled to follow the condition after the set time value.
5
Action header If the action is set, the description (white colored text) and the exact LW3
6
protocol expression (yellow colored text) can be seen. If the advanced mode
was used the description is "Custom action".
7 Action panel The Wizard, the Advanced or the Link tool is available to set the action. The
parameters and settings are displayed below the buttons.
Action test The set action can be tested to see the working method in the practice.
8
5
HDMI20-OPTC series – User's Manual
5.7.2. Create or Modify an Event
Wizard Mode
The wizard mode lists the most common conditions and actions, so the
user does not have to look for LW3 nodes and properties.
Step 1. Click on the Edit button of the desired Event; the Event editor is
6
displayed.
Step 2. The wizard mode is displayed as default. Select the desired
Category first (e.g. Audio or Video).
Step 3. Select the desired Expression from the drop-down menu. If any
other parameter is necessary to set, it is going to be displayed.
Step 4. Press the Apply button to store the settings of the Condition.
7
Condition
Category
General
8
Video
Action
Category
Video
RS-232
EDID
Conditions and actions in wizard mode in the transmitter
Expression Ports
Select button is pressed
OPT link state changes to Connected
OPT link state changes to Disconnected
Signal is detected on a port I1, I2, O1, O2
Signal is not detected on a port I1, I2, O1, O2
Signal type changes to DVI I1, I2, O1, O2
Signal type changes to HDMI I1, I2, O1, O2
Signal type changes to Undefined (no
I1, I2, O1, O2
signal)
Expression Input
Switch input to output I1, I2
Enable autoselect on output
Disable autoselect on output
Mute input I1, I2
Mute output
Unmute input I1, I2
Unmute output
Port
Send RS-232 message P1
Source EDID Destination EDID
F1-146
Switch EDID D1-2
U1-14
31
Output
O1, O2
O1, O2
O1, O2
O1, O2
O1, O2
Message
E1, E2
