6. LW3 Programmers' Reference

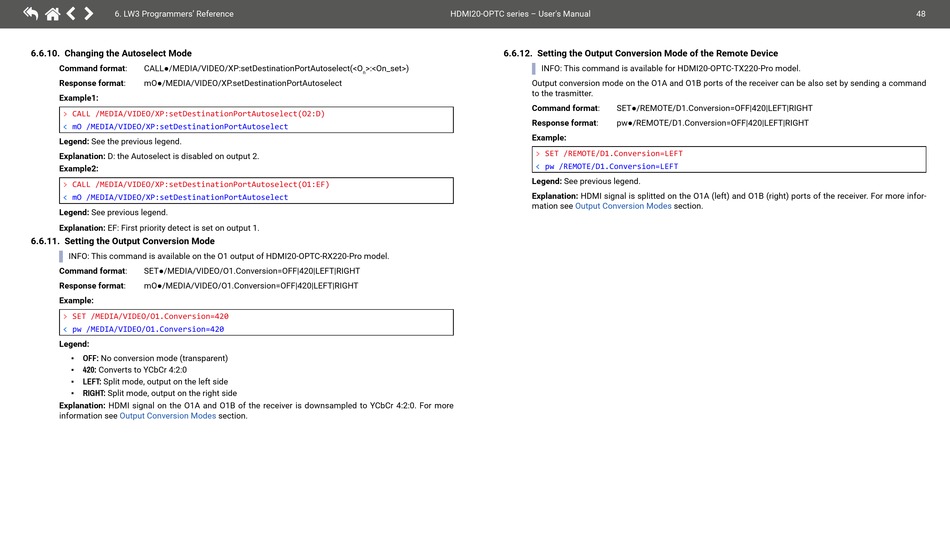

6.6.10. Changing the Autoselect Mode
Command format: CALL●/MEDIA/VIDEO/XP:setDestinationPortAutoselect(<O
Response format: mO●/MEDIA/VIDEO/XP.setDestinationPortAutoselect
Example1:
˃ CALL /MEDIA/VIDEO/XP:setDestinationPortAutoselect(O2:D)
˂ mO /MEDIA/VIDEO/XP:setDestinationPortAutoselect
Legend: See the previous legend.
Explanation: D: the Autoselect is disabled on output 2.
Example2:
˃ CALL /MEDIA/VIDEO/XP:setDestinationPortAutoselect(O1:EF)
˂ mO /MEDIA/VIDEO/XP:setDestinationPortAutoselect
Legend: See previous legend.
Explanation: EF: First priority detect is set on output 1.
6.6.11. Setting the Output Conversion Mode
INFO: This command is available on the O1 output of HDMI20-OPTC-RX220-Pro model.
Command format: SET●/MEDIA/VIDEO/O1.Conversion=OFF|420|LEFT|RIGHT
Response format: mO●/MEDIA/VIDEO/O1.Conversion=OFF|420|LEFT|RIGHT
Example:
˃ SET /MEDIA/VIDEO/O1.Conversion=420
˂ pw /MEDIA/VIDEO/O1.Conversion=420
Legend:
▪ OFF: No conversion mode (transparent)
420: Converts to YCbCr 4:2:0
▪
LEFT: Split mode, output on the left side
▪
▪ RIGHT: Split mode, output on the right side
Explanation: HDMI signal on the O1A and O1B of the receiver is downsampled to YCbCr 4:2:0. For more
information see Output Conversion Modes
>:<On_set>)
n
section.
HDMI20-OPTC series – User's Manual
6.6.12. Setting the Output Conversion Mode of the Remote Device
INFO: This command is available for HDMI20-OPTC-TX220-Pro model.
Output conversion mode on the O1A and O1B ports of the receiver can be also set by sending a command
to the trasmitter.
Command format: SET●/REMOTE/D1.Conversion=OFF|420|LEFT|RIGHT
Response format: pw●/REMOTE/D1.Conversion=OFF|420|LEFT|RIGHT
Example:
˃ SET /REMOTE/D1.Conversion=LEFT
˂ pw /REMOTE/D1.Conversion=LEFT
Legend: See previous legend.
Explanation: HDMI signal is splitted on the O1A (left) and O1B (right) ports of the receiver. For more infor-
mation see Output Conversion Modes section.
48
