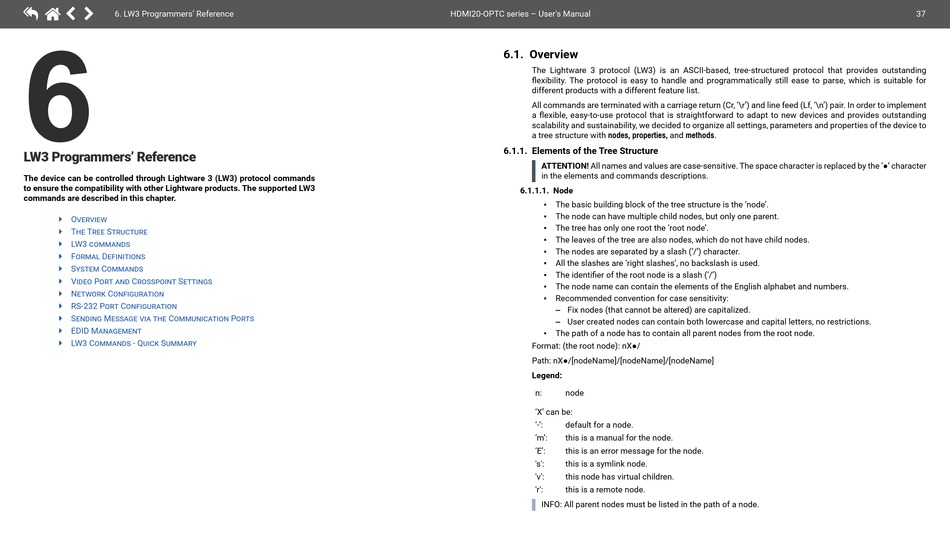

6.1. Overview
The Lightware 3 protocol (LW3) is an ASCII-based, tree-structured protocol that provides outstanding
flexibility. The protocol is easy to handle and programmatically still ease to parse, which is suitable for
different products with a different feature list.
All commands are terminated with a carriage return (Cr, '\r') and line feed (Lf, '\n') pair. In order to implement
a flexible, easy-to-use protocol that is straightforward to adapt to new devices and provides outstanding
scalability and sustainability, we decided to organize all settings, parameters and properties of the device to
a tree structure with nodes, properties, and methods.
6.1.1. Elements of the Tree Structure
ATTENTION! All names and values are case-sensitive. The space character is replaced by the '●' character
in the elements and commands descriptions.
6.1.1.1. Node
The basic building block of the tree structure is the 'node'.
▪
▪ The node can have multiple child nodes, but only one parent.
▪ The tree has only one root the 'root node'.
The leaves of the tree are also nodes, which do not have child nodes.
▪
The nodes are separated by a slash ('/') character.
▪
▪ All the slashes are 'right slashes', no backslash is used.
The identifier of the root node is a slash ('/')
▪
The node name can contain the elements of the English alphabet and numbers.
▪
▪ Recommended convention for case sensitivity:
– Fix nodes (that cannot be altered) are capitalized.
– User created nodes can contain both lowercase and capital letters, no restrictions.
▪ The path of a node has to contain all parent nodes from the root node.
Format: (the root node): nX●/
Path: nX●/[nodeName]/[nodeName]/[nodeName]
Legend:
n: node
'X' can be:
'-': default for a node.
'm': this is a manual for the node.
'E': this is an error message for the node.
's': this is a symlink node.
'v': this node has virtual children.
'r': this is a remote node.
INFO: All parent nodes must be listed in the path of a node.
