6. LW3 Programmers' Reference

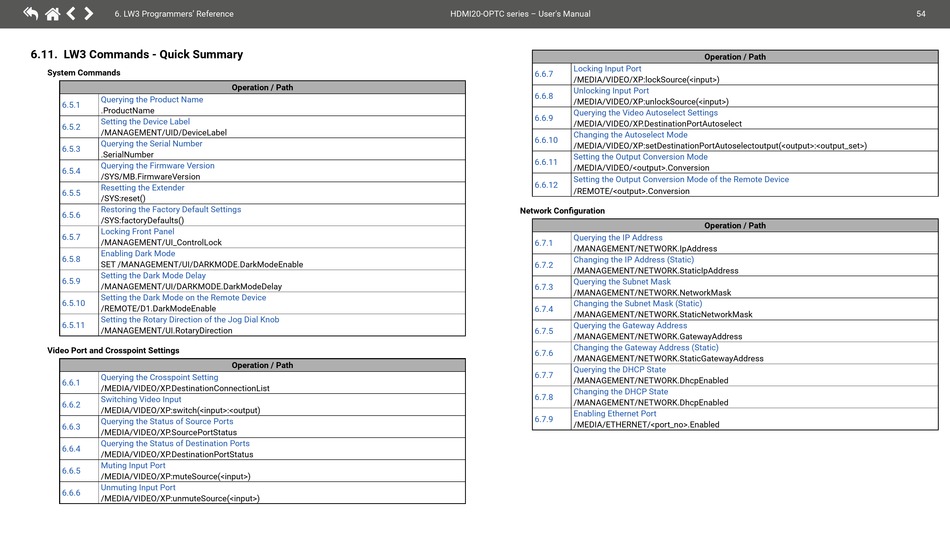

6.11. LW3 Commands - Quick Summary
System Commands
Querying the Product Name
6.5.1
.ProductName
Setting the Device Label
6.5.2
/MANAGEMENT/UID/DeviceLabel
Querying the Serial Number
6.5.3
.SerialNumber
Querying the Firmware Version
6.5.4
/SYS/MB.FirmwareVersion
Resetting the Extender
6.5.5
/SYS:reset()
Restoring the Factory Default Settings
6.5.6
/SYS:factoryDefaults()
Locking Front Panel
6.5.7
/MANAGEMENT/UI_ControlLock
Enabling Dark Mode
6.5.8
SET /MANAGEMENT/UI/DARKMODE.DarkModeEnable
Setting the Dark Mode Delay
6.5.9
/MANAGEMENT/UI/DARKMODE.DarkModeDelay
Setting the Dark Mode on the Remote Device
6.5.10
/REMOTE/D1.DarkModeEnable
Setting the Rotary Direction of the Jog Dial Knob
6.5.11
/MANAGEMENT/UI.RotaryDirection
Video Port and Crosspoint Settings
Querying the Crosspoint Setting
6.6.1
/MEDIA/VIDEO/XP.DestinationConnectionList
Switching Video Input
6.6.2
/MEDIA/VIDEO/XP:switch(<input>:<output)
Querying the Status of Source Ports
6.6.3
/MEDIA/VIDEO/XP.SourcePortStatus
Querying the Status of Destination Ports
6.6.4
/MEDIA/VIDEO/XP.DestinationPortStatus
Muting Input Port
6.6.5
/MEDIA/VIDEO/XP:muteSource(<input>)
Unmuting Input Port
6.6.6
/MEDIA/VIDEO/XP:unmuteSource(<input>)
Operation / Path
Operation / Path
HDMI20-OPTC series – User's Manual
Locking Input Port
6.6.7
/MEDIA/VIDEO/XP:lockSource(<input>)
Unlocking Input Port
6.6.8
/MEDIA/VIDEO/XP:unlockSource(<input>)
Querying the Video Autoselect Settings
6.6.9
/MEDIA/VIDEO/XP.DestinationPortAutoselect
Changing the Autoselect Mode
6.6.10
/MEDIA/VIDEO/XP:setDestinationPortAutoselectoutput(<output>:<output_set>)
Setting the Output Conversion Mode
6.6.11
/MEDIA/VIDEO/<output>.Conversion
Setting the Output Conversion Mode of the Remote Device
6.6.12
/REMOTE/<output>.Conversion
Network Configuration
Querying the IP Address
6.7.1
/MANAGEMENT/NETWORK.IpAddress
Changing the IP Address (Static)
6.7.2
/MANAGEMENT/NETWORK.StaticIpAddress
Querying the Subnet Mask
6.7.3
/MANAGEMENT/NETWORK.NetworkMask
Changing the Subnet Mask (Static)
6.7.4
/MANAGEMENT/NETWORK.StaticNetworkMask
Querying the Gateway Address
6.7.5
/MANAGEMENT/NETWORK.GatewayAddress
Changing the Gateway Address (Static)
6.7.6
/MANAGEMENT/NETWORK.StaticGatewayAddress
Querying the DHCP State
6.7.7
/MANAGEMENT/NETWORK.DhcpEnabled
Changing the DHCP State
6.7.8
/MANAGEMENT/NETWORK.DhcpEnabled
Enabling Ethernet Port
6.7.9
/MEDIA/ETHERNET/<port_no>.Enabled
Operation / Path
Operation / Path
