1. Introduction

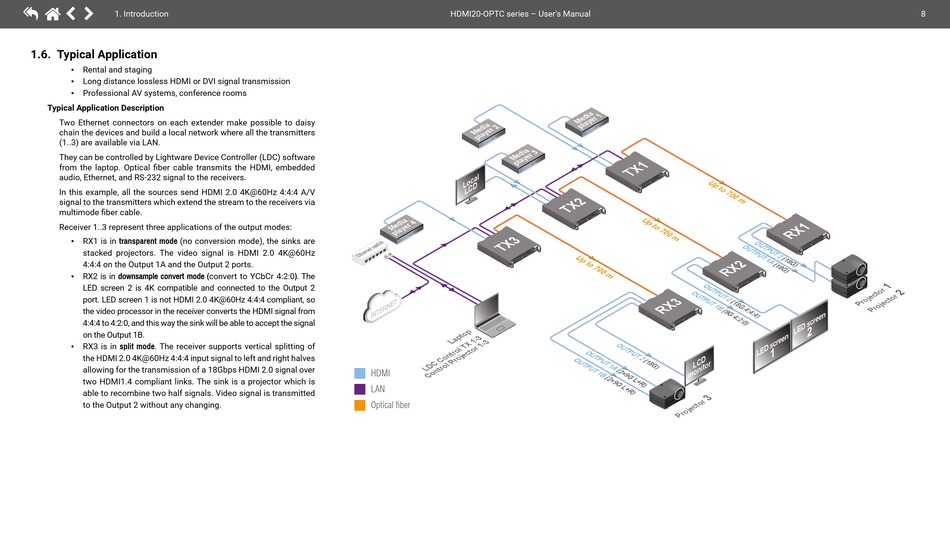

1.6. Typical Application
Rental and staging
▪
▪ Long distance lossless HDMI or DVI signal transmission
▪ Professional AV systems, conference rooms
Typical Application Description
Two Ethernet connectors on each extender make possible to daisy
chain the devices and build a local network where all the transmitters
(1..3) are available via LAN.
They can be controlled by Lightware Device Controller (LDC) software
from the laptop. Optical fiber cable transmits the HDMI, embedded
audio, Ethernet, and RS-232 signal to the receivers.
In this example, all the sources send HDMI 2.0 4K@60Hz 4:4:4 A/V
signal to the transmitters which extend the stream to the receivers via
multimode fiber cable.
Receiver 1..3 represent three applications of the output modes:
▪ RX1 is in transparent mode (no conversion mode), the sinks are
stacked projectors. The video signal is HDMI 2.0 4K@60Hz
4:4:4 on the Output 1A and the Output 2 ports.
▪ RX2 is in downsample convert mode (convert to YCbCr 4:2:0). The
LED screen 2 is 4K compatible and connected to the Output 2
port. LED screen 1 is not HDMI 2.0 4K@60Hz 4:4:4 compliant, so
the video processor in the receiver converts the HDMI signal from
4:4:4 to 4:2:0, and this way the sink will be able to accept the signal
on the Output 1B.
▪ RX3 is in split mode. The receiver supports vertical splitting of
the HDMI 2.0 4K@60Hz 4:4:4 input signal to left and right halves
allowing for the transmission of a 18Gbps HDMI 2.0 signal over
two HDMI1.4 compliant links. The sink is a projector which is
able to recombine two half signals. Video signal is transmitted
to the Output 2 without any changing.
HDMI20-OPTC series – User's Manual
c a l
L o
D
L C
I20
T X HDM OP TC
0-Pro itter
USB OL 0-OPT Fiber C-TX22 Transm
CONTR 2.0 HDMI2 Multim ode
HDMI
T
N E
E R
I N T
HDMI
LAN
Optical fiber
I20
HDM TC
T X OP
itter
USB OL C-TX22 Fiber Transm 0-Pro
CONTR 0-OPT Multim HDMI2 ode
HDMI 2.0
HDM TC I20
OP T X
itter
USB OL Fiber C-TX22 Transm 0-Pro
CONTR HDMI2 Multim 0-OPT ode
HDMI 2.0
I20
OP R X HDM TC
20-Pro Receiv er
CONTR USB OL 0-OPT C-RX2 Fiber ode
HDMI HDMI2 2.0 Multim
TC I20
R X HDM OP
er
USB OL 20-Pro Fiber Receiv
CONTR 0-OPT C-RX2 Multim ode
HDMI HDMI2 2.0
D s
L E
D
L C o r
n i t
m o
8
HDM I20 TC
R X OP
er
USB OL C-RX2 ode Fiber 20-Pro Receiv
CONTR HDMI2 2.0 0-OPT Multim
HDMI
e n
c r e
D s
L E
2
e n
c r e
1
