3. Product Overview

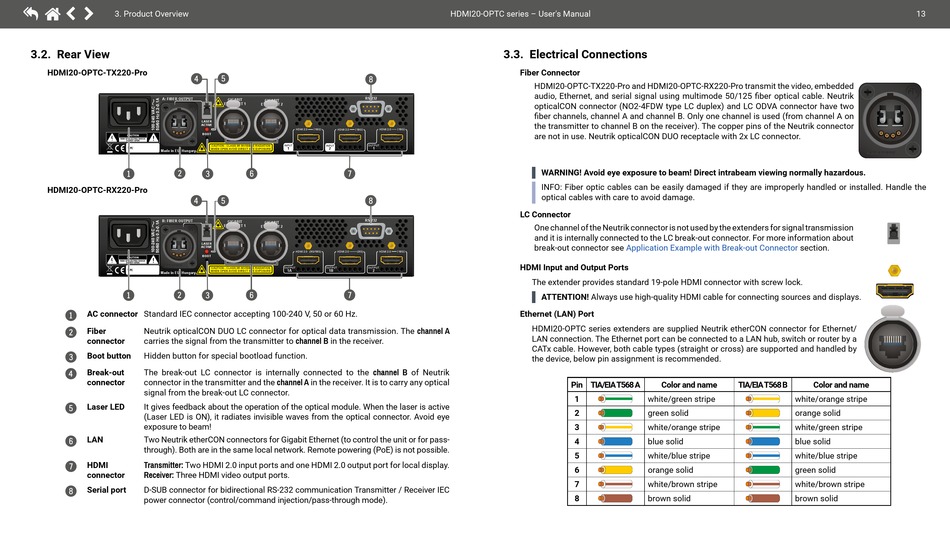

3.2. Rear View
HDMI20-OPTC-TX220-Pro
A: FIBER OUTPUT
Sn:
Made in EU, Hungary
2 3
1
HDMI20-OPTC-RX220-Pro
B: FIBER OUTPUT
Sn:
Made in EU, Hungary
1 2 3
AC connector Standard IEC connector accepting 100-240 V, 50 or 60 Hz.
1
Fiber Neutrik opticalCON DUO LC connector for optical data transmission. The channel A
2
connector carries the signal from the transmitter to channel B in the receiver.
Boot button Hidden button for special bootload function.
3
Break-out The break-out LC connector is internally connected to the channel B of Neutrik
4
connector connector in the transmitter and the channel A in the receiver. It is to carry any optical
signal from the break-out LC connector.
Laser LED It gives feedback about the operation of the optical module. When the laser is active
5
(Laser LED is ON), it radiates invisible waves from the optical connector. Avoid eye
exposure to beam!
LAN Two Neutrik etherCON connectors for Gigabit Ethernet (to control the unit or for pass-
6
through). Both are in the same local network. Remote powering (PoE) is not possible.
HDMI Transmitter: Two HDMI 2.0 input ports and one HDMI 2.0 output port for local display.
7
connector Receiver: Three HDMI video output ports.
Serial port D-SUB connector for bidirectional RS-232 communication Transmitter / Receiver IEC
8
power connector (control/command injection/pass-through mode).
4 5
8
B RS-232
GIGABIT
GIGABIT
ETHERNET 1
ETHERNET 2
LASER
ACTIVE
HDMI 2.0 ( 18G ) HDMI 2.0 ( 18G )
BOOT
INPUT INPUT OUTPUT
CAUTION - CLASS 3R INVISIBLE RADIATION
1 2
WHEN OPEN AVOID DIRECT EYE EXPOSURE
6 7
4 5 8
A RS-232
GIGABIT
GIGABIT
ETHERNET 1
ETHERNET 2
LASER
ACTIVE
HDMI 2.0 (9G/18G) HDMI 2.0 (9G)
BOOT
OUTPUT OUTPUT OUTPUT
CAUTION - CLASS 3R INVISIBLE RADIATION
1A 1B
WHEN OPEN AVOID DIRECT EYE EXPOSURE
6 7
HDMI20-OPTC series – User's Manual
3.3. Electrical Connections
Fiber Connector
HDMI20-OPTC-TX220-Pro and HDMI20-OPTC-RX220-Pro transmit the video, embedded
audio, Ethernet, and serial signal using multimode 50/125 fiber optical cable. Neutrik
opticalCON connector (NO2-4FDW type LC duplex) and LC ODVA connector have two
fiber channels, channel A and channel B. Only one channel is used (from channel A on
the transmitter to channel B on the receiver). The copper pins of the Neutrik connector
HDMI 2.0 ( 18G )
are not in use. Neutrik opticalCON DUO receptacle with 2x LC connector.
1
WARNING! Avoid eye exposure to beam! Direct intrabeam viewing normally hazardous.
INFO: Fiber optic cables can be easily damaged if they are improperly handled or installed. Handle the
optical cables with care to avoid damage.
LC Connector
One channel of the Neutrik connector is not used by the extenders for signal transmission
and it is internally connected to the LC break-out connector. For more information about
break-out connector see
HDMI 2.0 ( 18G )
HDMI Input and Output Ports
2
The extender provides standard 19-pole HDMI connector with screw lock.
ATTENTION! Always use high-quality HDMI cable for connecting sources and displays.
Ethernet (LAN) Port
HDMI20-OPTC series extenders are supplied Neutrik etherCON connector for Ethernet/
LAN connection. The Ethernet port can be connected to a LAN hub, switch or router by a
CATx cable. However, both cable types (straight or cross) are supported and handled by
the device, below pin assignment is recommended.
Application Example with Break-out Connector
Pin TIA/EIA T568 A Color and name TIA/EIA T568 B
1 white/green stripe
2 green solid
3 white/orange stripe
4 blue solid
5 white/blue stripe
6 orange solid
7 white/brown stripe
8 brown solid
13
section.
Color and name
white/orange stripe
orange solid
white/green stripe
blue solid
white/blue stripe
green solid
white/brown stripe
brown solid
