10. Appendix

10
Appendix

Specification

Ý
Content of Backup File
Ý
Factory Default Settings
Ý
Maximum Extension Distances
Ý
Factory EDID List
Ý
Mechanical Drawings
Ý
Further Information
Ý
HDMI20-OPTC series – User's Manual

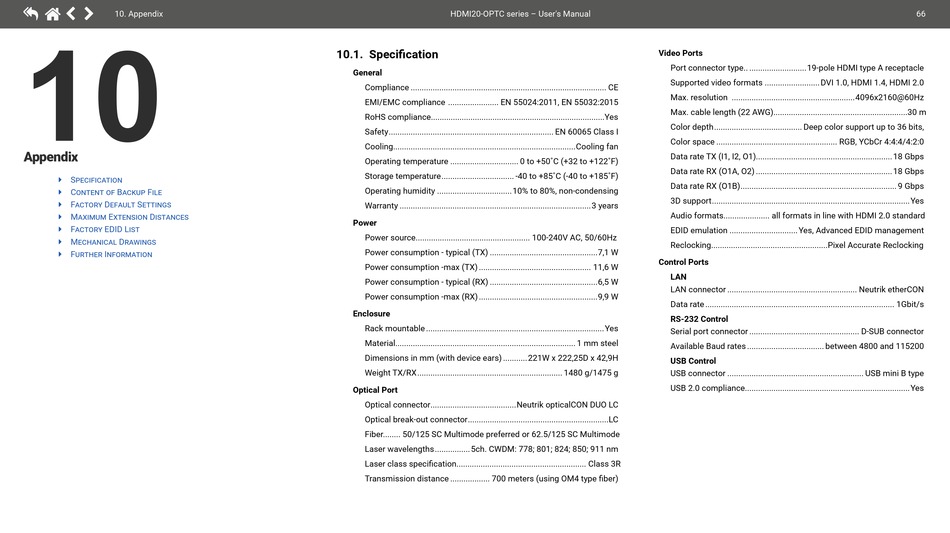

10.1. Specification
General
Compliance ......................................................................................... CE
EMI/EMC compliance ....................... EN 55024:2011, EN 55032:2015
RoHS compliance...............................................................................Yes
Safety ........................................................................... EN 60065 Class I
Cooling...................................................................................Cooling fan
Operating temperature ............................... 0 to +50˚C (+32 to +122˚F)
Storage temperature ................................. -40 to +85˚C (-40 to +185˚F)
Operating humidity ..................................10% to 80%, non-condensing
Warranty .......................................................................................3 years
Power
Power source.................................................... 100-240V AC, 50/60Hz
Power consumption - typical (TX) .................................................7,1 W
Power consumption -max (TX) ................................................... 11,6 W
Power consumption - typical (RX) .................................................6,5 W
Power consumption -max (RX) ......................................................9,9 W
Enclosure
Rack mountable .................................................................................Yes
Material .................................................................................. 1 mm steel
Dimensions in mm (with device ears) ...........221W x 222,25D x 42,9H
Weight TX/RX .................................................................. 1480 g/1475 g
Optical Port
Optical connector .......................................Neutrik opticalCON DUO LC
Optical break-out connector ................................................................LC
Fiber........ 50/125 SC Multimode preferred or 62.5/125 SC Multimode
Laser wavelengths ................ 5ch. CWDM: 778; 801; 824; 850; 911 nm
Laser class specification........................................................... Class 3R
Transmission distance .................. 700 meters (using OM4 type fiber)
Video Ports
Port connector type.. ..........................19-pole HDMI type A receptacle
Supported video formats ......................... DVI 1.0, HDMI 1.4, HDMI 2.0
Max. resolution ........................................................4096x2160@60Hz
Max. cable length (22 AWG).............................................................30 m
Color depth ........................................ Deep color support up to 36 bits,
Color space ....................................................... RGB, YCbCr 4:4:4/4:2:0
Data rate TX (I1, I2, O1).............................................................. 18 Gbps
Data rate RX (O1A, O2) .............................................................. 18 Gbps
Data rate RX (O1B) ....................................................................... 9 Gbps
3D support ..........................................................................................Yes
Audio formats..................... all formats in line with HDMI 2.0 standard
EDID emulation ............................... Yes, Advanced EDID management
Reclocking.....................................................Pixel Accurate Reclocking
Control Ports
LAN
LAN connector ........................................................... Neutrik etherCON
Data rate ...................................................................................... 1Gbit/s
RS-232 Control
Serial port connector .................................................. D-SUB connector
Available Baud rates ................................... between 4800 and 115200
USB Control
USB connector .............................................................. USB mini B type
USB 2.0 compliance...........................................................................Yes
