3. Product Overview

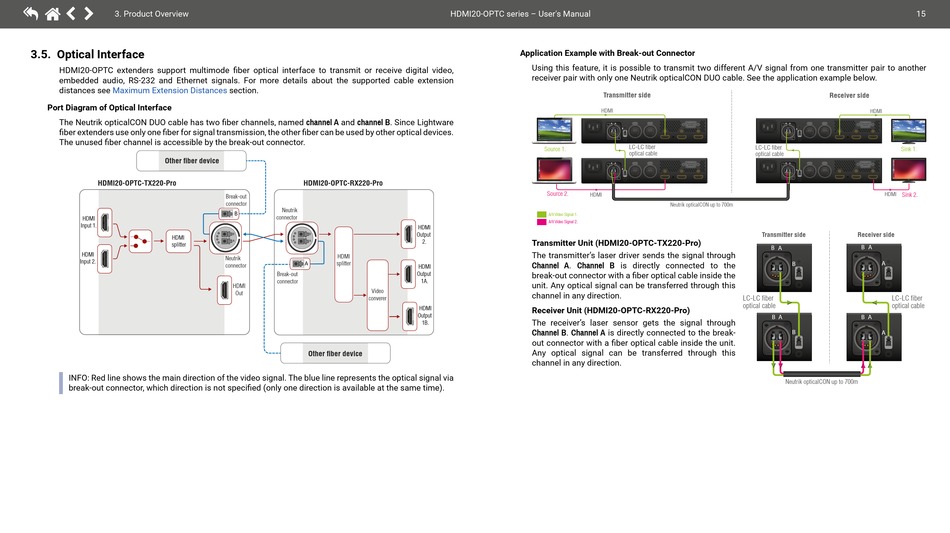

3.5. Optical Interface
HDMI20-OPTC extenders support multimode fiber optical interface to transmit or receive digital video,
embedded audio, RS-232 and Ethernet signals. For more details about the supported cable extension
distances see Maximum Extension Distances
Port Diagram of Optical Interface
The Neutrik opticalCON DUO cable has two fiber channels, named channel A and channel B. Since Lightware
fiber extenders use only one fiber for signal transmission, the other fiber can be used by other optical devices.
The unused fiber channel is accessible by the break-out connector.
Other ber device
HDMI20-OPTC-TX220-Pro
HDMI
Input 1.
HDMI
splitter
HDMI
Input 2.
INFO: Red line shows the main direction of the video signal. The blue line represents the optical signal via
break-out connector, which direction is not specified (only one direction is available at the same time).
section.
HDMI20-OPTC-RX220-Pro
Break-out
connector
Neutrik
B
connector
B B
A A
HDMI
Neutrik
splitter
A
connector
Break-out
connector
HDMI
Video
Out
converer
Other ber device
HDMI20-OPTC series – User's Manual
Application Example with Break-out Connector
Using this feature, it is possible to transmit two different A/V signal from one transmitter pair to another
receiver pair with only one Neutrik opticalCON DUO cable. See the application example below.
Source 1.
Source 2.
HDMI
A/V Video Signal 1.
A/V Video Signal 2.
HDMI
Output
2. Transmitter Unit (HDMI20-OPTC-TX220-Pro)
The transmitter's laser driver sends the signal through
Channel A. Channel B is directly connected to the
HDMI
break-out connector with a fiber optical cable inside the
Output
1A.
unit. Any optical signal can be transferred through this
channel in any direction.
HDMI Receiver Unit (HDMI20-OPTC-RX220-Pro)
Output
The receiver's laser sensor gets the signal through
1B.
Channel B. Channel A is directly connected to the break-
out connector with a fiber optical cable inside the unit.
Any optical signal can be transferred through this
channel in any direction.
Transmitter side
HDMI
B A
B
LC-LC fiber
LC-LC fiber
optical cable optical cable
B A
B
Neutrik opticalCON up to 700m
Transmitter side
B A
LC-LC fiber
optical cable
B A
15
Receiver side
HDMI
B A
A
Sink 1.
B A
A
HDMI Sink 2.
Receiver side
B A
B A
LC-LC fiber
optical cable
B A
B A
Neutrik opticalCON up to 700m
