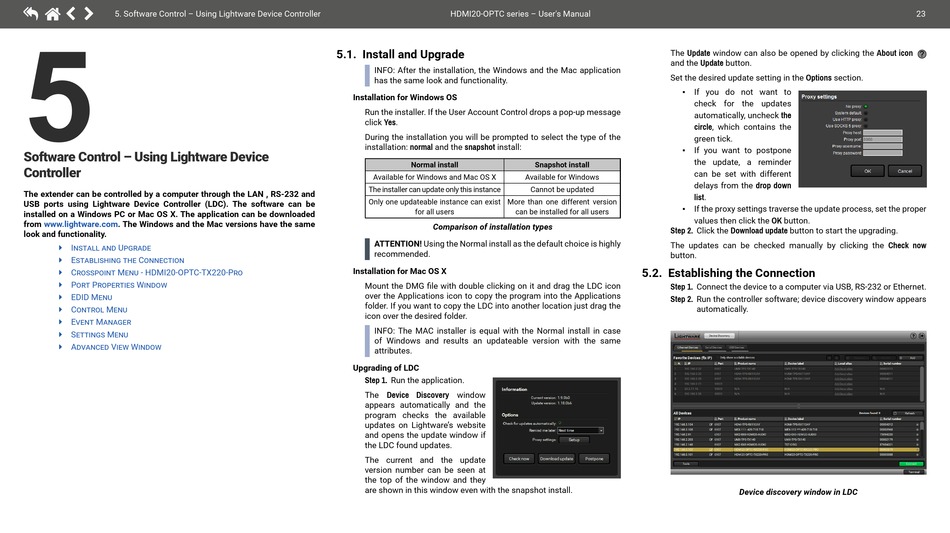

5. Software Control – Using Lightware Device Controller
5
S oftware Control – Using Lightware Device
Controller
The extender can be controlled by a computer through the LAN , RS-232 and
USB ports using Lightware Device Controller (LDC). The software can be
installed on a Windows PC or Mac OS X. The application can be downloaded
from www.lightware.com. The Windows and the Mac versions have the same
look and functionality.

Install and Upgrade

Ý

Establishing the Connection

Ý
Crosspoint Menu - HDMI20-OPTC-TX220-Pro
Ý
Port Properties Window
Ý
EDID Menu
Ý
Control Menu
Ý
Event Manager
Ý
Settings Menu
Ý
Advanced View Window
Ý
HDMI20-OPTC series – User's Manual
5.1. Install and Upgrade
INFO: After the installation, the Windows and the Mac application
has the same look and functionality.
Installation for Windows OS
Run the installer. If the User Account Control drops a pop-up message
click Yes.
During the installation you will be prompted to select the type of the
installation: normal and the snapshot install:
Normal install
Available for Windows and Mac OS X
The installer can update only this instance
Only one updateable instance can exist More than one different version
for all users can be installed for all users
Comparison of installation types
ATTENTION! Using the Normal install as the default choice is highly
recommended.
Installation for Mac OS X
Mount the DMG file with double clicking on it and drag the LDC icon
over the Applications icon to copy the program into the Applications
folder. If you want to copy the LDC into another location just drag the
icon over the desired folder.
INFO: The MAC installer is equal with the Normal install in case
of Windows and results an updateable version with the same
attributes.
Upgrading of LDC
Step 1. Run the application.
The Device Discovery window
appears automatically and the
program checks the available
updates on Lightware's website
and opens the update window if
the LDC found updates.
The current and the update
version number can be seen at
the top of the window and they
are shown in this window even with the snapshot install.
The Update window can also be opened by clicking the About icon
and the Update button.
Set the desired update setting in the Options section.
▪ If you do not want to
check for the updates
automatically, uncheck the
circle, which contains the
green tick.
▪ If you want to postpone
the update, a reminder
Snapshot install
can be set with different
Available for Windows
delays from the drop down
Cannot be updated
list.
▪ If the proxy settings traverse the update process, set the proper
values then click the OK button.
Step 2. Click the Download update button to start the upgrading.
The updates can be checked manually by clicking the Check now
button.
5.2. Establishing the Connection
Step 1. Connect the device to a computer via USB, RS-232 or Ethernet.
Step 2. Run the controller software; device discovery window appears
automatically.
23
Device discovery window in LDC
?
