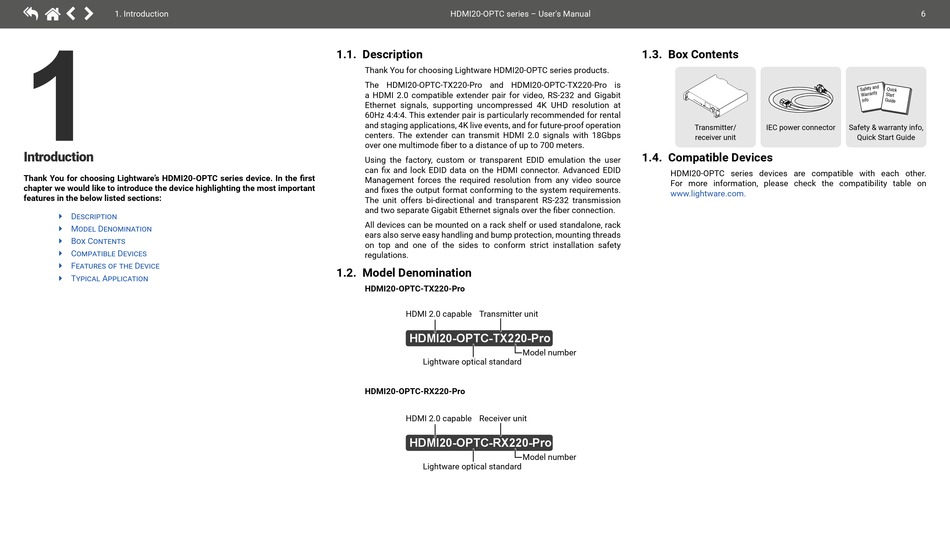

1. Introduction

1
I ntroduction
Thank You for choosing Lightware's HDMI20-OPTC series device. In the first
chapter we would like to introduce the device highlighting the most important
features in the below listed sections:

Description

Ý

Model Denomination

Ý

Box Contents

Ý

Compatible Devices

Ý
Features of the Device
Ý
Typical Application
Ý
HDMI20-OPTC series – User's Manual
1.1. Description
Thank You for choosing Lightware HDMI20-OPTC series products.
The HDMI20-OPTC-TX220-Pro and HDMI20-OPTC-TX220-Pro is
a HDMI 2.0 compatible extender pair for video, RS-232 and Gigabit
Ethernet signals, supporting uncompressed 4K UHD resolution at
60Hz 4:4:4. This extender pair is particularly recommended for rental
and staging applications, 4K live events, and for future-proof operation
centers. The extender can transmit HDMI 2.0 signals with 18Gbps
over one multimode fiber to a distance of up to 700 meters.
Using the factory, custom or transparent EDID emulation the user
can fix and lock EDID data on the HDMI connector. Advanced EDID
Management forces the required resolution from any video source
and fixes the output format conforming to the system requirements.
The unit offers bi-directional and transparent RS-232 transmission
and two separate Gigabit Ethernet signals over the fiber connection.
All devices can be mounted on a rack shelf or used standalone, rack
ears also serve easy handling and bump protection, mounting threads
on top and one of the sides to conform strict installation safety
regulations.
1.2. Model Denomination
HDMI20-OPTC-TX220-Pro
HDMI 2.0 capable Transmitter unit
HDMI20-OPTC-TX220-Pro
Lightware optical standard
HDMI20-OPTC-RX220-Pro
HDMI 2.0 capable Receiver unit
HDMI20-OPTC-RX220-Pro
Lightware optical standard
1.3. Box Contents
Transmitter/
receiver unit
1.4. Compatible Devices
HDMI20-OPTC series devices are compatible with each other.
For more information, please check the compatibility table on
www.lightware.com.
Model number
Model number
6
IEC power connector Safety & warranty info,
Quick Start Guide
