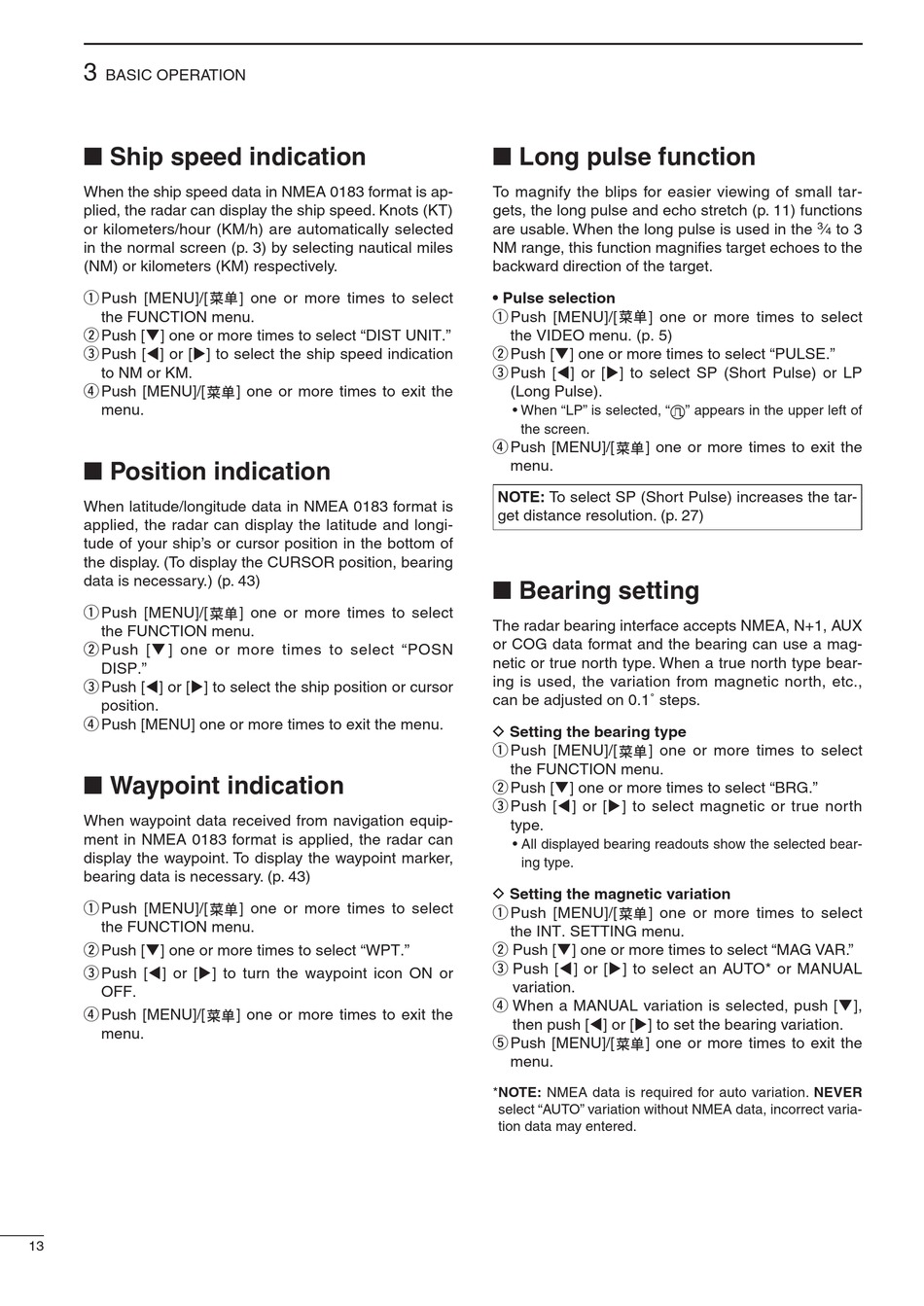

3
BASIC OPERATION

■ Ship speed indication

When the ship speed data in NMEA 0183 format is ap-
plied, the radar can display the ship speed. Knots (KT)
or kilometers/hour (KM/h) are automatically selected
in the normal screen (p. 3) by selecting nautical miles
(NM) or kilometers (KM) respectively.
q Push [MENU]/[
the FUNCTION menu.
w Push [q] one or more times to select "DIST UNIT."
e Push [t] or [u] to select the ship speed indication
to NM or KM.
r Push [MENU]/[
menu.

■ Position indication

When latitude/longitude data in NMEA 0183 format is
applied, the radar can display the latitude and longi-
tude of your ship's or cursor position in the bottom of
the display. (To display the CURSOR position, bearing
data is necessary.) (p. 43)
q Push [MENU]/[
the FUNCTION menu.
w Push [q ] one or more times to select "POSN
DISP."
e Push [t] or [u] to select the ship position or cursor
position.
r Push [MENU] one or more times to exit the menu.

■ Waypoint indication

When waypoint data received from navigation equip-
ment in NMEA 0183 format is applied, the radar can
display the waypoint. To display the waypoint marker,
bearing data is necessary. (p. 43)
q Push [MENU]/[
the FUNCTION menu.
w Push [q] one or more times to select "WPT."
e Push [t] or [u] to turn the waypoint icon ON or
OFF.
r Push [MENU]/[
menu.
13
] one or more times to select
] one or more times to exit the
] one or more times to select
] one or more times to select
] one or more times to exit the

■ Long pulse function

To magnify the blips for easier viewing of small tar-
gets, the long pulse and echo stretch (p. 11) functions
are usable. When the long pulse is used in the
NM range, this function magnifies target echoes to the
backward direction of the target.
• Pulse selection
q Push [MENU]/[ ] one or more times to select
the VIDEO menu. (p. 5)
w Push [q] one or more times to select "PULSE."
e Push [t] or [u] to select SP (Short Pulse) or LP
(Long Pulse).
• When "LP" is selected, "
the screen.
r Push [MENU]/[ ] one or more times to exit the
menu.
NOTE: To select SP (Short Pulse) increases the tar-
get distance resolution. (p. 27)

■ Bearing setting

The radar bearing interface accepts NMEA, N+1, AUX
or COG data format and the bearing can use a mag-
netic or true north type. When a true north type bear-
ing is used, the variation from magnetic north, etc.,
can be adjusted on 0.1˚ steps.
D Setting the bearing type
q Push [MENU]/[ ] one or more times to select
the FUNCTION menu.
w Push [q] one or more times to select "BRG."
e Push [t] or [u] to select magnetic or true north
type.
• All displayed bearing readouts show the selected bear-
ing type.
D Setting the magnetic variation
q Push [MENU]/[ ] one or more times to select
the INT. SETTING menu.
w Push [q] one or more times to select "MAG VAR."
e Push [t] or [u] to select an AUTO* or MANUAL
variation.
r When a MANUAL variation is selected, push [q],
then push [t] or [u] to set the bearing variation.
t Push [MENU]/[ ] one or more times to exit the
menu.
* NOTE: NMEA data is required for auto variation. NEVER
select "AUTO" variation without NMEA data, incorrect varia-
tion data may entered.
3 ⁄ to 3
4
" appears in the upper left of
